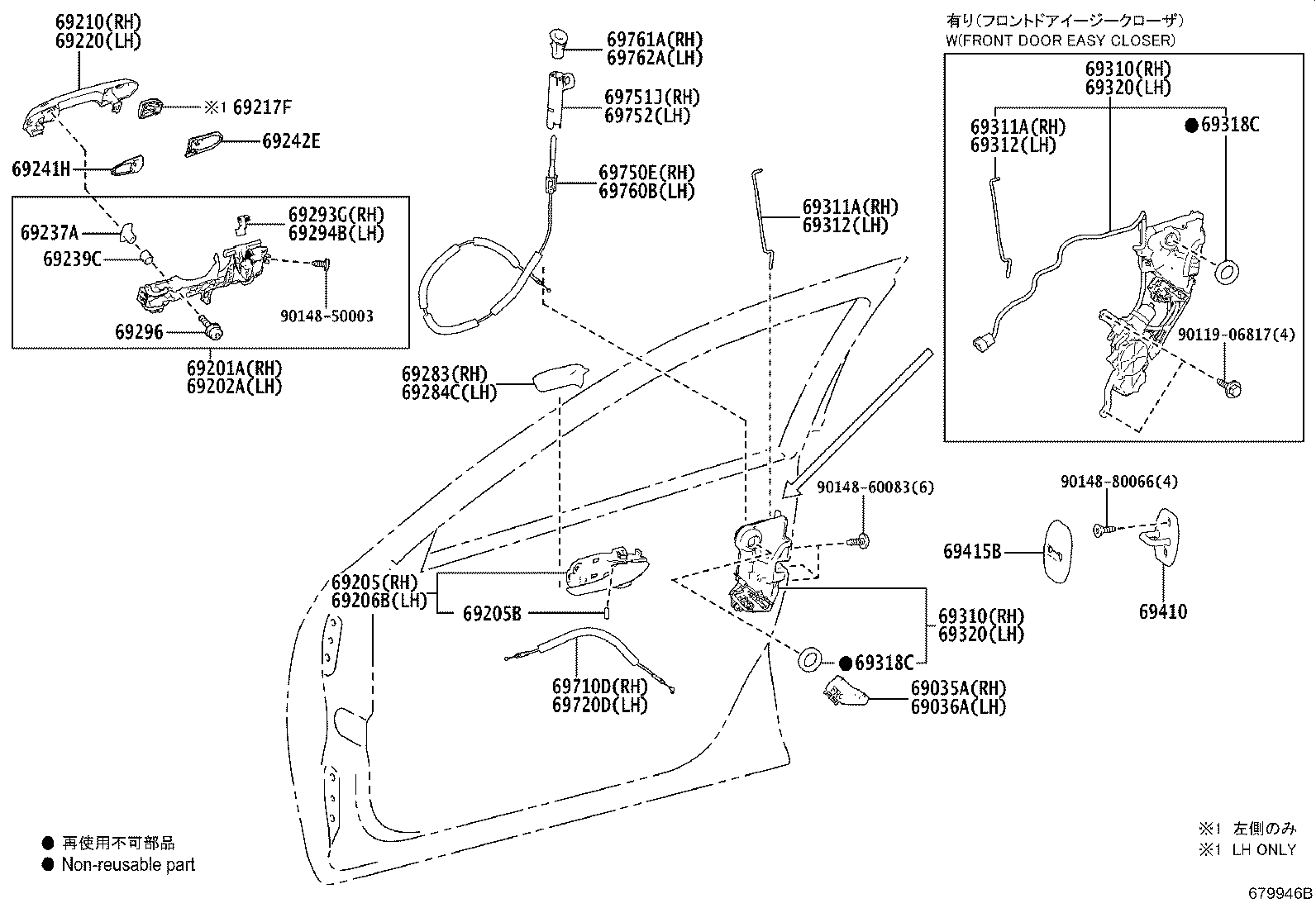

AZSH20-AEXRB (2018)
Toyota Crown/Hybrid
(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 69275-30070 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30400G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30400G0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30380G0 |
ARS220,AZSH2#,GWS224..S,SF ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30380A0 |
ARS220,AZSH2#,GWS224..B,S,SF WHITE PEARL CS.,062 |
1 | ||
| 69210-30380E0 |
ARS220,AZSH2#,GWS224..S,SF ORANGE ME.,4R8 |
1 | ||
| 69210-30380B2 |
ARS220,AZSH2#,GWS224..B,S,SF PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30380B0 |
ARS220,AZSH2#,GWS224..B,S,SF SILVER ME.,1F7 |
1 | ||
| 69210-30380J2 |
ARS220,AZSH2#,GWS224..S,SF PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30380J0 |
ARS220,AZSH2#,GWS224..B,S,SF DK.BLUE MC.,8S6 |
1 | ||
| 69210-30400E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF ORANGE ME.,4R8 |
1 | ||
| 69210-30400D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF DEEP RED M.M.,3R9 |
1 | ||
| 69210-30400B0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF SILVER ME.,1F7 |
1 | ||
| 69210-30400B2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30400C0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF BLACK,202 |
1 | ||
| 69210-30400J0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF DK.BLUE MC.,8S6 |
1 | ||
| 69210-30380C1 |
ARS220,AZSH2#,GWS224..B,S,SF PRECIOUS BLACK,219 |
1 | ||
| 69210-30380J1 |
ARS220,AZSH2#,GWS224..S,SF DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30380C0 |
ARS220,AZSH2#,GWS224..B,S,SF BLACK,202 |
1 | ||
| 69210-30380B1 |
ARS220,AZSH2#,GWS224..B,S,SF PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30400J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30400D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30380D0 |
ARS220,AZSH2#,GWS224..S,SF DEEP RED M.M.,3R9 |
1 | ||
| 69210-30380D1 |
ARS220,AZSH2#,GWS224..S,SF RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30400B1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30400C1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF PRECIOUS BLACK,219 |
1 | ||
| 69210-30400A0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF WHITE PEARL CS.,062 |
1 | ||
| 69210-30400A0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),WHITE PEARL CS.,062 |
1 | ||
| 69210-30400B1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30400B0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),SILVER ME.,1F7 |
1 | ||
| 69210-30400J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30400B2 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30400C1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PRECIOUS BLACK,219 |
1 | ||
| 69210-30400D1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30400C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,202 |
1 | ||
| 69210-30400J1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30400J2 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30400J0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),DK.BLUE MC.,8S6 |
1 | ||
| 69210-30400D0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),DEEP RED M.M.,3R9 |
1 | ||
| 69210-30400E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),ORANGE ME.,4R8 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-30140 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-30390B2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30390C0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF BLACK,202 |
1 | ||
| 69210-30370G0 |
ARS220,AZSH2#,GWS224..S,SF ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30370A0 |
ARS220,AZSH2#,GWS224..B,S,SF WHITE PEARL CS.,062 |
1 | ||
| 69210-30390G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30370B1 |
ARS220,AZSH2#,GWS224..B,S,SF PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30390B1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30390G0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30370B0 |
ARS220,AZSH2#,GWS224..B,S,SF SILVER ME.,1F7 |
1 | ||
| 69210-30370J2 |
ARS220,AZSH2#,GWS224..S,SF PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30370B2 |
ARS220,AZSH2#,GWS224..B,S,SF PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30370C0 |
ARS220,AZSH2#,GWS224..B,S,SF BLACK,202 |
1 | ||
| 69210-30370J0 |
ARS220,AZSH2#,GWS224..B,S,SF DK.BLUE MC.,8S6 |
1 | ||
| 69210-30390B0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF SILVER ME.,1F7 |
1 | ||
| 69210-30390C1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF PRECIOUS BLACK,219 |
1 | ||
| 69210-30390E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF ORANGE ME.,4R8 |
1 | ||
| 69210-30390D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30370C1 |
ARS220,AZSH2#,GWS224..B,S,SF PRECIOUS BLACK,219 |
1 | ||
| 69210-30390A0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF WHITE PEARL CS.,062 |
1 | ||
| 69210-30370E0 |
ARS220,AZSH2#,GWS224..S,SF ORANGE ME.,4R8 |
1 | ||
| 69210-30390A0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),WHITE PEARL CS.,062 |
1 | ||
| 69210-30390B2 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30370D1 |
ARS220,AZSH2#,GWS224..S,SF RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30370J1 |
ARS220,AZSH2#,GWS224..S,SF DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30390J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30390D0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),DEEP RED M.M.,3R9 |
1 | ||
| 69210-30390C1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PRECIOUS BLACK,219 |
1 | ||
| 69210-30390J0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSB,RSF DK.BLUE MC.,8S6 |
1 | ||
| 69210-30390D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF DEEP RED M.M.,3R9 |
1 | ||
| 69210-30390J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30390J0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),DK.BLUE MC.,8S6 |
1 | ||
| 69210-30390D1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30390B1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30390J2 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30390J1 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30390E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),ORANGE ME.,4R8 |
1 | ||
| 69210-30390B0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),SILVER ME.,1F7 |
1 | ||
| 69210-30390C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,202 |
1 | ||
| 69210-30370D0 |
ARS220,AZSH2#,GWS224..S,SF DEEP RED M.M.,3R9 |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-62010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-47010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-30110 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30070C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69283-30070C1 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 69283-30070E1 |
GWS224..S;ARS220,AZSH2#..B,G,GF NEUTRAL BEIGE,TRIM4# |
1 | ||
| 69283-30070E1 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
1 | ||
| 69283-30070C1 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30070C1 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 69284-30070C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69284-30070E1 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
1 | ||
| 69284-30070C1 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
1 | ||
| 69284-30070E1 |
GWS224..S;ARS220,AZSH2#..B,G,GF NEUTRAL BEIGE,TRIM4# |
1 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-33030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-33040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69296 - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-30010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-30A70 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-30A70 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-48130 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-48130 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-60020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE | ||||
| 69710-30250 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE | ||||
| 69710-30250 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK | ||||
| 69750-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69751J - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-30020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69752 - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69752-30020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK | ||||
| 69750-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69761A - BEZEL, DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-30030C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 69761-30030C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 69761-30030C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69762A - BEZEL, DOOR LOCK CONTROL KNOB, LH | ||||
| 69761-30030C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 69761-30030C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 69761-30030C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| Common parts | ||||
| 90119-06817 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
