AZSH20-AEXRB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )A25AFXS

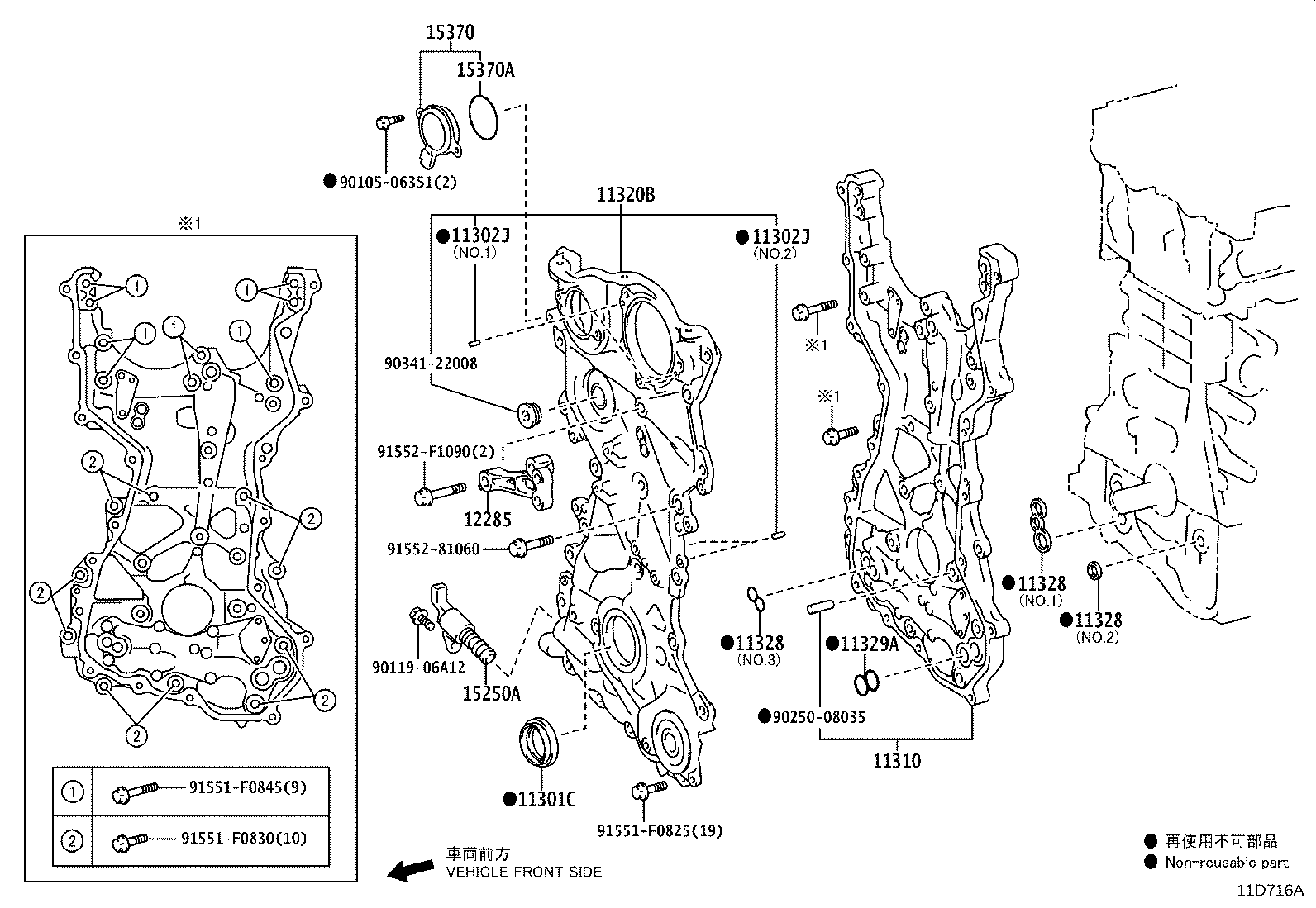

Click highlighted areas on diagram

diagram 11301C 11302J 11302J 11310 11320B 11328 11328 11328 11329A 12285 15250A 15370 15370A 9010506351 9011906A12 9025008035 9034122008 91551F0825 91551F0830 91551F0845 9155281060 91552F1090
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-40044

A25AFXS..AZSH2#

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

A25AFXS..AZSH2#

NO.1:ｲﾗｽﾄ参照

 2
90250-06003

A25AFXS..AZSH2#

NO.2:ｲﾗｽﾄ参照

 2
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

A25AFXS..AZSH2#

NO.1:ｲﾗｽﾄ参照

 2
90250-06003

A25AFXS..AZSH2#

NO.2:ｲﾗｽﾄ参照

 2
11310 - COVER ASSY, TIMING CHAIN
11310-25040

A25AFXS..AZSH2#

 1
11320B - COVER ASSY, TIMING CHAIN, NO.2
11320-25020

A25AFXS..AZSH2#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11315-25010

A25AFXS..AZSH2#

NO.1:ｲﾗｽﾄ参照

 1
11328-25020

A25AFXS..AZSH2#

NO.2:ｲﾗｽﾄ参照

 1
11316-25010

A25AFXS..AZSH2#

NO.3:ｲﾗｽﾄ参照

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11315-25010

A25AFXS..AZSH2#

NO.1:ｲﾗｽﾄ参照

 1
11328-25020

A25AFXS..AZSH2#

NO.2:ｲﾗｽﾄ参照

 1
11316-25010

A25AFXS..AZSH2#

NO.3:ｲﾗｽﾄ参照

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11315-25010

A25AFXS..AZSH2#

NO.1:ｲﾗｽﾄ参照

 1
11328-25020

A25AFXS..AZSH2#

NO.2:ｲﾗｽﾄ参照

 1
11316-25010

A25AFXS..AZSH2#

NO.3:ｲﾗｽﾄ参照

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-25010

A25AFXS..AZSH2#

 1
12285 - BRACKET, ENGINE HANGER
12285-25010

A25AFXS..AZSH2#

 1
15250A - VALVE ASSY, OIL PRESSURE CONTROL
15250-25010

A25AFXS..AZSH2#

 1
15370 - SOLENOID ASSY, CAM TIMING OIL CONTROL
15370-25020

A25AFXS..AZSH2#

 1
15370A - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
90301-44006

A25AFXS..AZSH2#

 1
Common parts
90105-06351
90119-06A12
90250-08035
90341-22008
91551-F0825
91551-F0830
91551-F0845
91552-81060
91552-F1090
