AZSH20-AEXRB (2020)

Toyota Crown/Hybrid

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

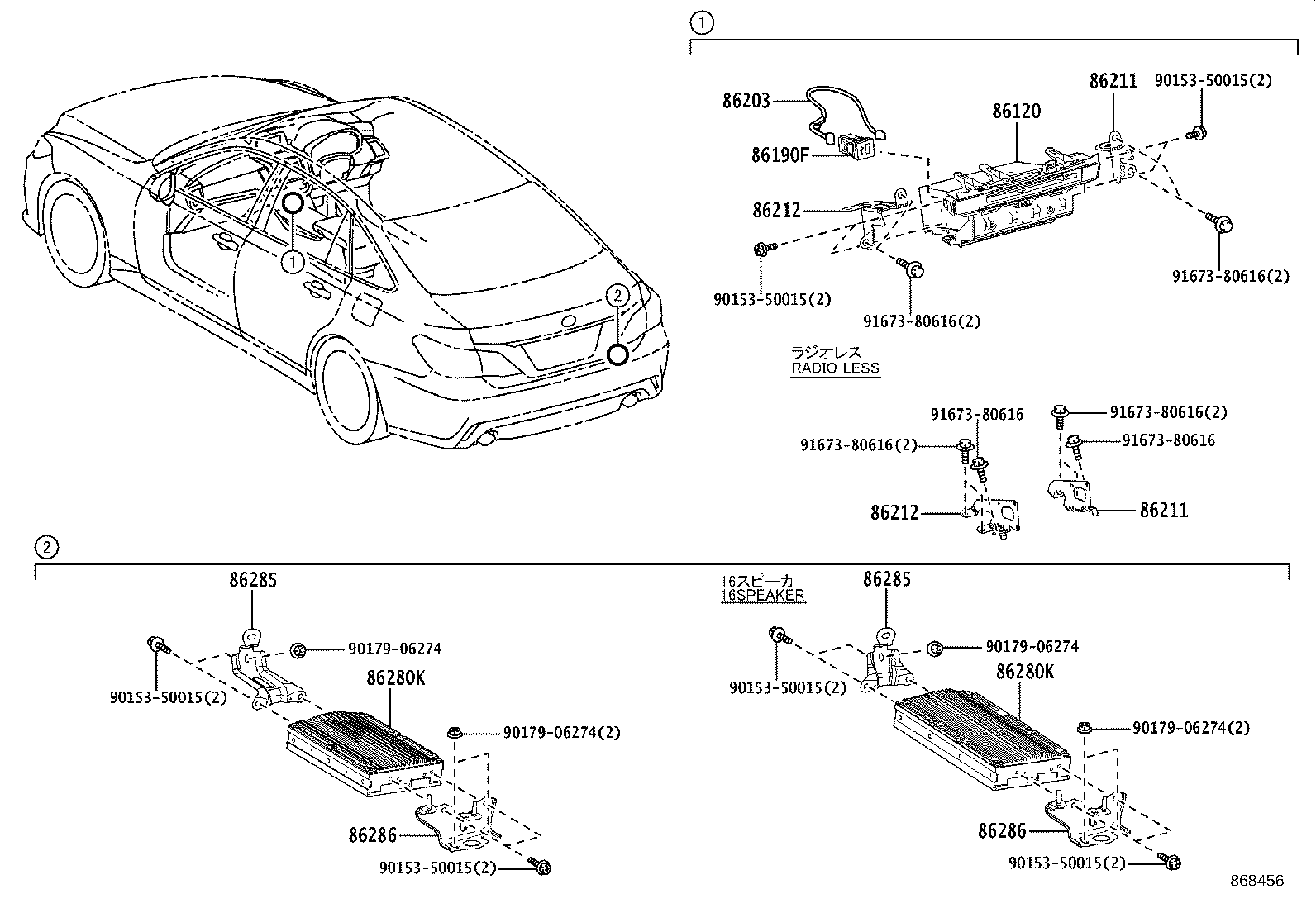

ILLUST NO. 1 OF 2(2011- )

Click highlighted areas on diagram

diagram 86120 86190F 86203 86211 86211 86212 86212 86280K 86280K 86285 86285 86286 86286 9015350015 9015350015 9015350015 9015350015 9015350015 9015350015 9017906274 9017906274 9017906274 9017906274 9167380616 9167380616 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-30P30

ARS220,AZSH2#,GWS224

PANASONIC

 1
86120-30P30

AZSH21..RSB;AZSH20..B,RSB

PANASONIC,ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86190F - ADAPTER ASSY, STEREO JACK
86190-52070

ARS220,AZSH2#,GWS224

 1
86190-52070

AZSH21..RSB;AZSH20..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ

 1
86203 - WIRE, RADIO
86203-30740

AZSH21..RSB;AZSH20..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ

 1
86203-30740

ARS220,AZSH2#,GWS224

 1
86211 - BRACKET, RADIO, NO.1
86211-30470

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86211-30460

ARS220,AZSH2#,GWS224

 1
86211 - BRACKET, RADIO, NO.1
86211-30470

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86211-30460

ARS220,AZSH2#,GWS224

 1
86212 - BRACKET, RADIO, NO.2
86212-30420

ARS220,AZSH2#,GWS224

 1
86212-30430

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86212 - BRACKET, RADIO, NO.2
86212-30420

ARS220,AZSH2#,GWS224

 1
86212-30430

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-30A00

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86280-30A00

AZSH2#..B,RSB

 1
86280-30880

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
86280K - AMPLIFIER ASSY, STEREO COMPONENT
86280-30A00

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86280-30A00

AZSH2#..B,RSB

 1
86280-30880

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-30400

ARS220,AZSH2#,GWS224

 1
86285-30400

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-30400

ARS220,AZSH2#,GWS224

 1
86285-30400

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-30150

ARS220,AZSH2#,GWS224

 1
86286-30150

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-30150

ARS220,AZSH2#,GWS224

 1
86286-30150

AZSH2#..B,RSB

ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ

 1
Common parts
90153-50015
90179-06274
91673-80616
