AZSH20-AEXRB (2020)

Toyota Crown/Hybrid

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2011- )

Click highlighted areas on diagram

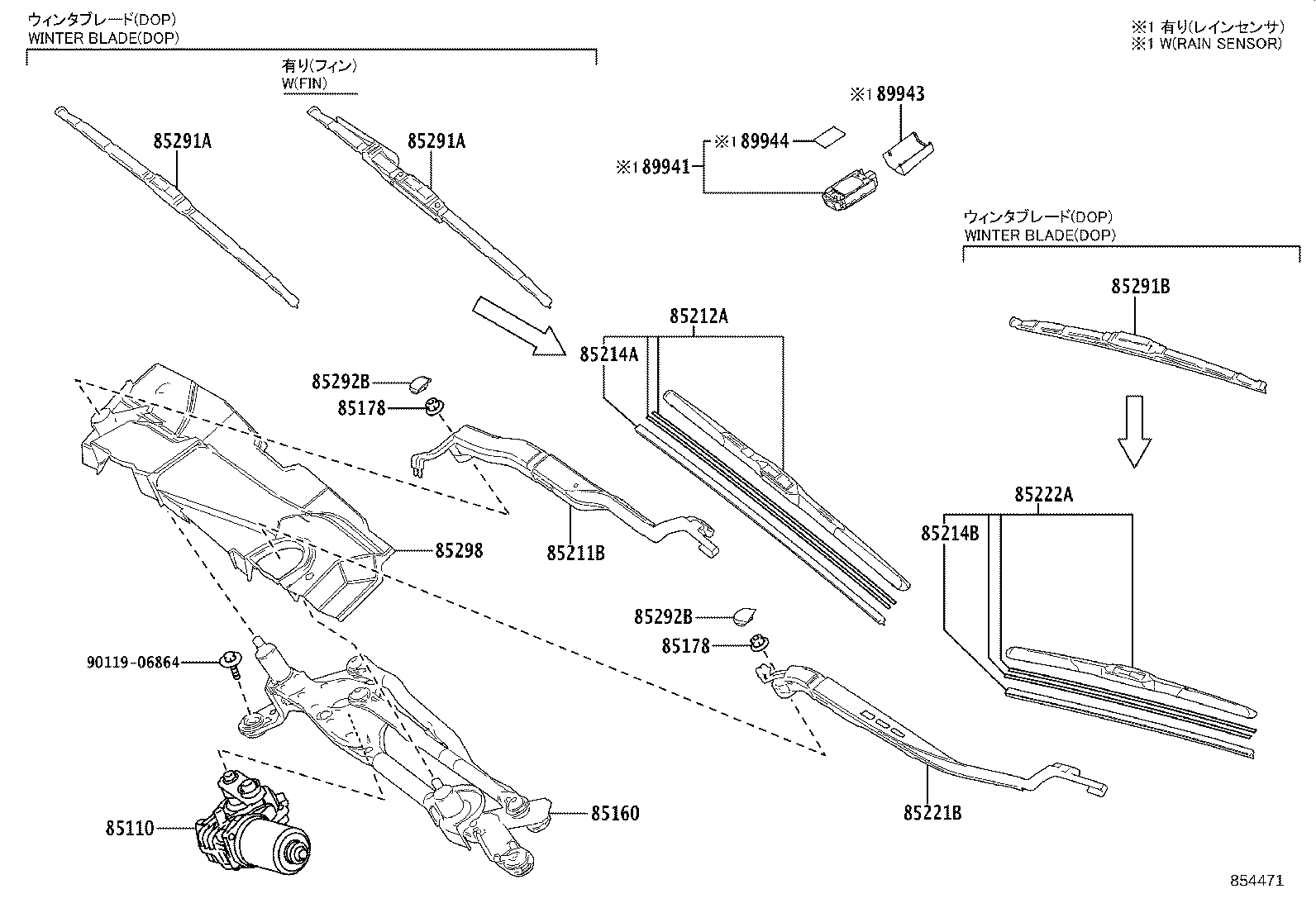

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 85298 89941 89943 89944 9011906864
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-30731

ARS220,AZSH2#,GWS224

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-30780

ARS220,AZSH2#,GWS224

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ARS220,AZSH2#,GWS224

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90182-10006

ARS220,AZSH2#,GWS224

 2
85211B - ARM, FRONT WIPER, RH
85211-30830

ARS220,AZSH2#,GWS224

 1
85212A - BLADE, FR WIPER, RH
85212-30420

ARS220,AZSH2#,GWS224

 1
85214A - RUBBER, WIPER, RH
85214-30380

ARS220,AZSH2#,GWS224

 1
85214B - RUBBER, WIPER, LH
85214-33180

ARS220,AZSH2#,GWS224

 1
85221B - ARM, FRONT WIPER, LH
85221-30720

ARS220,AZSH2#,GWS224

 1
85222A - BLADE, FR WIPER, LH
85222-30600

ARS220,AZSH2#,GWS224

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-30080

ARS220,AZSH2#,GWS224

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-53110

ARS220,AZSH2#,GWS224

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-30080

ARS220,AZSH2#,GWS224

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP),有り(ﾌｨﾝ)

 1
85291-53110

ARS220,AZSH2#,GWS224

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-33050

ARS220,AZSH2#,GWS224

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ARS220,AZSH2#,GWS224

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ARS220,AZSH2#,GWS224

 2
85298 - COVER, WIPER MOTOR
85111-30310

ARS220,AZSH2#,GWS224

 1
89941 - SENSOR, RAIN
89941-30040

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
89943 - COVER, RAIN SENSOR
89943-76020

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
89944 - TAPE, RAIN SENSOR
89944-42020

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
Common parts
90119-06864
