AZSH20-AEXRB (2020)

Toyota Crown/Hybrid

Production Nov 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

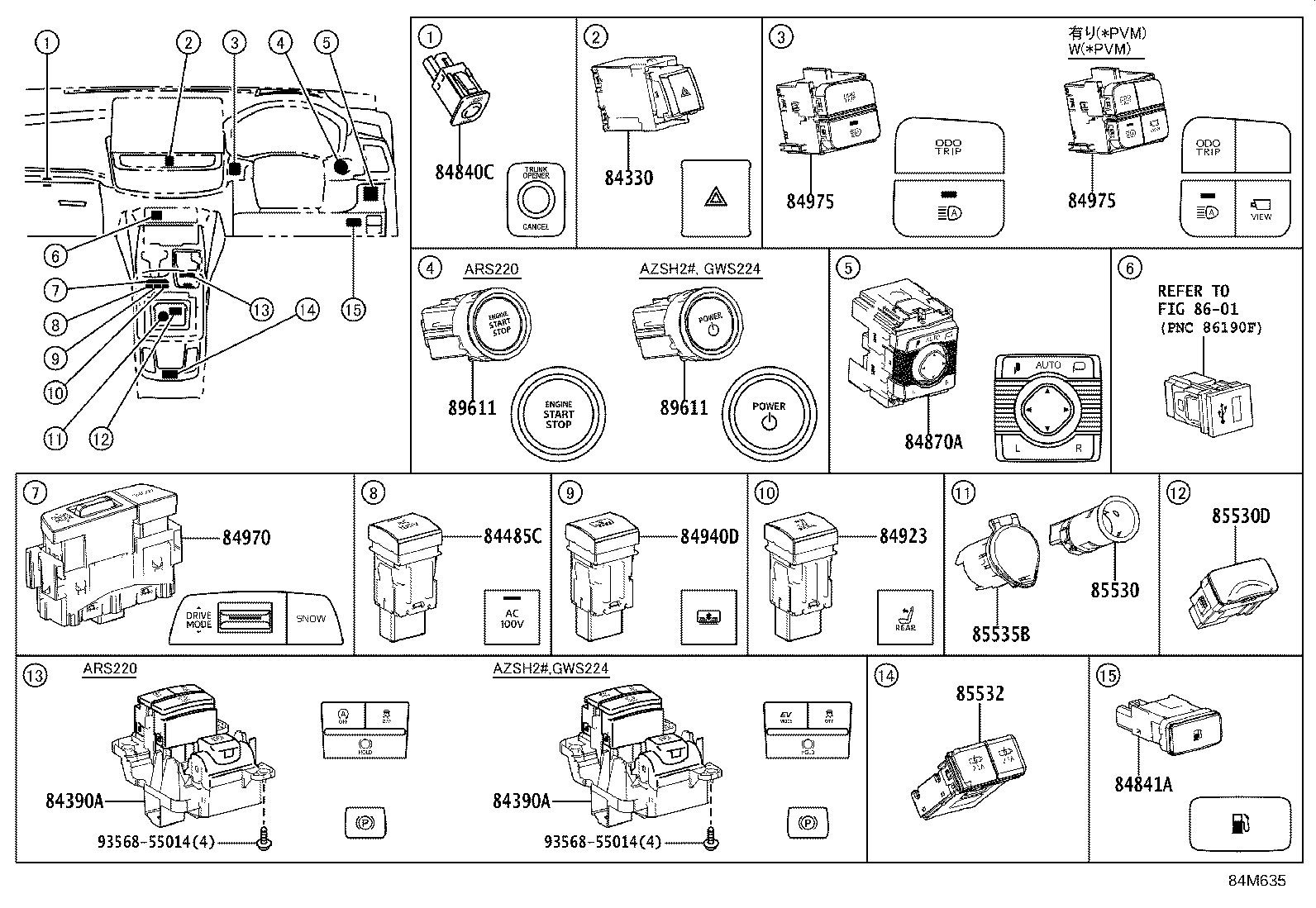

ILLUST NO. 5 OF10(2011- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ

diagram 84330 84390A 84390A 84485C 84840C 84841A 84870A 84923 84940D 84970 84975 84975 85530 85530D 85532 85535B 8601 89611 89611 9356855014 9356855014
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-30350

ARS220,AZSH2#,GWS224

 1
84390A - SWITCH ASSY, BRAKE WARNING
84390-30080

AZSH2#,GWS224

 1
84390A - SWITCH ASSY, BRAKE WARNING
84390-30080

AZSH2#,GWS224

 1
84485C - SWITCH, POWER OUTLET
84485-33010

AZSH2#,GWS224

ｱｸｾｻﾘｺﾈｸﾀ−有り(12V,USB2個,100V1500W)

 1
84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL
84840-30270

ARS220,AZSH2#,GWS224

 1
84841A - SWITCH, FUEL LID OPENER
84841-48010

ARS220,AZSH2#,GWS224

 1
84870A - SWITCH ASSY, OUTER MIRROR
84872-30100

AZSH2#..B,RSB

ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り(*ARFHL)

 1
84872-30100

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF

 1
84872-30090

AZSH2#..B,RSB

 1
84940D - SWITCH ASSY, REAR SUN SHADE
84940-30030

ARS220,AZSH2#..RS,RSF,S,SF

ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)

 1
84970 - SWITCH ASSY, COMBINATION
84970-30420

ARS220,AZSH2#,GWS224

 1
84975 - SWITCH, TRIP
84975-30150

ARS220,AZSH2#,GWS224

ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)

 1
84975-30130

ARS220,AZSH2#,GWS224

 1
84975 - SWITCH, TRIP
84975-30150

ARS220,AZSH2#,GWS224

ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ)

 1
84975-30130

ARS220,AZSH2#,GWS224

 1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-42010

ARS220,AZSH2#,GWS224

 1
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-30070C0

AZSH2#,GWS224

ｱｸｾｻﾘｺﾈｸﾀ−有り(12V,USB2個,100V1500W),BLACK

 1
85532 - SOCKET, USB CHARGER
85532-33020

ARS220,AZSH2#,GWS224

 1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-30020

ARS220,AZSH2#,GWS224

 1
89611 - SWITCH, PUSH START
89611-30142

AZSH2#,GWS224

 1
89611 - SWITCH, PUSH START
89611-30142

AZSH2#,GWS224

 1
Common parts
93568-55014
Linked diagrams
8601
