AZSH20-AEXRB (2020)
Toyota Crown/Hybrid

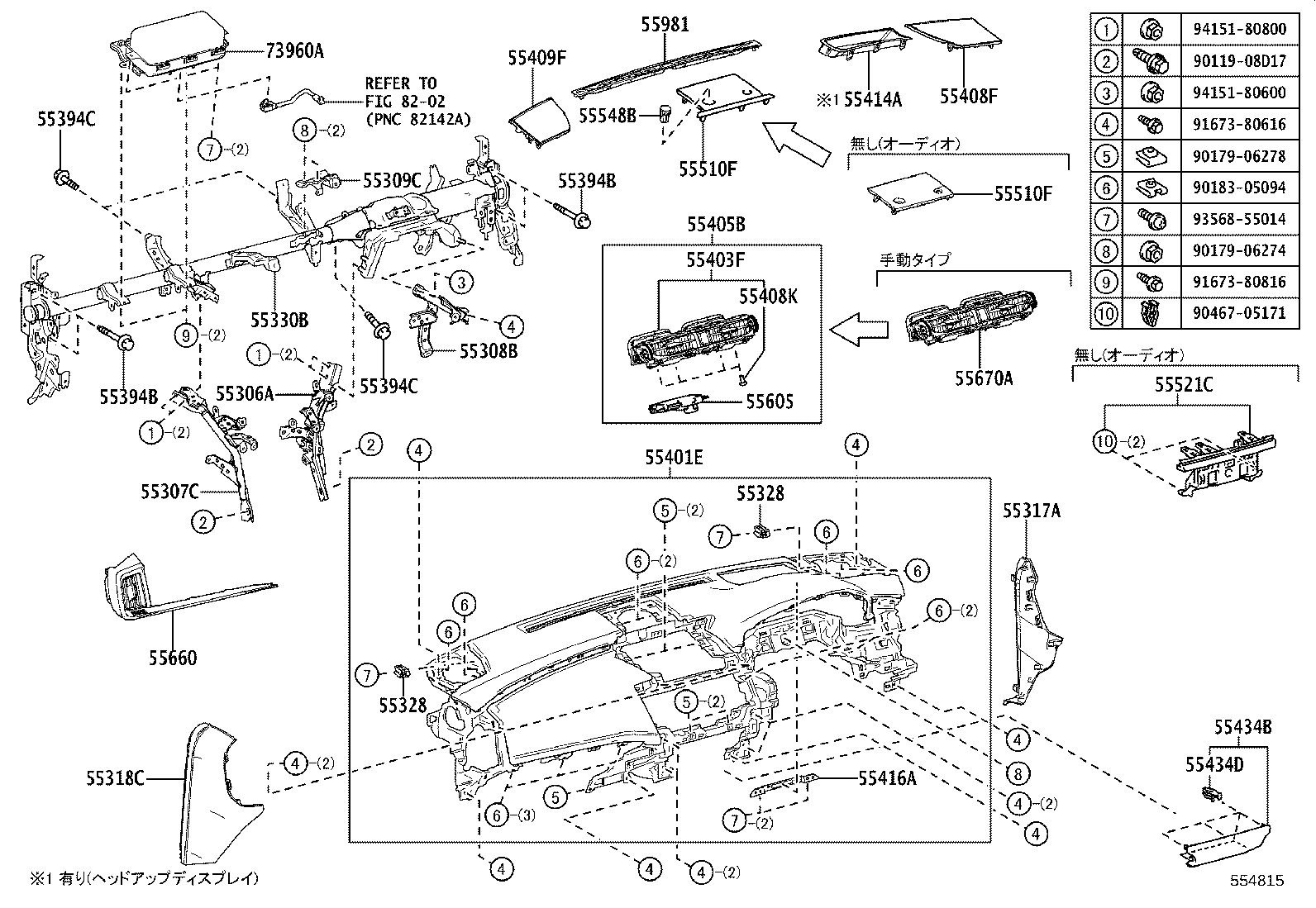

ILLUST NO. 1 OF 2(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-30340 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-30340 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55308B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3 | ||||
| 55308-30240 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55309-30050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-30100C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55317-30100C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-30120C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55318-30120C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-30460 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 90105-08473 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 90105-08406 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| 90105-08406 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55400-30260C2 |
ARS220,AZSH2#..RS,RSF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK/BLACK/GRAY,TRIM20,22 |
1 | ||
| 55400-30260C0 |
AZSH2#..B,RSB,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 55400-30260C3 |
AZSH2#..S,SF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK/BLACK/BROWN,TRIM4# |
1 | ||
| 55400-30250C2 |
ARS220,AZSH2#..RS,RSF BLACK/BLACK/GRAY,TRIM20,22 |
1 | ||
| 55400-30250C3 |
AZSH2#..S,SF BLACK/BLACK/BROWN,TRIM4# |
1 | ||
| 55400-30260C1 |
ARS220,AZSH2#..RS,RSF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK/BLACK/RED,TRIM21 |
1 | ||
| 55400-30250C0 |
AZSH2#..B,RSB,S,SF BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 55400-30250C4 |
AZSH2#..S,SF BLACK/BROWN/GRAY,TRIM1# |
1 | ||
| 55400-30250C3 |
AZSH2#..S,SF BLACK/BLACK/BROWN,TRIM40 |
1 | ||
| 55400-30260C3 |
AZSH2#..S,SF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK/BLACK/BROWN,TRIM40 |
1 | ||
| 55400-30260C5 |
AZSH2#..S,SF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK/BROWN/GRAY,TRIM1# |
1 | ||
| 55400-30250C1 |
ARS220,AZSH2#..RS,RSF BLACK/BLACK/RED,TRIM21 |
1 | ||
| 55400-30250C5 |
AZSH2#..S,SF BLACK/SOFT BLACK/BROWN,TRIM41 |
1 | ||
| 55400-30260C6 |
AZSH2#..S,SF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ),BLACK/SOFT BLACK/BROWN,TRIM41 |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-30060 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-30520 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30350 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55408K - SCREW SUB-ASSY, INSTRUMENT CLUSTER FINISH END | ||||
| 55408-30450 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-30350 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55414A - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-30260 |
ARS220,AZSH2#..B,RS,RSB,RSF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30210 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-30100C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM2# |
1 | ||
| 55434-30100B0 |
AZSH2#..S,SF DK.GRAY,TRIM1#,2#,4# |
1 | ||
| 55434-30100B1 |
ARS220,AZSH2#..RS,RSF METAL SILVER,TRIM22 |
1 | ||
| 55434-30100B0 |
AZSH2#..S,SF DK.GRAY,TRIM1#,2#,40 |
1 | ||
| 55434-30100B0 |
AZSH2#..B DK.GRAY,TRIM2# |
1 | ||
| 55434-30100E1 |
AZSH2#..S,SF BROWN WOOD,TRIM41 |
1 | ||
| 55434-30100C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM20,21 |
1 | ||
| 55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 90467-05171 |
ARS220,AZSH2#,GWS224 |
5 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-30250 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−無し |
1 | ||
| 55510-30260 |
AZSH2#..B,RSB |
1 | ||
| 55510-30160 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-30250 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ&EMV&ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ−無し |
1 | ||
| 55510-30260 |
AZSH2#..B,RSB |
1 | ||
| 55510-30160 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-30200C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ,BLACK,TRIM2# |
1 | ||
| 55548B - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-26030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55548-26030 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ETC−有り(ETC2.0) |
1 | ||
| 55605 - MOTOR SUB-ASSY, SWING REGISTER | ||||
| 55605-30030 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30550 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-30630 |
AZSH2#..B,RSB |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-30120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90179-06274 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

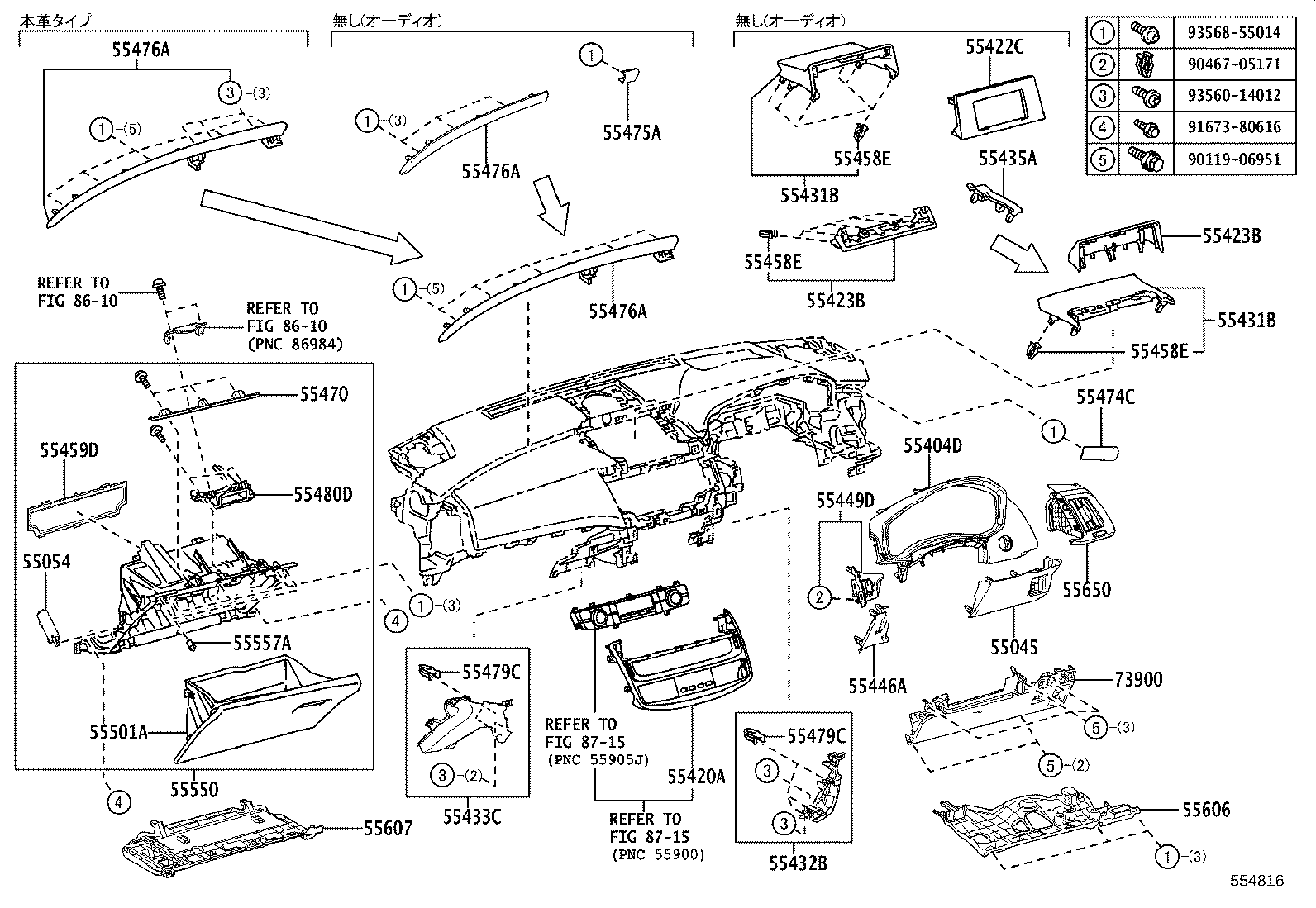

ILLUST NO. 2 OF 2(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-30220C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55045-30220C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-30B90E1 |
AZSH2#..G,GF,S,SF ORCHID BROWN,TRIM1# |
1 | ||
| 55404-30B90C7 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55404-30B90C7 |
AZSH2#..G,GF,S,SF BLACK,TRIM2#,4# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-30190 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-30200 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
1 | ||
| 55423-30190 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55423B - COVER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55423-30200 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
1 | ||
| 55423-30190 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-30410C0 |
AZSH2#..G,GF,S,SF BLACK,TRIM2#,4# |
1 | ||
| 55431-30410E0 |
AZSH2#..G,GF,S,SF ORCHID BROWN,TRIM1# |
1 | ||
| 55431-30420 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
1 | ||
| 55431-30410C0 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55431B - PANEL, INSTRUMENT PANEL FINISH, UPPER | ||||
| 55431-30410C0 |
AZSH2#..G,GF,S,SF BLACK,TRIM2#,4# |
1 | ||
| 55431-30410E0 |
AZSH2#..G,GF,S,SF ORCHID BROWN,TRIM1# |
1 | ||
| 55431-30420 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
1 | ||
| 55431-30410C0 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-30490C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55432-30490C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55433-30330C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55433-30330C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30380C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ,BLACK,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-30280C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55446-30280C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55449D - BASE, SWITCH | ||||
| 55449-30140C0 |
AZSH2#..G,GF,S,SF BLACK,TRIM2#,4# |
1 | ||
| 55449-30140C0 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55449-30140E0 |
AZSH2#..G,GF,S,SF ORCHID BROWN,TRIM1# |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-05172 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
11 | ||
| 90467-05171 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-05172 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
11 | ||
| 90467-05171 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-05172 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ |
11 | ||
| 90467-05171 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-30070 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-30220 |
ARS220,AZSH2#..B,RS,RSB,RSF,S,SF |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-30480B0 |
AZSH2#..G,GF,S,SF LT.GRAY,TRIM1# |
1 | ||
| 55474-30480C1 |
ARS220,AZSH2#,GWS224..B,G,GF,RSADF,RSADV,RSB,S,SF BLACK,TRIM2# |
1 | ||
| 55474-30480B1 |
ARS220,AZSH2#..RS,RSF DK.GRAY,TRIM22 |
1 | ||
| 55474-30480C1 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM20,21 |
1 | ||
| 55474-30480C1 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM2# |
1 | ||
| 55474-30480E2 |
AZSH2#..S,SF KOGANE LIGHT,TRIM40 |
1 | ||
| 55474-30480E3 |
AZSH2#..S,SF KOHAKU,TRIM41 |
1 | ||
| 55474-30480E2 |
AZSH2#..S,SF KOGANE LIGHT,TRIM4# |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-30340C1 |
AZSH2#..B,RSB ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ,BLACK,TRIM2# |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-30320B0 |
AZSH2#..G,GF,S,SF LT.GRAY,TRIM1# |
1 | ||
| 55476-30320E0 |
AZSH2#..S,SF KOGANE LIGHT,TRIM4# |
1 | ||
| 55476-30320E0 |
AZSH2#..S,SF KOGANE LIGHT,TRIM40 |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#,GWS224..B,G,GF,RSADF,RSADV,RSB,S,SF BLACK,TRIM2# |
1 | ||
| 55476-30380C1 |
AZSH2#..B,RSB ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ,BLACK,TRIM2# |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM20,21 |
1 | ||
| 55476-30320B1 |
ARS220,AZSH2#..RS,RSF DK.GRAY,TRIM22 |
1 | ||
| 55476-30320E1 |
AZSH2#..S,SF KOHAKU,TRIM41 |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM2# |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-30320B0 |
AZSH2#..G,GF,S,SF LT.GRAY,TRIM1# |
1 | ||
| 55476-30320E0 |
AZSH2#..S,SF KOGANE LIGHT,TRIM4# |
1 | ||
| 55476-30320E0 |
AZSH2#..S,SF KOGANE LIGHT,TRIM40 |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#,GWS224..B,G,GF,RSADF,RSADV,RSB,S,SF BLACK,TRIM2# |
1 | ||
| 55476-30380C1 |
AZSH2#..B,RSB ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ,BLACK,TRIM2# |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM20,21 |
1 | ||
| 55476-30320B1 |
ARS220,AZSH2#..RS,RSF DK.GRAY,TRIM22 |
1 | ||
| 55476-30320E1 |
AZSH2#..S,SF KOHAKU,TRIM41 |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM2# |
1 | ||
| 55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3 | ||||
| 55476-30320B0 |
AZSH2#..G,GF,S,SF LT.GRAY,TRIM1# |
1 | ||
| 55476-30320E0 |
AZSH2#..S,SF KOGANE LIGHT,TRIM4# |
1 | ||
| 55476-30320E0 |
AZSH2#..S,SF KOGANE LIGHT,TRIM40 |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#,GWS224..B,G,GF,RSADF,RSADV,RSB,S,SF BLACK,TRIM2# |
1 | ||
| 55476-30380C1 |
AZSH2#..B,RSB ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ,6ｽﾋﾟｰｶ,BLACK,TRIM2# |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM20,21 |
1 | ||
| 55476-30320B1 |
ARS220,AZSH2#..RS,RSF DK.GRAY,TRIM22 |
1 | ||
| 55476-30320E1 |
AZSH2#..S,SF KOHAKU,TRIM41 |
1 | ||
| 55476-30320C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM2# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-05171 |
ARS220,AZSH2#,GWS224 |
5 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-05171 |
ARS220,AZSH2#,GWS224 |
5 | ||
| 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR | ||||
| 55480-30080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-30270C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55501-30270C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30470C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 55550-30470C0 |
AZSH2#..S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30280 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30380 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30520 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-30090C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
1 | ||
| 73900-30090C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-05171 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8610 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
