AZSH20-AEXRB (2020)
Toyota Crown/Hybrid

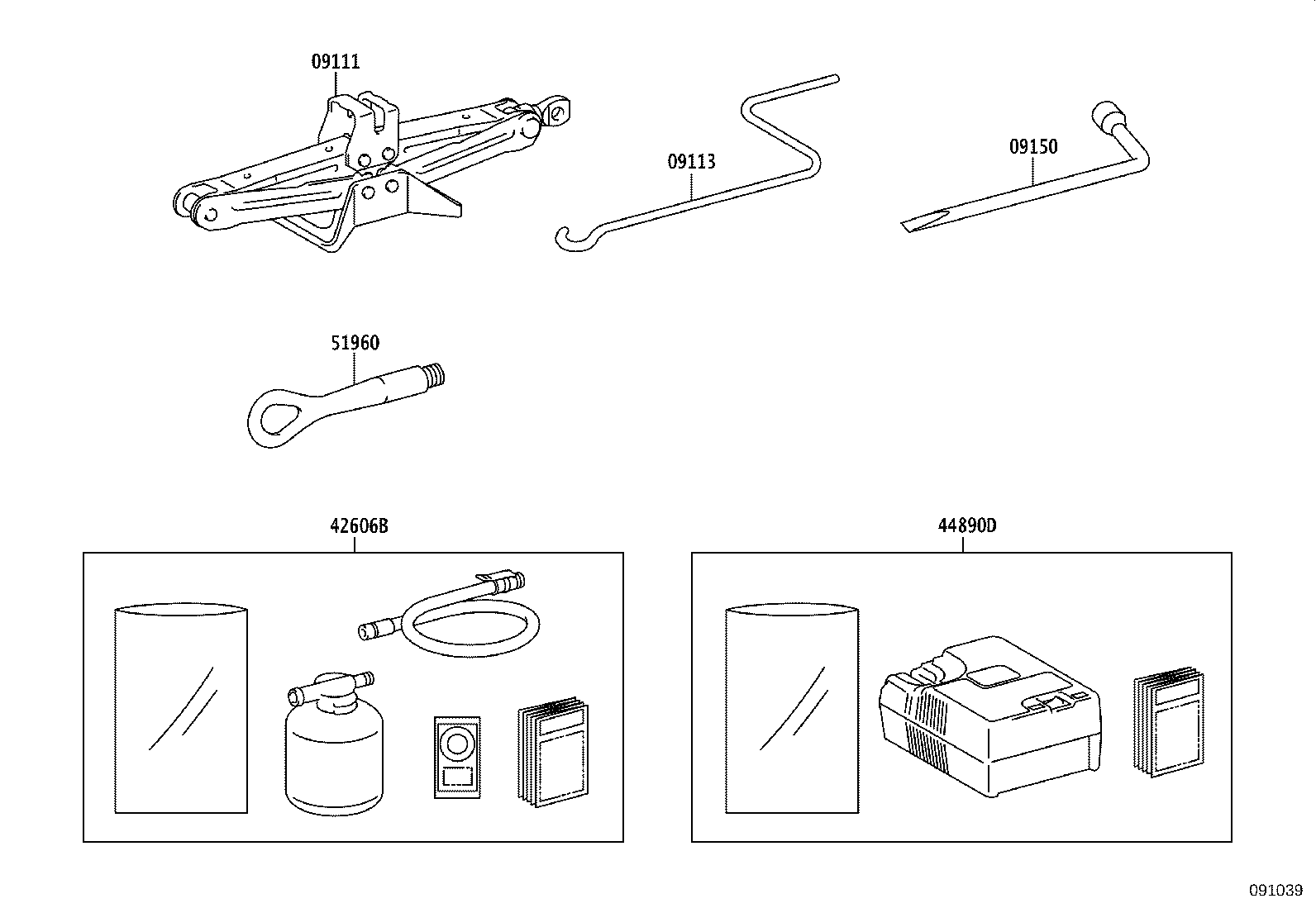

ILLUST NO. 1 OF 2(2011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09111 - JACK SUB-ASSY | ||||
| 09111-50140 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09111-50140 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-30060 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09113-30060 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
ARS220,AZSH2#,GWS224 ｼﾞｬｯｷ−有り(DOP)&ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09150-40010 |
ARS220,AZSH2#,GWS224 ｼﾞｬｯｷ−有り(DOP)&ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 42606B - REPAIR KIT, TUBELESS TIRE | ||||
| 42606-30011 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 44890D - COMPRESSOR ASSY, AIR | ||||
| 44890-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 44890-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 51960 - HOOK ASSY, FRONT | ||||
| 51961-11030 |
ARS220,AZSH2#,GWS224 |
1 | ||

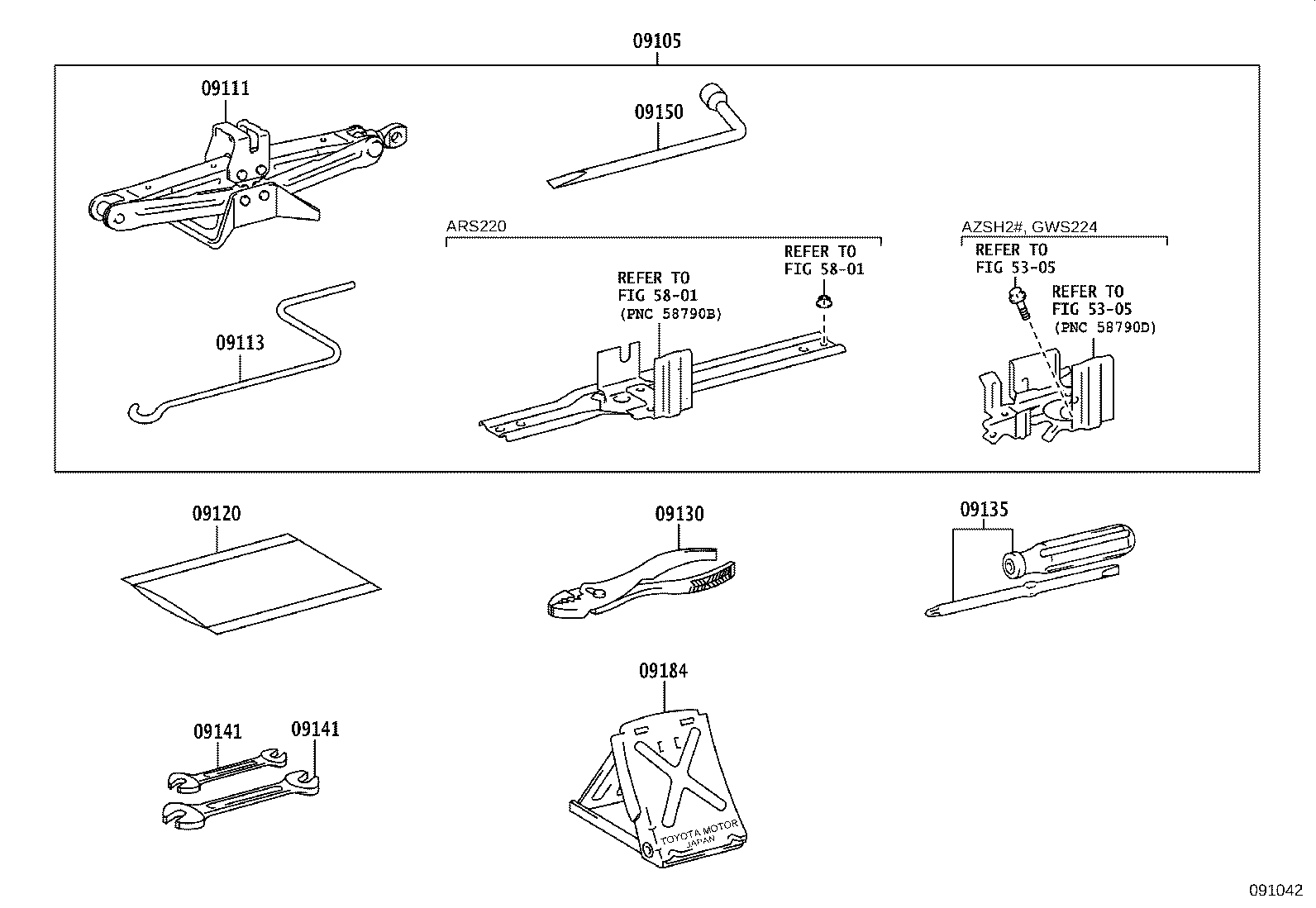

ILLUST NO. 2 OF 2(2011- )
DOP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09105 - BOX SET, JACK | ||||
| 09105-30010 |
AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09105-30010 |
AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09111 - JACK SUB-ASSY | ||||
| 09111-50140 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09111-50140 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-30060 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09113-30060 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-28040 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 09120-28040 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 99913-11500 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 99915-10700 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
ARS220,AZSH2#,GWS224 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄCﾎﾞﾙﾄ |
1 | ||
| 99914-11214 |
ARS220,AZSH2#,GWS224 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 99914-10810 |
ARS220,AZSH2#,GWS224 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,{ﾙﾄ |
1 | ||
| 99914-10810 |
ARS220,AZSH2#,GWS224 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
ARS220,AZSH2#,GWS224 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄCﾎﾞﾙﾄ |
1 | ||
| 99914-11214 |
ARS220,AZSH2#,GWS224 12 X 14,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 99914-10810 |
ARS220,AZSH2#,GWS224 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,{ﾙﾄ |
1 | ||
| 99914-10810 |
ARS220,AZSH2#,GWS224 8 X 10,ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-40010 |
ARS220,AZSH2#,GWS224 ｼﾞｬｯｷ−有り(DOP)&ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−ﾊﾝﾄﾞﾙ,ﾚﾝﾁ,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09150-40010 |
ARS220,AZSH2#,GWS224 ｼﾞｬｯｷ−有り(DOP)&ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
ARS220,AZSH2#,GWS224 ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*SPSD&輪止め |
1 | ||
| 09184-00010 |
ARS220,AZSH2#,GWS224 ｼﾞｬｯｷ−有り(DOP)&ﾂｰﾙ(ﾃﾞｨｰﾗｰ装着)−*HJDSP&輪止め,ｼﾞｬｯｷﾌﾞﾗｹｯﾄ,ﾎﾞﾙﾄ |
1 | ||
| Linked diagrams | ||||
| 5305 | ||||
| 5801 | ||||
