AZSH20-AEXMB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )AZSH2#

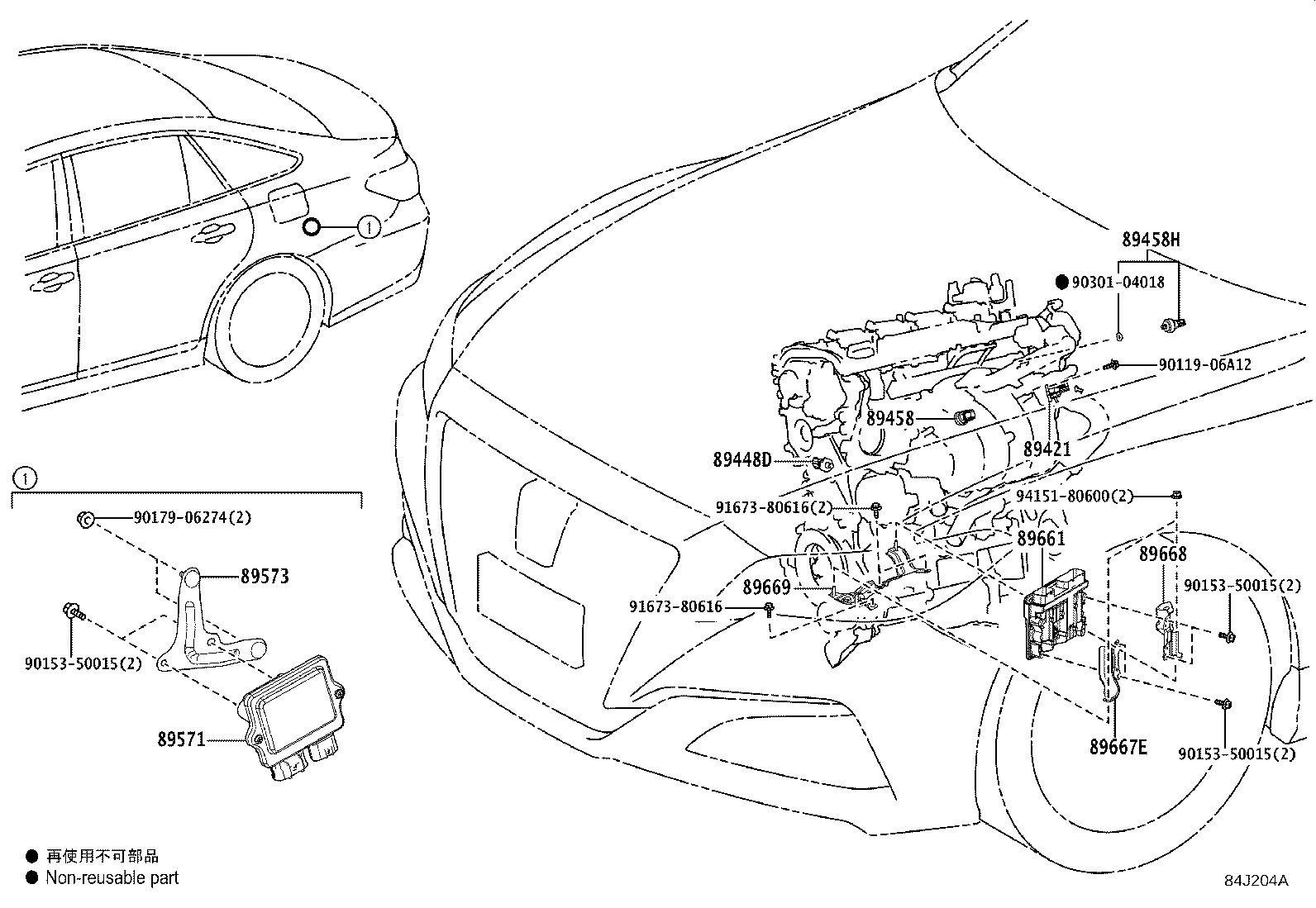

Click highlighted areas on diagram

diagram 89421 89448D 89458 89458H 89571 89573 89661 89667E 89668 89669 9011906A12 9015350015 9015350015 9015350015 9017906274 9030104018 9167380616 9167380616 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-33010

AZSH2#

 1
89448D - SENSOR, OIL PRESSURE & TEMPERATURE
89448-33010

AZSH2#

 1
89458 - SENSOR, FUEL PRESSURE
89458-33030

AZSH2#

 1
89458H - SENSOR, FUEL PRESSURE, NO.2
89458-33041

AZSH2#

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-42010

AZSH2#

 1
89571-33030

AZSH2#

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-30130

ARS220,AZSH2#,GWS224

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3AF20

AZSH2#

DENSO

 1
89661-30Y30

AZSH2#

DENSO

 1
89661-3AF21

AZSH2#

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-30320

AZSH2#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-30260

AZSH2#

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-30180

AZSH2#,GWS224

 1
Common parts
90119-06A12
90153-50015
90179-06274
90301-04018
91673-80616
94151-80600
