AZSH20-AEXMB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

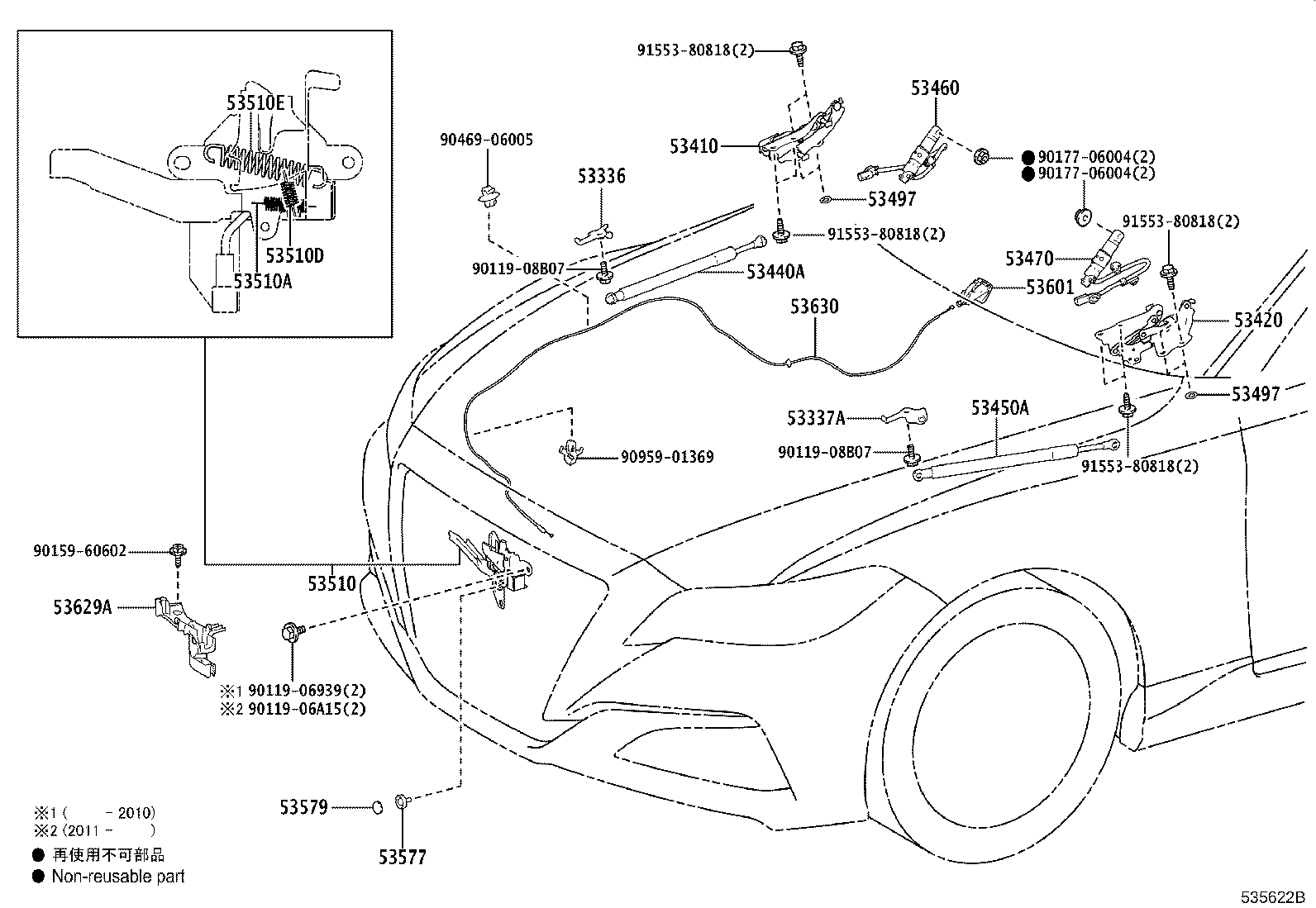

Click highlighted areas on diagram

diagram 53336 53337A 53410 53420 53440A 53450A 53460 53470 53497 53497 53510 53510A 53510D 53510E 53577 53579 53601 53629A 53630 9011906939 9011906A15 9011908B07 9011908B07 9015960602 9017706004 9017706004 9046906005 9095901369 9155380818 9155380818 9155380818 9155380818
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-30080

ARS220,AZSH2#,GWS224

 1
53337A - BRACKET, HOOD STAY, LH
53337-30060

ARS220,AZSH2#,GWS224

 1
53410 - HINGE ASSY, HOOD, RH
53410-30310

ARS220,AZSH2#,GWS224

 1
53420 - HINGE ASSY, HOOD, LH
53420-30320

ARS220,AZSH2#,GWS224

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0W460

ARS220,AZSH2#,GWS224

 1
53450A - SUPPORT ASSY, HOOD, LH
53440-0W460

ARS220,AZSH2#,GWS224

 1
53460 - LIFTER ASSY, POP UP HOOD, RH
53460-30140

ARS220,AZSH2#,GWS224

 1
53470 - LIFTER ASSY, POP UP HOOD, LH
53460-30140

ARS220,AZSH2#,GWS224

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

ARS220,AZSH2#,GWS224

厚さ=1.0

 2
53497 - PAD, HOOD HINGE, NO.1
53497-50020

ARS220,AZSH2#,GWS224

厚さ=1.0

 2
53510 - LOCK ASSY, HOOD
53510-30390

ARS220,AZSH2#,GWS224

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

ARS220,AZSH2#,GWS224

線径=0.9,ｺｲﾙ巻数=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

ARS220,AZSH2#,GWS224

線径=1.2,ｺｲﾙ巻数=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

ARS220,AZSH2#,GWS224

線径=1.6,ｺｲﾙ巻数=12

 1
90506-14085

ARS220,AZSH2#,GWS224

線径=1.4,ｺｲﾙ巻数=12

 1
53577 - BOLT, HOOD LOCK
53577-33010

ARS220,AZSH2#,GWS224

 1
53579 - CAP, HOOD LOCK NUT
53579-50010

ARS220,AZSH2#,GWS224

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C1

ARS220,AZSH2#..S,SF

BLACK,TRIM1#,2#,3#,4#

 1
53601-52010C1

GWS224..S;ARS220,AZSH2#..B,G,GF

BLACK,TRIM2#,3#,4#

 1
53629A - COVER, HOOD LOCK CONTROL CABLE
53629-50080

ARS220,AZSH2#,GWS224

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-30410

ARS220,AZSH2#,GWS224

 1
Common parts
90119-06939
90119-06A15
90119-08B07
90159-60602
90177-06004
90469-06005
90959-01369
91553-80818
