AZSH20-AEXMB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806-1810)ARS220,AZSH20,GWS224

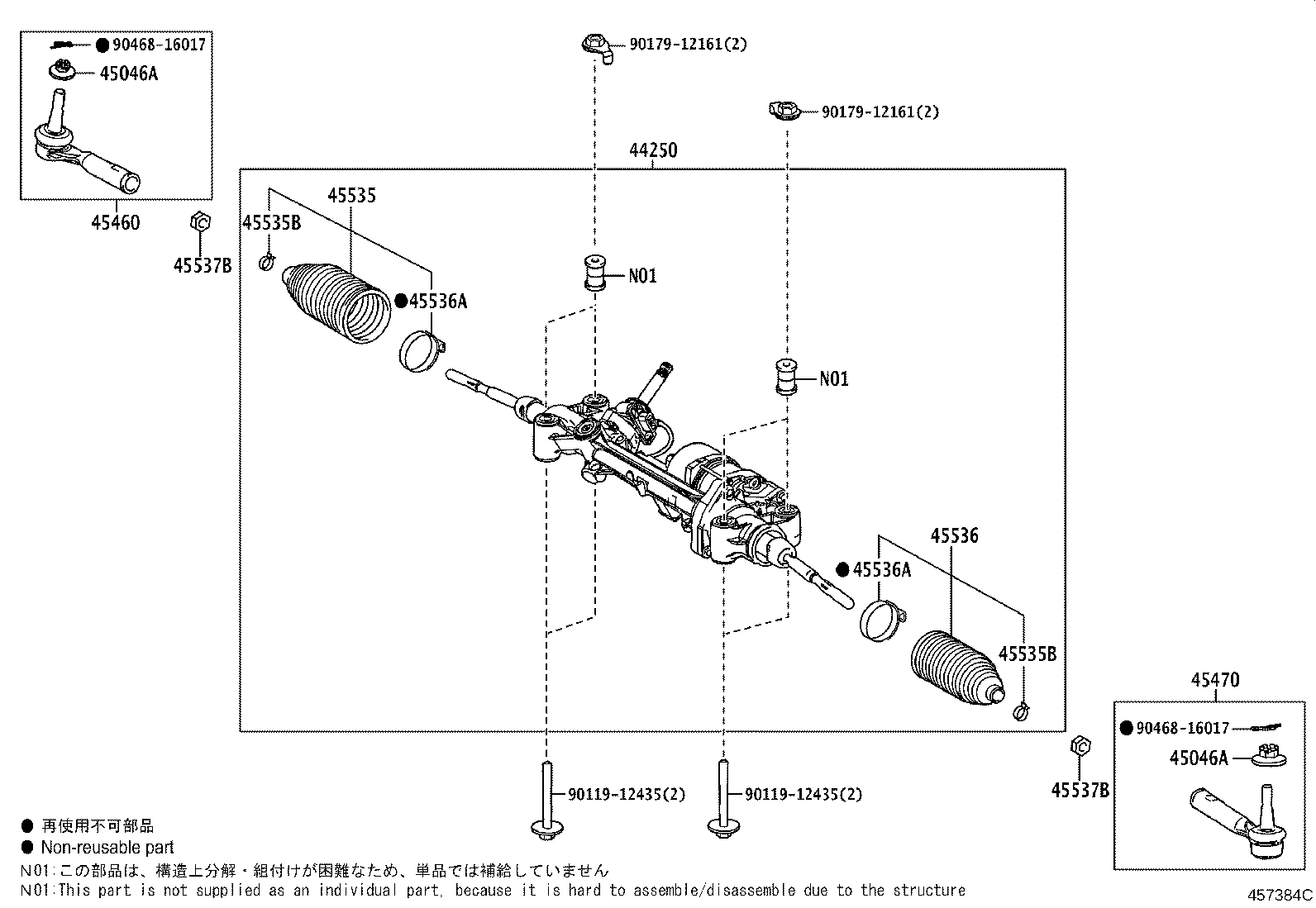

Click highlighted areas on diagram

diagram 44250 45046A 45046A 45460 45470 45535 45535B 45535B 45536 45536A 45536A 45537B 45537B 9011912435 9011912435 9017912161 9017912161 9046816017 9046816017
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-30310

ARS220,AZSH20..G,S

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/45R18 8J

 1
44250-30310

ARS220,AZSH20..S

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/45R18 8J(ﾌﾞﾗｯｸｽﾊﾟｯﾀﾘﾝｸﾞ塗装)

 1
44250-30300

ARS220,AZSH20..B,G,S

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12014

ARS220,AZSH2#,GWS224

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12014

ARS220,AZSH2#,GWS224

 2
45460 - ROD ASSY, TIE, RH
45460-19255

ARS220,AZSH20,GWS224

 1
45470 - ROD ASSY, TIE, LH
45470-19085

ARS220,AZSH20,GWS224

 1
45535 - BOOT, STEERING RACK, NO.1
45535-39075

ARS220,AZSH2#,GWS224

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ARS220,AZSH2#,GWS224

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ARS220,AZSH2#,GWS224

 1
45536 - BOOT, STEERING RACK, NO.2
45535-39075

ARS220,AZSH2#,GWS224

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-02070

ARS220,AZSH2#,GWS224

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-02070

ARS220,AZSH2#,GWS224

 1
45537B - NUT, RACK END LOCK
90178-16001

ARS220,AZSH2#,GWS224

 2
45537B - NUT, RACK END LOCK
90178-16001

ARS220,AZSH2#,GWS224

 2
Common parts
90119-12435
90179-12161
90468-16017

(1811- )ARS220,AZSH20,GWS224

Click highlighted areas on diagram

diagram 44250 45046A 45046A 45460 45470 45535 45535B 45535B 45536 45536A 45536A 45537B 45537B 9011912435 9011912435 9046816017 9046816017 9415121240 9415121240
Part # Description Qty Price
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-30310

ARS220,AZSH20..G,S

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/45R18 8J

 1
44250-30310

ARS220,AZSH20..S

ﾀｲﾔ&ﾃﾞｨｽｸﾎｲｰﾙ−225/45R18 8J(ﾌﾞﾗｯｸｽﾊﾟｯﾀﾘﾝｸﾞ塗装)

 1
44250-30300

ARS220,AZSH20..B,G,S

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12014

ARS220,AZSH2#,GWS224

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12014

ARS220,AZSH2#,GWS224

 2
45460 - ROD ASSY, TIE, RH
45460-19255

ARS220,AZSH20,GWS224

 1
45470 - ROD ASSY, TIE, LH
45470-19085

ARS220,AZSH20,GWS224

 1
45535 - BOOT, STEERING RACK, NO.1
45535-39075

ARS220,AZSH2#,GWS224

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ARS220,AZSH2#,GWS224

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ARS220,AZSH2#,GWS224

 1
45536 - BOOT, STEERING RACK, NO.2
45535-39075

ARS220,AZSH2#,GWS224

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-02070

ARS220,AZSH2#,GWS224

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-02070

ARS220,AZSH2#,GWS224

 1
45537B - NUT, RACK END LOCK
90178-16001

ARS220,AZSH2#,GWS224

 2
45537B - NUT, RACK END LOCK
90178-16001

ARS220,AZSH2#,GWS224

 2
Common parts
90119-12435
90468-16017
94151-21240
