AZSH20-AEXGB (2018)
Toyota Crown/Hybrid

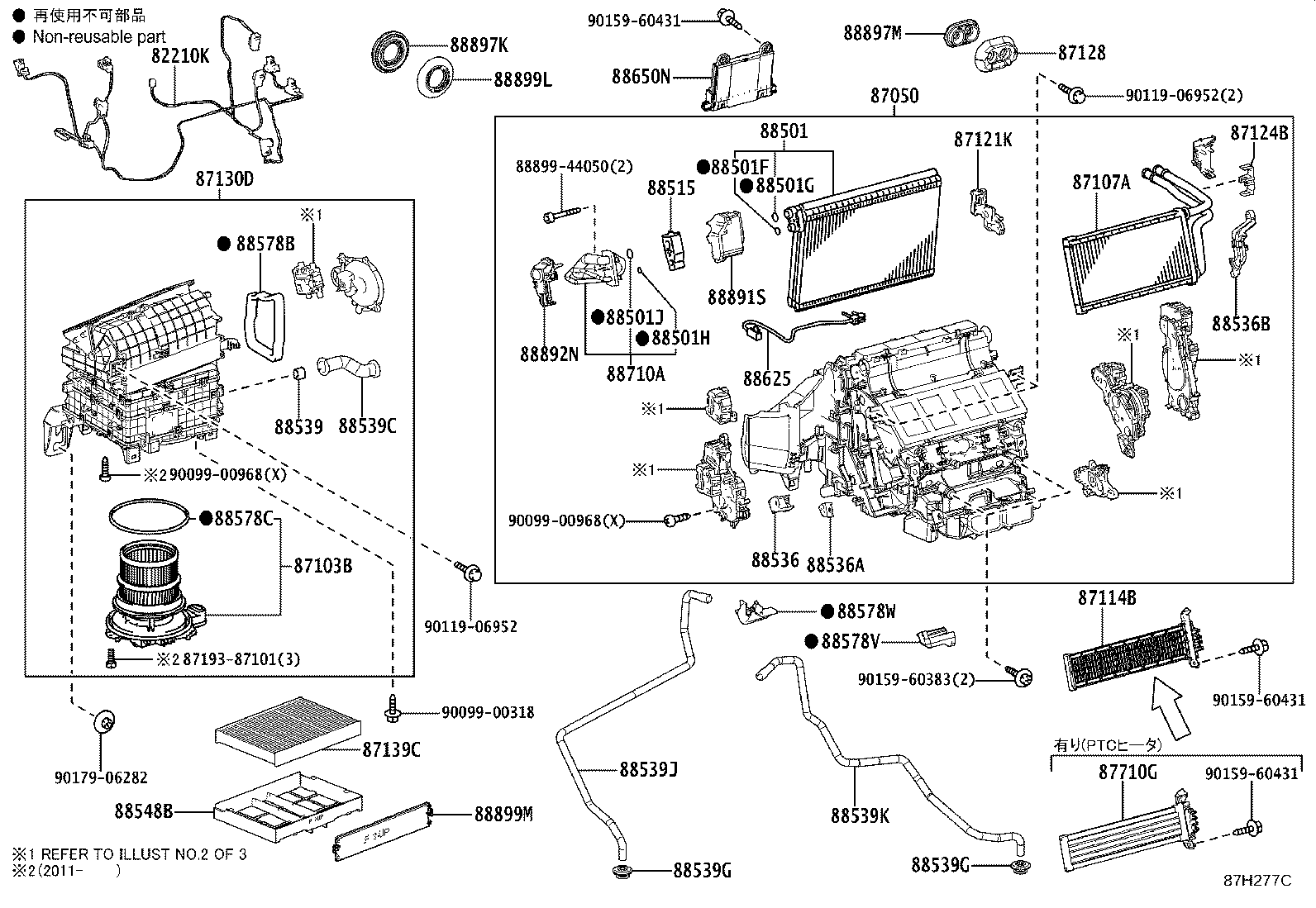

ILLUST NO. 1 OF 3(1806-2010)AZSH2#,GWS224..G,GF,RS,RSADF,RSADV,RSF,S,SF ; (2011- )AZSH2#,GWS224..
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-50190 |
ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-50350 |
AZSH2#,GWS224..G,GF,RS,RSADF,RSADV,RSF,S,SF |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-11020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-11020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87121K - BRACKET, HEATER | ||||
| 87121-11040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-30020 |
AZSH2#,GWS224 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-50140 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30110 |
ARS220,AZSH2#,GWS224 脱臭ﾌｨﾙﾀ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30A30 |
AZSH2#,GWS224 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
ARS220,AZSH2#,GWS224 内径=10.8,外径=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
ARS220,AZSH2#,GWS224 内径=13.4,外径=18.2 |
1 | ||
| 88501H - O-RING, COOLER EVAPORATOR NO.2(DISCHARGE) | ||||
| 90099-14119 |
ARS220,AZSH2#,GWS224 内径=6.7,外径=10.3 |
1 | ||
| 88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION) | ||||
| 90099-14121 |
ARS220,AZSH2#,GWS224 内径=13.4,外径=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50320 |
AZSH2#,GWS224 |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 87241-11020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 87241-11040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 87241-11060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-30A00 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-11050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 90480-26029 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-11030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-50200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-50140 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 87429-53010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 87127-11010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-11010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-11020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50020 |
AZSH2#,GWS224 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-3AW50 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88650-3AW60 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D) |
1 | ||
| 88650-3AW50 |
GWS224..RSADV,S;ARS220,AZSH2#..G,GF,RSADF,RSADV ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88650-3AW90 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88650-3AW70 |
ARS220,AZSH2#..RS,RSF,S,SF ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88650-3AW80 |
ARS220,AZSH2#..B,RS,RSB,RSF,S,SF |
1 | ||
| 88650-3AX00 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88650-3AW60 |
GWS224..RSADV,S;ARS220,AZSH2#..G,GF,RSADF,RSADV |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-11020 |
AZSH2#,GWS224 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88892N - COVER, COOLER, NO.2 | ||||
| 88892-50140 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-11020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-30060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-11020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-50150 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-06952 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

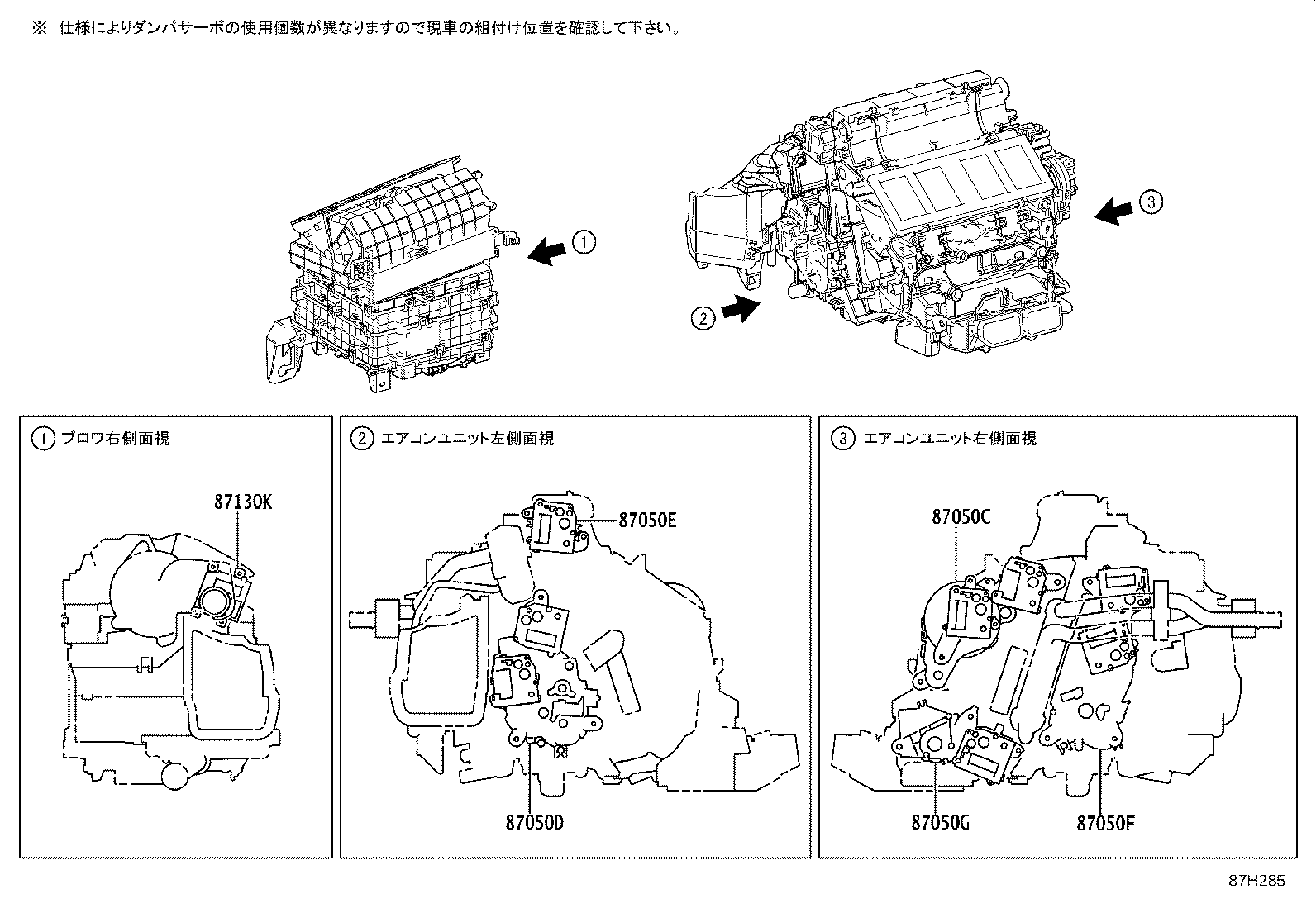

ILLUST NO. 2 OF 3(1806-2010)AZSH2#,GWS224..G,GF,RS,RSADF,RSADV,RSF,S,SF ; (2011- )AZSH2#,GWS224..
ﾌﾛﾝﾄ ｻｰﾎﾞﾓｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-11050 |
ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-11010 |
ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-50740 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-50700 |
ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-50600 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-50750 |
ARS220,AZSH2#,GWS224 |
1 | ||

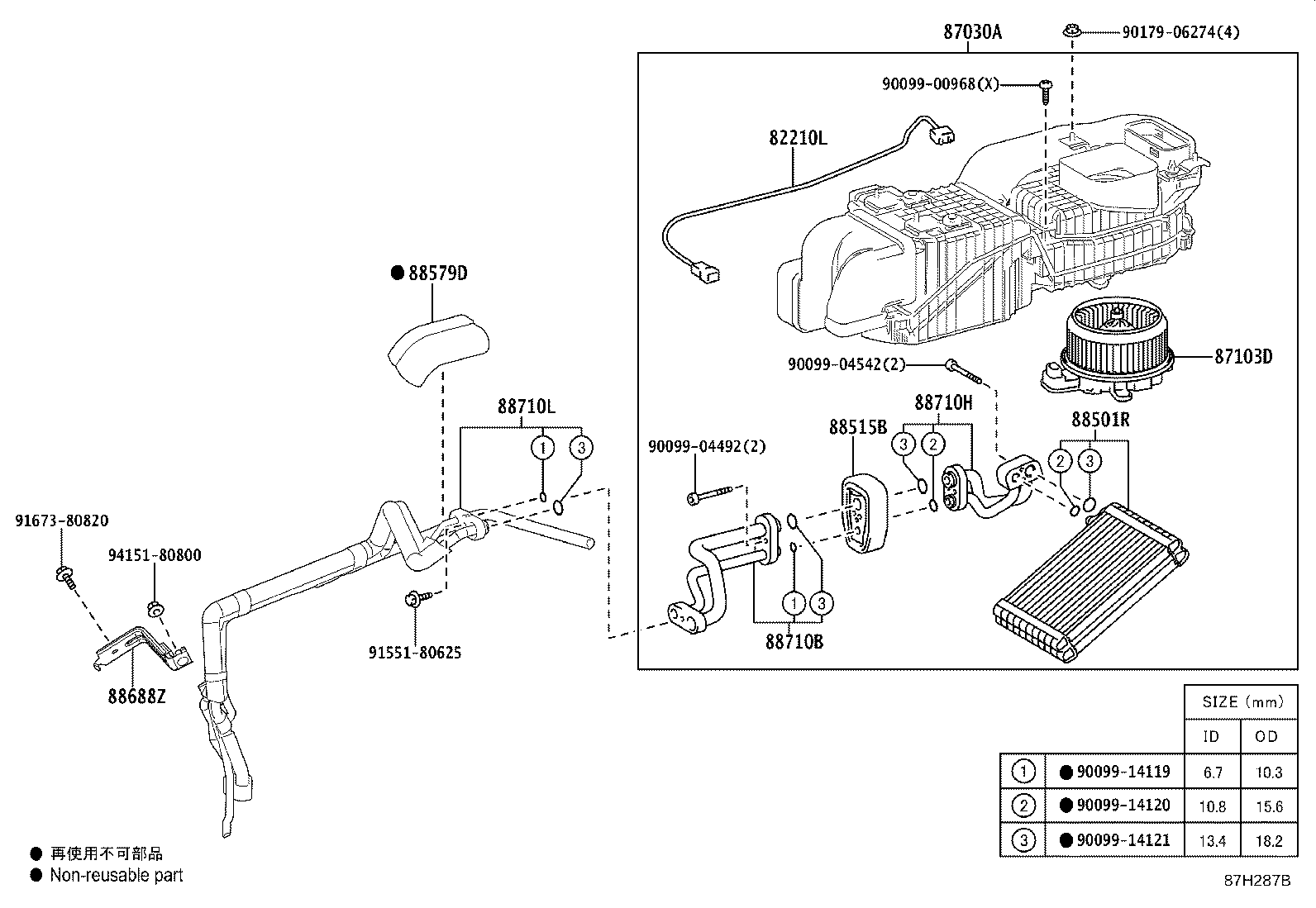

ILLUST NO. 3 OF 3(1806-2010)AZSH2# ; (2011- )AZSH2#..G,GEXEF,GF,RSADF,RSADV
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-30170 |
AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-30130 |
AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-30490 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-30A10 |
AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60260 |
AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88579D - PACKING, COOLING UNIT, NO.6 | ||||
| 88578-3A030 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-30A50 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-30A80 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-30A70 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88710L - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2 | ||||
| 88710-30A50 |
ARS220,AZSH2#..G,GF ﾘﾔｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90099-04542 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06274 | ||||
| 91551-80625 | ||||
| 91673-80820 | ||||
| 94151-80800 | ||||
