AZSH20-AEXGB (2018)
Toyota Crown/Hybrid
Production
Jun 2018
-
Oct 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1806- )

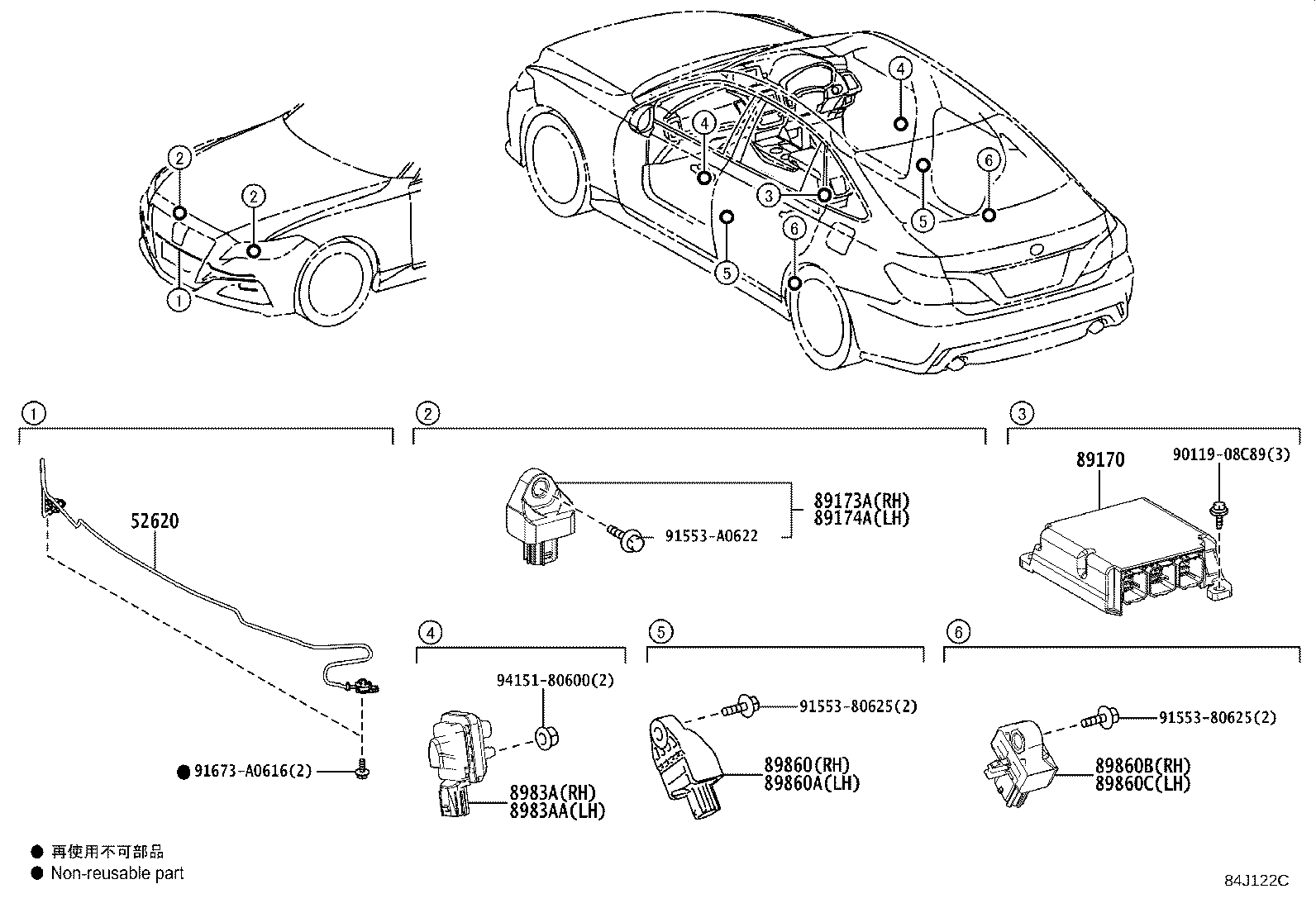

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52620 - CHAMBER ASSY, PEDESTRIAN DETECTION | ||||
| 52620-30050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-30G70 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-19505 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89173-19505 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 8983A - SENSOR, SIDE AIR BAG PRESSURE, RH | ||||
| 8983A-33010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 8983AA - SENSOR, SIDE AIR BAG PRESSURE, LH | ||||
| 8983A-33010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89831-28050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89831-28050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2 | ||||
| 89831-28030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2 | ||||
| 89831-28030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90119-08C89 | ||||
| 91553-80625 | ||||
| 91553-A0622 | ||||
| 91673-A0616 | ||||
| 94151-80600 | ||||
