AZSH20-AEXGB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )B,G,GEXEC,GEXEF,GF,S,SF

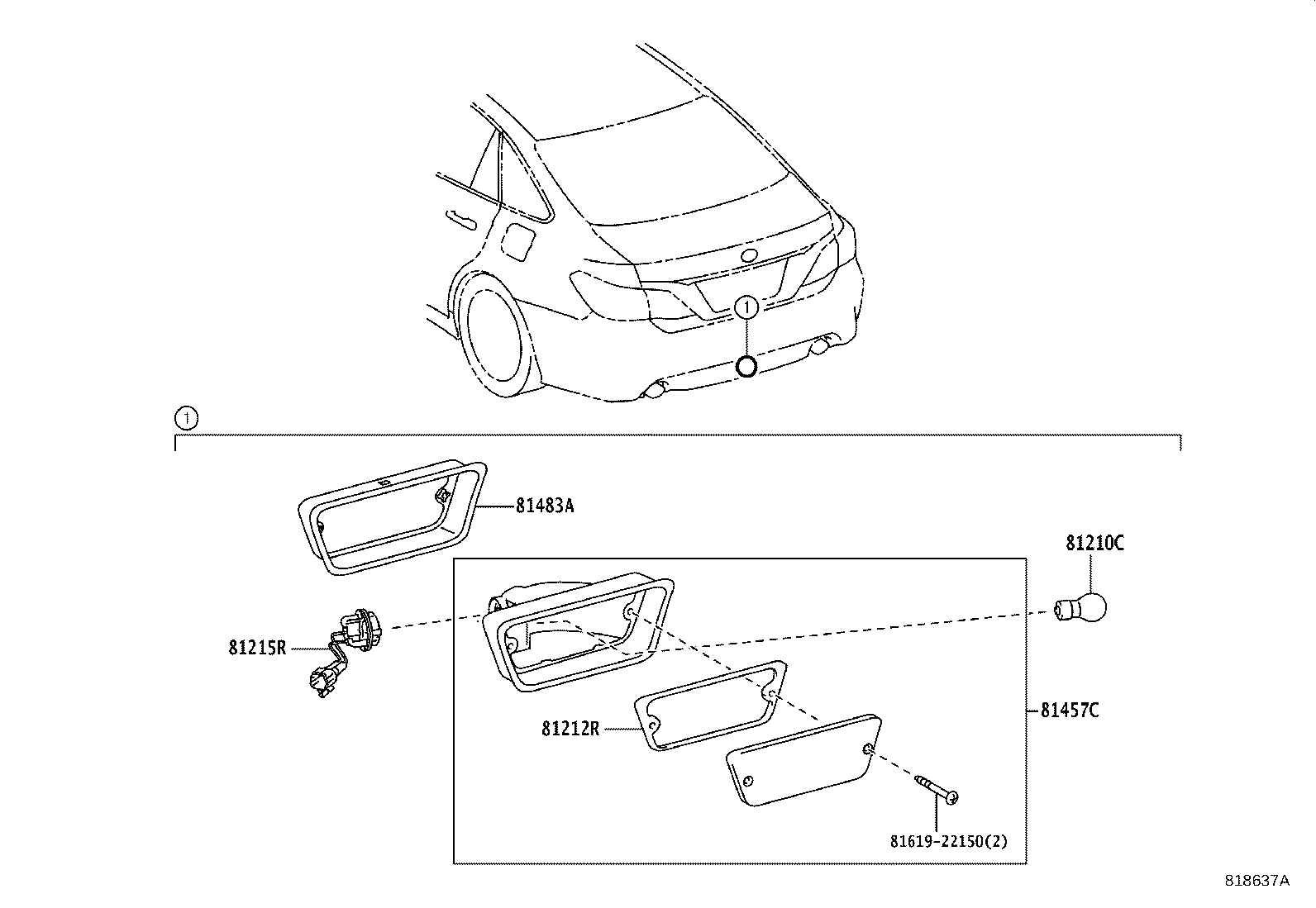

Click highlighted areas on diagram

diagram 81210C 81212R 81215R 81457C 81483A 8161922150
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

12V 21W,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81458-28030

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)

 1
81215R - SOCKET & WIRE, REAR FOG LAMP
81459-30060

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)

 1
81457C - LENS & BODY, REAR FOG LAMP
81457-30060

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)

 1
81483A - PROTECTOR, FOG LAMP
81483-30040

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)

 1
Common parts
81619-22150
