AZSH20-AEXGB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

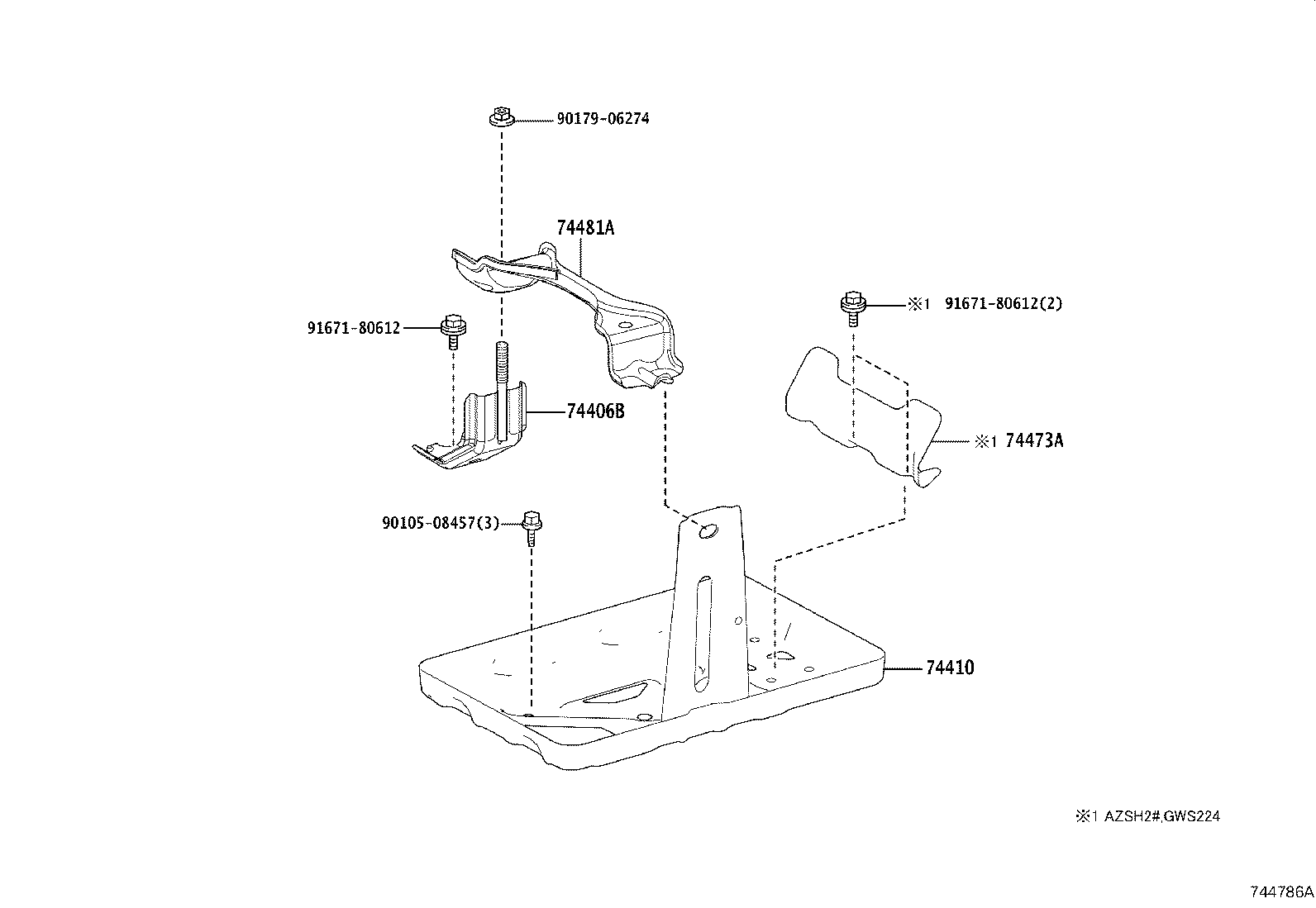

Click highlighted areas on diagram

diagram 74406B 74410 74473A 74481A 9010508457 9017906274 9167180612 9167180612
Part # Description Qty Price
74406B - CLAMP SUB-ASSY, BATTERY HOLD DOWN
74406-30080

ARS220,AZSH2#,GWS224

 1
74410 - CARRIER ASSY, BATTERY
74410-30080

ARS220,AZSH2#,GWS224

 1
74473A - SPACER, BATTERY, NO.1
74473-30040

AZSH2#,GWS224

 1
74481A - CLAMP, BATTERY
74481-15010

ARS220,AZSH2#,GWS224

 1
Common parts
90105-08457
90179-06274
91671-80612
