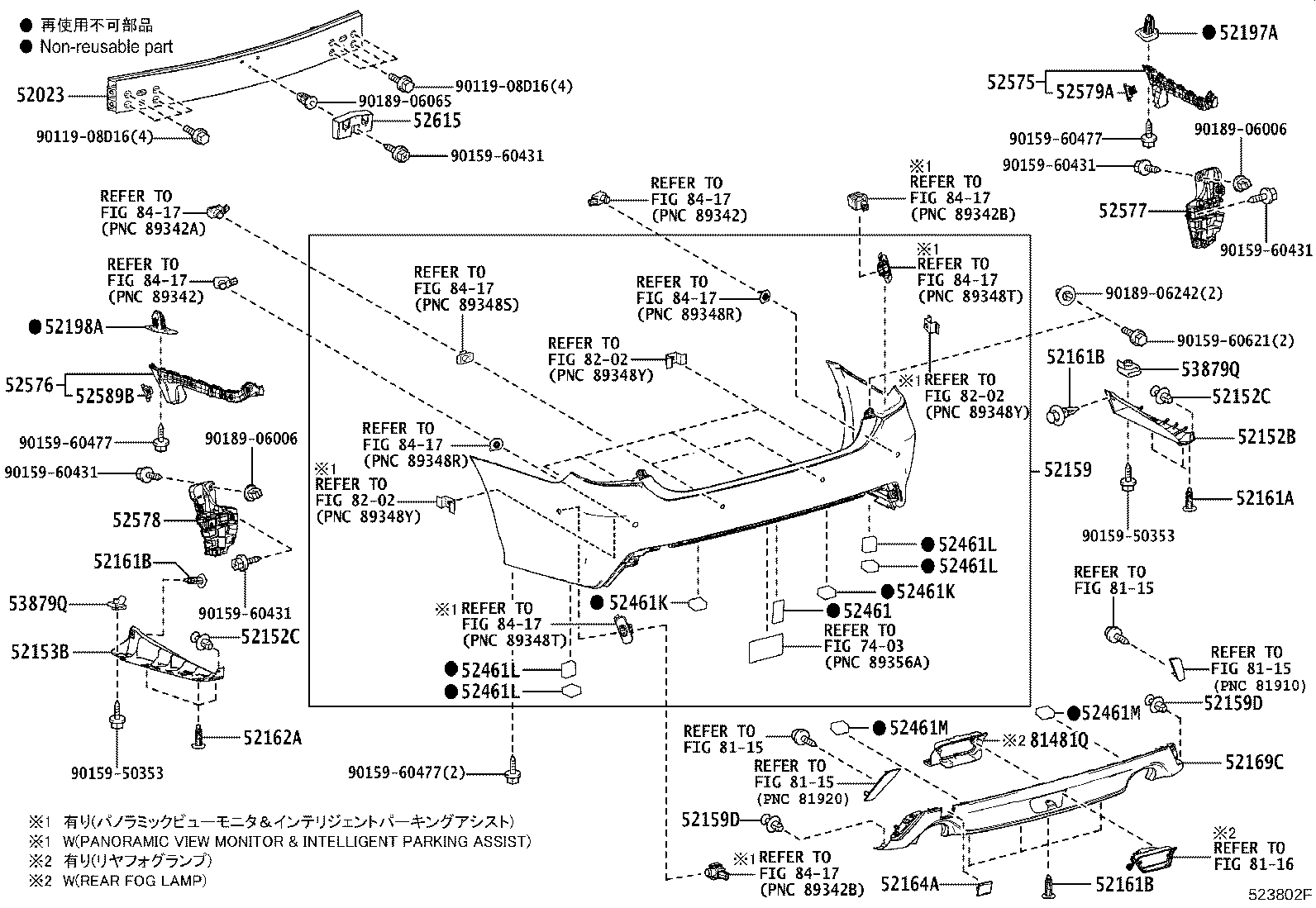

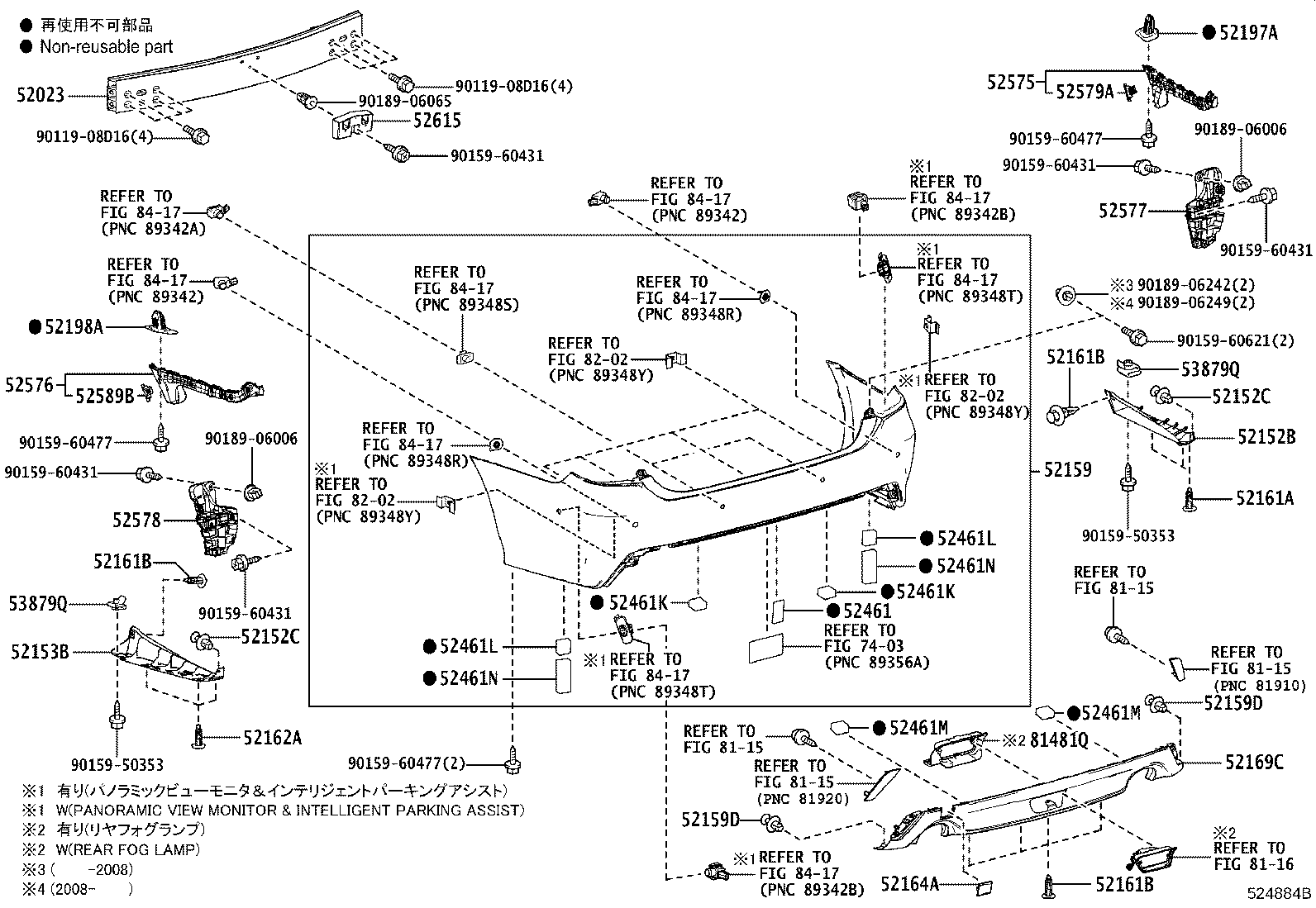

AZSH20-AEXGB (2018)
Toyota Crown/Hybrid
(1806-2003)B,G,GEXEC,GEXEF,GF,S,SF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-30420 |
AZSH20,GWS224;ARS220,AZSH21..B,G,GEXEF,GF,RSADF,RSF,S,SF |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52152-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-30130 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52153-30150 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-30990G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF SILVER ME.,1F7 |
1 | ||
| 52159-30989J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF DK.BLUE MC.,8S6 |
1 | ||
| 52159-30991G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF WHITE PEARL CS.,062 |
1 | ||
| 52159-30989B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30989J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30990A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30990G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30989E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ORANGE ME.,4R8 |
1 | ||
| 52159-30989C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF BLACK,202 |
1 | ||
| 52159-30990B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30989C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS BLACK,219 |
1 | ||
| 52159-30990B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30990B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30990C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30990B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30990A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30990B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30990C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30990J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30990J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30990B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30991B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30990C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30991B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),SILVER ME.,1F7 |
1 | ||
| 52159-30990C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30990E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30990E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30991B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30991E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),ORANGE ME.,4R8 |
1 | ||
| 52159-30990J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30991C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),BLACK,202 |
1 | ||
| 52159-30991J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30991A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),WHITE PEARL CS.,062 |
1 | ||
| 52159-30991C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS BLACK,219 |
1 | ||
| 52159-30991J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30990J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30990D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30989D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DEEP RED M.M.,3R9 |
1 | ||
| 52159-30989D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30991D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30989J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30991J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30990D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30990J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30991D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30990J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30990D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30997A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF WHITE PEARL CS.,062 |
1 | ||
| 52159-30990D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30997B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30997C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF BLACK,202 |
1 | ||
| 52159-30997D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30997B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF SILVER ME.,1F7 |
1 | ||
| 52159-30998A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30997C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS BLACK,219 |
1 | ||
| 52159-30997E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ORANGE ME.,4R8 |
1 | ||
| 52159-30998B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30998B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30997J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF DK.BLUE MC.,8S6 |
1 | ||
| 52159-30998B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30998A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30997D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DEEP RED M.M.,3R9 |
1 | ||
| 52159-30997J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30997J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30997B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30998C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30998D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30998J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30998D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30998D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30998B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30998B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30998D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30998J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30999B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30998B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30998C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30999A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),WHITE PEARL CS.,062 |
1 | ||
| 52159-30999C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS BLACK,219 |
1 | ||
| 52159-30998J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30998J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30999D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30998E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30999J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30999J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30999B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30999J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30998E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30999C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),BLACK,202 |
1 | ||
| 52159-30999D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30999B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),SILVER ME.,1F7 |
1 | ||
| 52159-30999E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),ORANGE ME.,4R8 |
1 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-30110 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-30230 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 塗装不要,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ) |
1 | ||
| 52169-30220 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 塗装不要 |
1 | ||
| 52169-30230 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 塗装不要,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA普魔hCS) |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-30060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-30060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52462-30120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52462-30110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52462-30110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52462-30110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52462-30110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-30110 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-30110 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-30210 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-30170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-30110 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-30120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52579A - RETAINER, REAR BUMPER SIDE, NO.3 RH | ||||
| 52579-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52589B - RETAINER, REAR BUMPER SIDE, NO.3 LH | ||||
| 52579-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-30320 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53879Q - RETAINER, REAR FENDER LINER | ||||
| 53879-17020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 53879Q - RETAINER, REAR FENDER LINER | ||||
| 53879-17020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 81481Q - BRACKET, FOG LAMP | ||||
| 81481-30400 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 81481-30400 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ) |
1 | ||
| Common parts | ||||
| 90119-08D16 | ||||
| 90159-50353 | ||||
| 90159-60431 | ||||
| 90159-60477 | ||||
| 90159-60621 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8115 | ||||
| 8116 | ||||
| 8202 | ||||
| 8417 | ||||
(2003-2010)B,G,GEXEC,GEXEF,GF,S,SF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-30420 |
AZSH20,GWS224;ARS220,AZSH21..B,G,GEXEF,GF,RSADF,RSF,S,SF |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52152-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-30130 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52153-30150 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-30990G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF SILVER ME.,1F7 |
1 | ||
| 52159-30989J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF DK.BLUE MC.,8S6 |
1 | ||
| 52159-30991G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF WHITE PEARL CS.,062 |
1 | ||
| 52159-30989B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30989J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30990A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30990G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ALUMINA JADE ME.,6W4 |
1 | ||
| 52159-30989B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30989E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ORANGE ME.,4R8 |
1 | ||
| 52159-30989C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF BLACK,202 |
1 | ||
| 52159-30990B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30989C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS BLACK,219 |
1 | ||
| 52159-30990B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30990B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30990C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30990B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30990A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30990B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30990C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30990J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30990J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30990B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30991B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30990C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30991B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),SILVER ME.,1F7 |
1 | ||
| 52159-30990C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30990E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30990E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30991B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30991E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),ORANGE ME.,4R8 |
1 | ||
| 52159-30990J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30991C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),BLACK,202 |
1 | ||
| 52159-30991J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30991A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),WHITE PEARL CS.,062 |
1 | ||
| 52159-30991C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS BLACK,219 |
1 | ||
| 52159-30991J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30990J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30990D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30989D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DEEP RED M.M.,3R9 |
1 | ||
| 52159-30989D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30991D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30989J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30991J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30990D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30990J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30991D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30990J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30990D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30997A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF WHITE PEARL CS.,062 |
1 | ||
| 52159-30990D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30997B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30997C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF BLACK,202 |
1 | ||
| 52159-30997D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30997B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF SILVER ME.,1F7 |
1 | ||
| 52159-30998A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30997C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS BLACK,219 |
1 | ||
| 52159-30997E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ORANGE ME.,4R8 |
1 | ||
| 52159-30998B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30998B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30997J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF DK.BLUE MC.,8S6 |
1 | ||
| 52159-30998B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30998A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),WHITE PEARL CS.,062 |
1 | ||
| 52159-30997D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DEEP RED M.M.,3R9 |
1 | ||
| 52159-30997J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30997J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30997B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30998C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),BLACK,202 |
1 | ||
| 52159-30998D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30998J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30998D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30998D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30998B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30998B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),SILVER ME.,1F7 |
1 | ||
| 52159-30998D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30998J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30999B2 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS GALENA,1K5 |
1 | ||
| 52159-30998B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30998C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),PRECIOUS BLACK,219 |
1 | ||
| 52159-30999A0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),WHITE PEARL CS.,062 |
1 | ||
| 52159-30999C1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS BLACK,219 |
1 | ||
| 52159-30998J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30998J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30999D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DEEP RED M.M.,3R9 |
1 | ||
| 52159-30998E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30999J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30999J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PURE BLUE ME.,8Y1 |
1 | ||
| 52159-30999B1 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),PRECIOUS SILVER,1J6 |
1 | ||
| 52159-30998J0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),DK.BLUE MC.,8S6 |
1 | ||
| 52159-30999J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),DK.BLUE M.M.,8W7 |
1 | ||
| 52159-30998E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS),ORANGE ME.,4R8 |
1 | ||
| 52159-30999C0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),BLACK,202 |
1 | ||
| 52159-30999D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),RICH RED CS. GF.,3U2 |
1 | ||
| 52159-30999B0 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),SILVER ME.,1F7 |
1 | ||
| 52159-30999E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ),ORANGE ME.,4R8 |
1 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52161-16010 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-30110 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
1 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-30230 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 塗装不要,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ) |
1 | ||
| 52169-30220 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 塗装不要 |
1 | ||
| 52169-30230 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 塗装不要,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA普魔hCS) |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-30060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-30060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52462-30120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52461K - PAD, REAR BUMPER, NO.1 | ||||
| 52462-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52462-30110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 52461L - PAD, REAR BUMPER, NO.2 | ||||
| 52461-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52462-30110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-30110 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52461M - PAD, REAR BUMPER, NO.3 | ||||
| 52462-30110 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
2 | ||
| 52461N - PAD, REAR BUMPER, NO.4 | ||||
| 52462-30140 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52461N - PAD, REAR BUMPER, NO.4 | ||||
| 52462-30140 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-30210 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-30170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-30110 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-30120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52579A - RETAINER, REAR BUMPER SIDE, NO.3 RH | ||||
| 52579-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52589B - RETAINER, REAR BUMPER SIDE, NO.3 LH | ||||
| 52579-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-30320 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53879Q - RETAINER, REAR FENDER LINER | ||||
| 53879-17020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 53879Q - RETAINER, REAR FENDER LINER | ||||
| 53879-17020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 81481Q - BRACKET, FOG LAMP | ||||
| 81481-30400 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 81481-30400 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(ﾍﾞｰｽ) |
1 | ||
| Common parts | ||||
| 90119-08D16 | ||||
| 90159-50353 | ||||
| 90159-60431 | ||||
| 90159-60477 | ||||
| 90159-60621 | ||||
| 90189-06006 | ||||
| 90189-06065 | ||||
| 90189-06242 | ||||
| 90189-06249 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8115 | ||||
| 8116 | ||||
| 8202 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
