AZSH20-AEXGB (2018)
Toyota Crown/Hybrid
Production
Jun 2018
-
Oct 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1806- )AZSH2#,GWS224

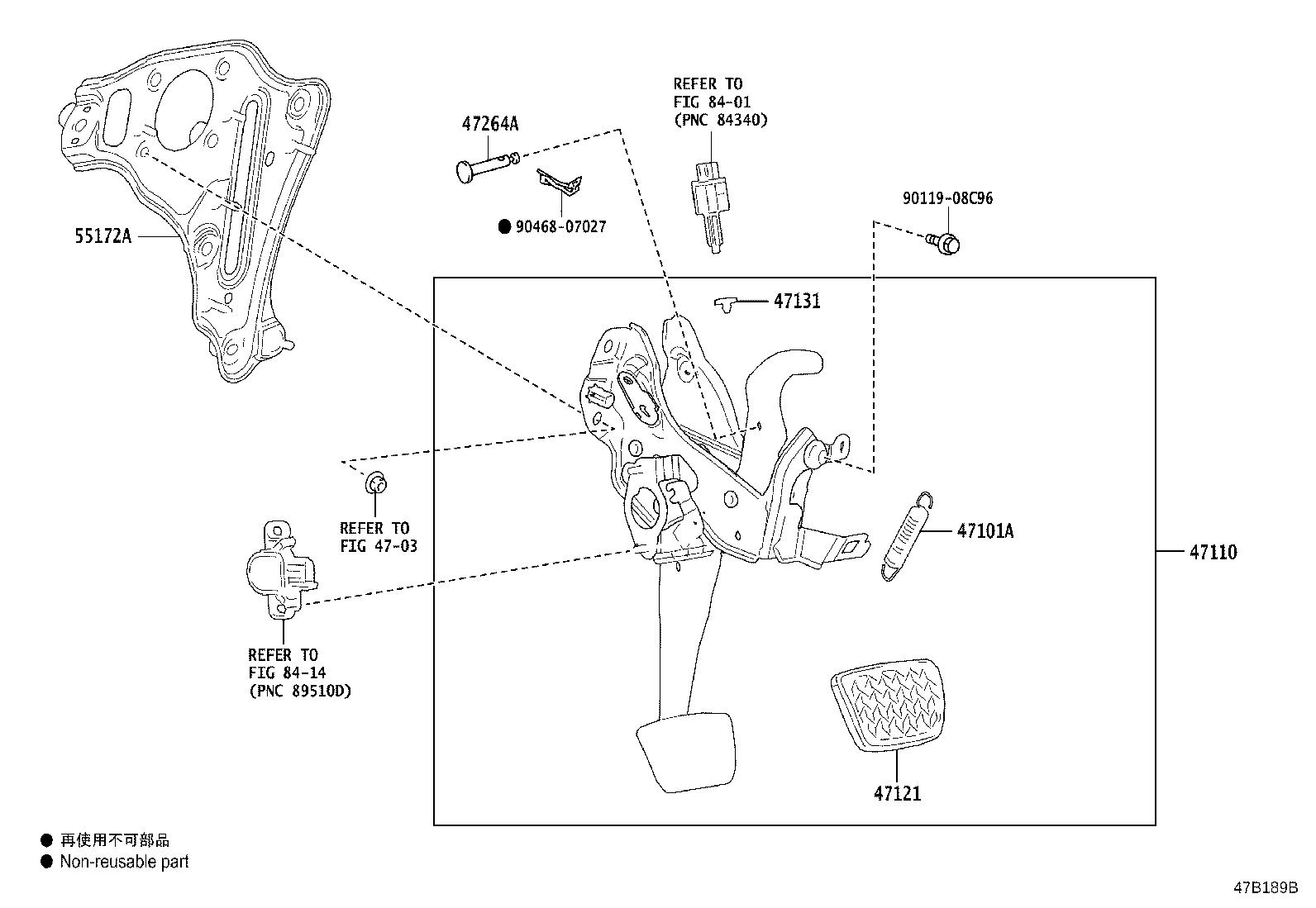

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15011 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-50170 |
AZSH2#,GWS224 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 47121-48010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| 90541-06036 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-08078 |
AZSH2#,GWS224 |
1 | ||
| 55172A - BASE, BRAKE PEDAL SUPPORT | ||||
| 55172-50080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90119-08C96 | ||||
| 90468-07027 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 8401 | ||||
| 8414 | ||||
