AZSH20-AEXBB (2020)
Toyota Crown/Hybrid

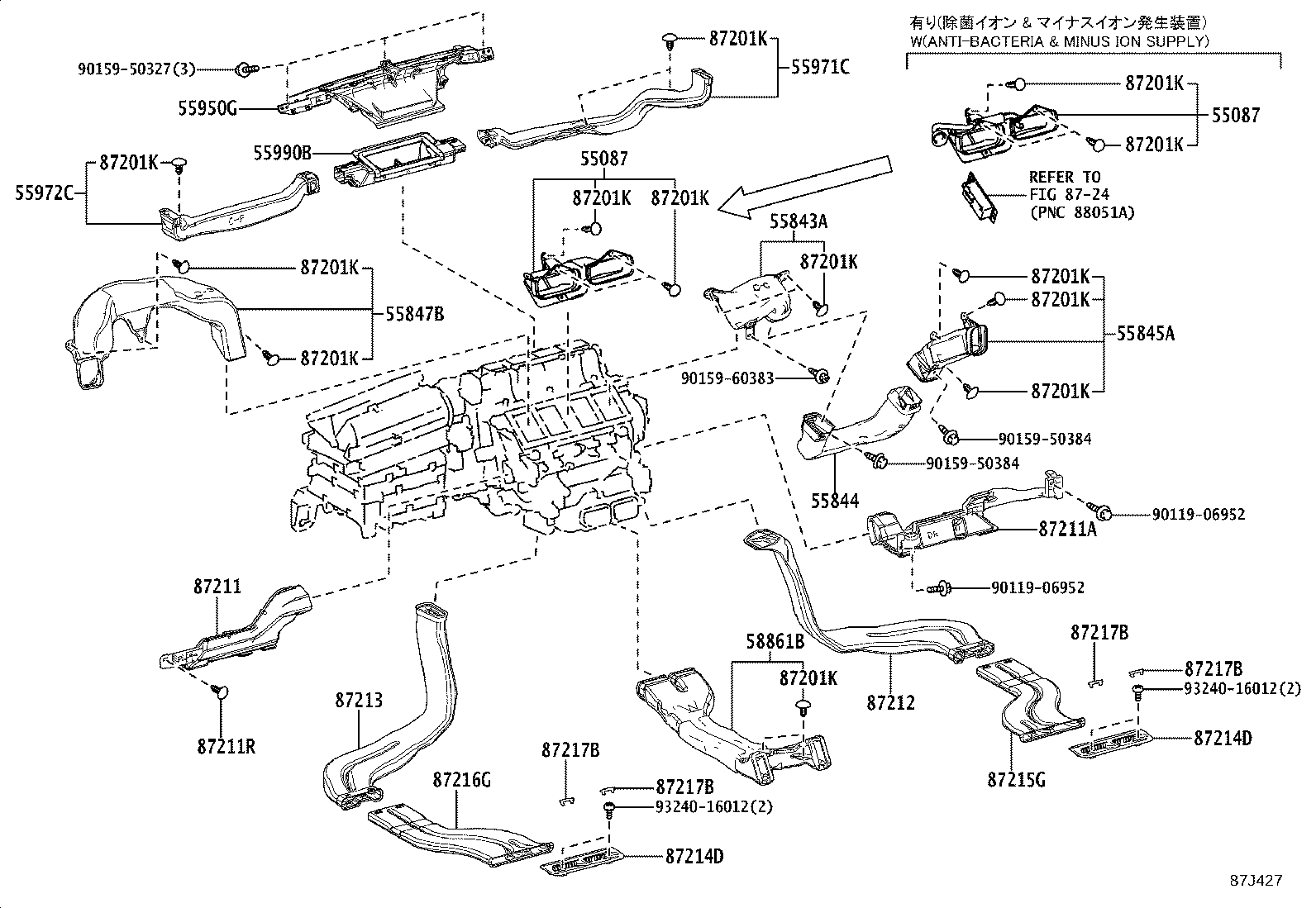

ILLUST NO. 2 OF 4(2011- )
ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55837-30030 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ |
1 | ||
| 55837-30040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55837-30030 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ |
1 | ||
| 55837-30040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-30340 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-30340 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-30310 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-30170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-30270 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-30230 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-30110 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-05162C0 |
AZSH2#..B,RSB ﾋﾞｼﾞﾈｽﾊﾟｯｹｰｼﾞ,BLACK |
3 | ||
| 90467-05162C0 |
ARS220,AZSH2#,GWS224 BLACK |
8 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-30740 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-30730 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90467-05161C0 |
ARS220,AZSH2#,GWS224 BLACK |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-50080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-50100 |
ARS220,AZSH20,GWS224 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87217-50070C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
2 | ||
| 87217-50070C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
2 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87217-50070C0 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
2 | ||
| 87217-50070C0 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
2 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-50070 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-50040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693C1 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
4 | ||
| 90950-01693C1 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693C1 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
4 | ||
| 90950-01693C1 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693C1 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
4 | ||
| 90950-01693C1 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693C1 |
ARS220,AZSH2#..B,RS,RSB,RSF BLACK,TRIM2# |
4 | ||
| 90950-01693C1 |
AZSH2#,GWS224..G,GEXEC,GEXEF,GF,S,SF BLACK,TRIM1#,2#,4# |
4 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-50384 | ||||
| 90159-60383 | ||||
| 93240-16012 | ||||
| Linked diagrams | ||||
| 8724 | ||||

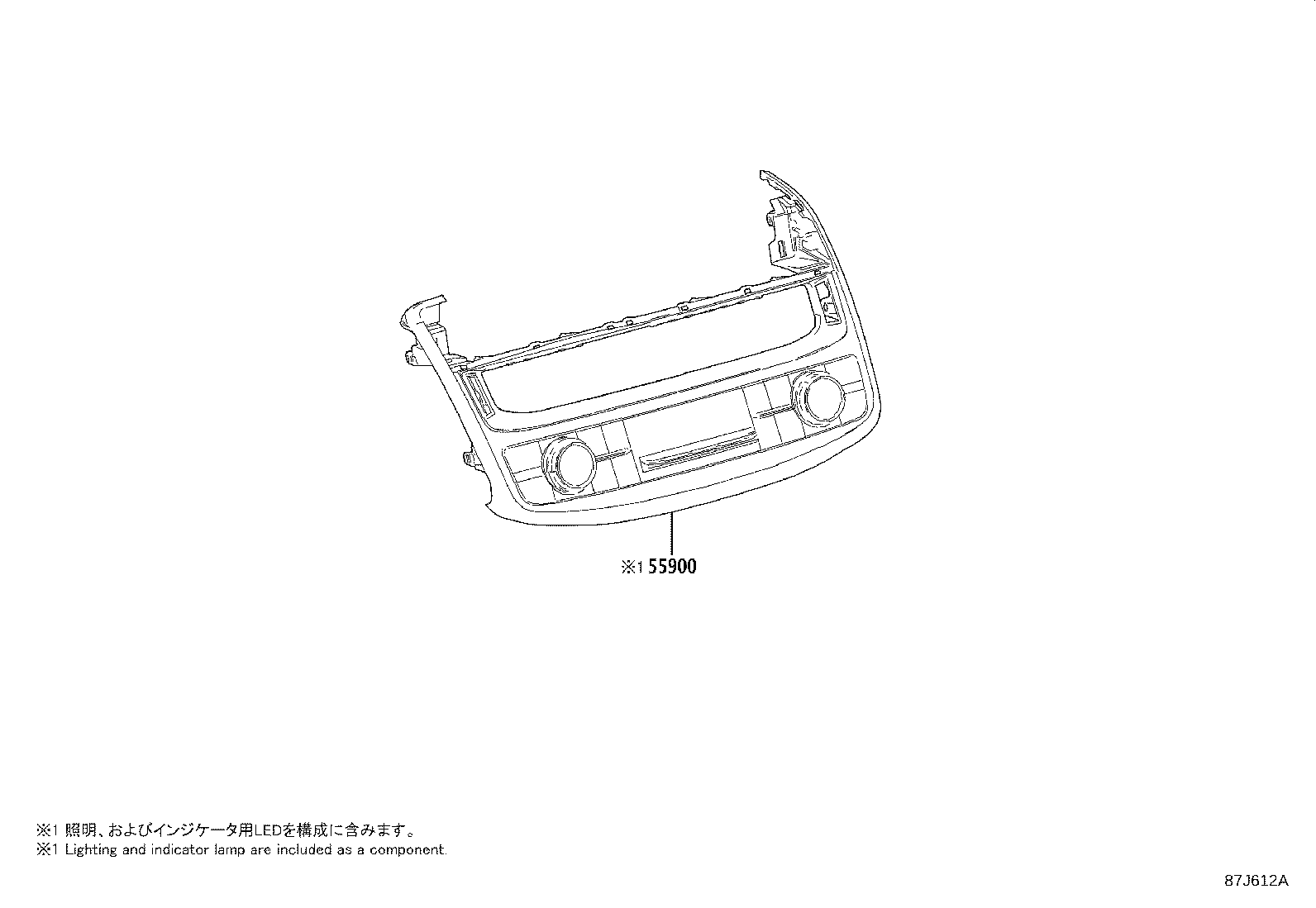

ILLUST NO. 1 OF 4(2011- )
ﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-30A70C0 |
AZSH2#..S,SF 寒冷地仕様,BLACK,TRIM2#,4# |
1 | ||
| 55900-30A80C0 |
AZSH2#..S,SF BLACK,TRIM2#,4# |
1 | ||
| 55900-30B40C0 |
AZSH2#..B,RSB 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55900-30A80E0 |
AZSH2#..S,SF ORCHID BROWN,TRIM1# |
1 | ||
| 55900-30B00C0 |
AZSH2#..B,RSB BLACK,TRIM2# |
1 | ||
| 55900-30A70E0 |
AZSH2#..S,SF 寒冷地仕様,ORCHID BROWN,TRIM1# |
1 | ||
