AZSH20-AEXAB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )ARS220,AZSH2#

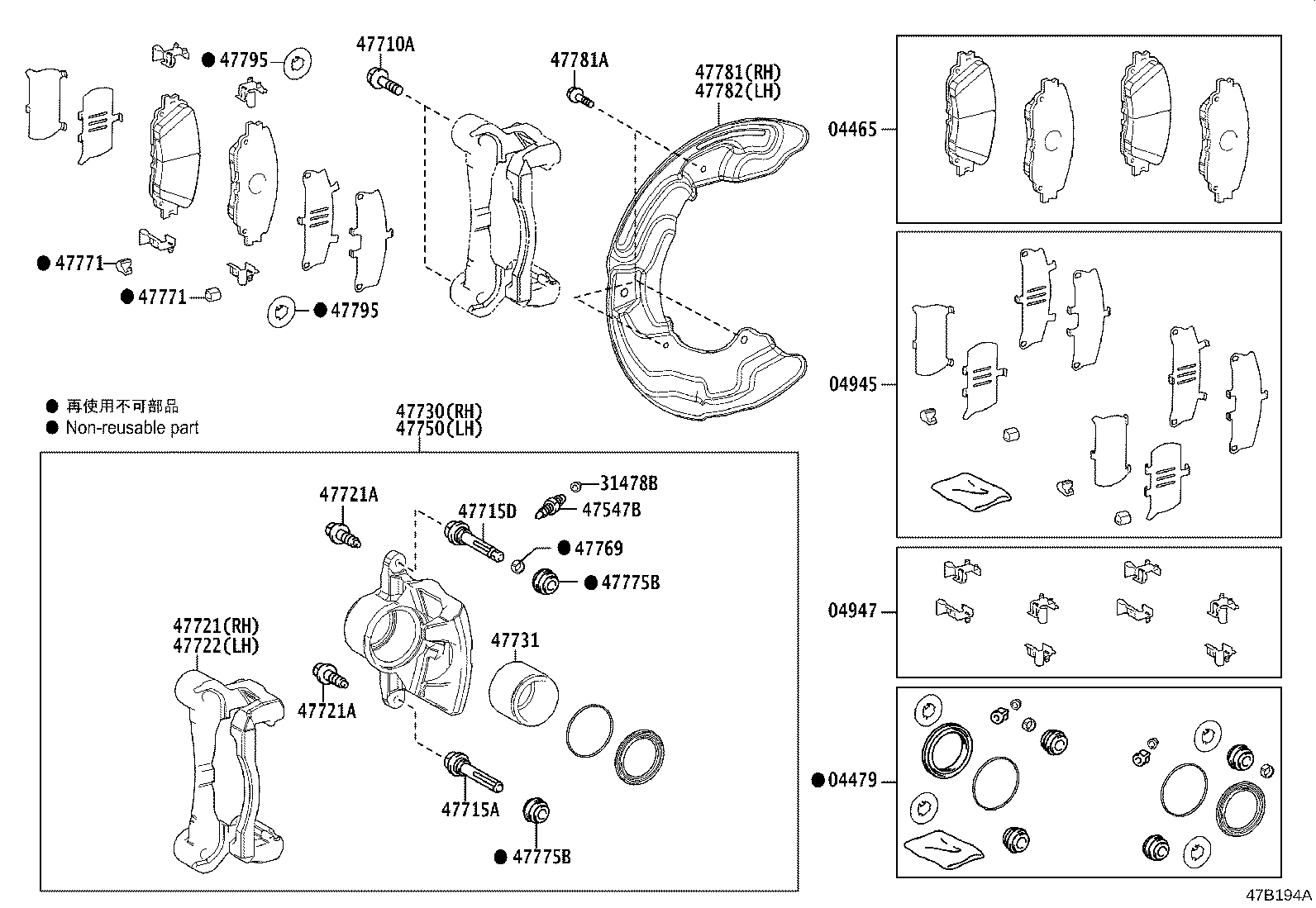

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47750 47769 47771 47771 47775B 47775B 47781 47781A 47782 47795 47795
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-30520

ARS220,AZSH2#

ﾏｰｸ NBK D6503H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-30270

ARS220,AZSH2#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-30390

ARS220,AZSH2#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30190

ARS220,AZSH2#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

ARS220,AZSH2#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

ARS220,AZSH2#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-14180

ARS220,AZSH2#,GWS224

*14−1.5PX40−35.5

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-52190

ARS220,AZSH2#

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-12A10

ARS220,AZSH2#

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-30611

ARS220,AZSH2#

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ARS220,AZSH2#

*8−1.00PX23−15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

ARS220,AZSH2#

*8−1.00PX23−15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-30611

ARS220,AZSH2#

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-30610

ARS220,AZSH2#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-12A10

ARS220,AZSH2#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30610

ARS220,AZSH2#

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

ARS220,AZSH2#

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-30610

ARS220,AZSH2#

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-30610

ARS220,AZSH2#

 4
47775B - BOOT, BUSH DUST, NO.1
47775-52190

ARS220,AZSH2#

 4
47775B - BOOT, BUSH DUST, NO.1
47775-52190

ARS220,AZSH2#

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-30290

ARS220,AZSH2#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-06508

ARS220,AZSH2#,GWS224

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-30290

ARS220,AZSH2#

 1
47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1
47795-30610

ARS220,AZSH2#

 4
47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1
47795-30610

ARS220,AZSH2#

 4
