AZSH20-AEXAB (2018)
Toyota Crown/Hybrid
Production
Jun 2018
-
Oct 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

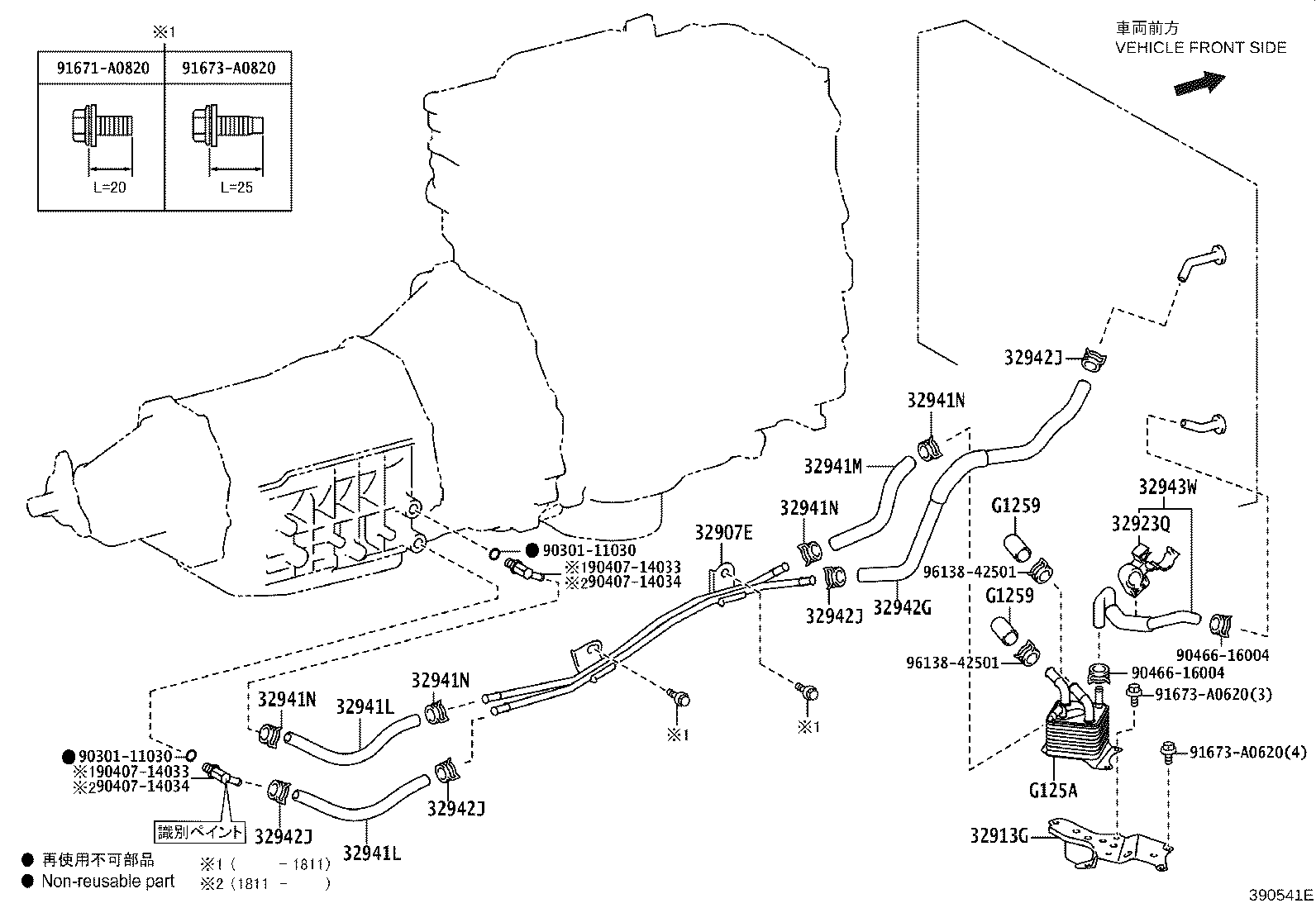

(1806-2006)AZSH20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907E - TUBE SUB-ASSY, OIL COOLER W/O HOSE | ||||
| 32907-30100 |
AZSH2# |
1 | ||
| 32907-30140 |
AZSH2# |
1 | ||
| 32913G - BRACKET, TRANSMISSION OIL COOLER | ||||
| 32913-30060 |
AZSH20 |
1 | ||
| 32923Q - CLAMP, OIL COOLER TUBE | ||||
| 32923-50110 |
AZSH2#,GWS224 |
1 | ||
| 32941L - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-30420 |
AZSH2# |
2 | ||
| 32941L - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-30420 |
AZSH2# |
2 | ||
| 32941M - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32941-30460 |
AZSH2# |
1 | ||
| 32941-30430 |
AZSH20 |
1 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942G - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-30300 |
AZSH20 |
1 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32943W - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-30310 |
AZSH20 |
1 | ||
| G1259 - RUBBER, MOTOR COOLING PIPE | ||||
| G1259-30020 |
AZSH2# |
2 | ||
| G1259 - RUBBER, MOTOR COOLING PIPE | ||||
| G1259-30020 |
AZSH2# |
2 | ||
| G125A - COOLER, MOTOR COOLING | ||||
| G125A-30010 |
AZSH20 |
1 | ||
| Common parts | ||||
| 90301-11030 | ||||
| 90407-14033 | ||||
| 90407-14034 | ||||
| 90466-16004 | ||||
| 91671-A0820 | ||||
| 91673-A0620 | ||||
| 91673-A0820 | ||||
| 96138-42501 | ||||

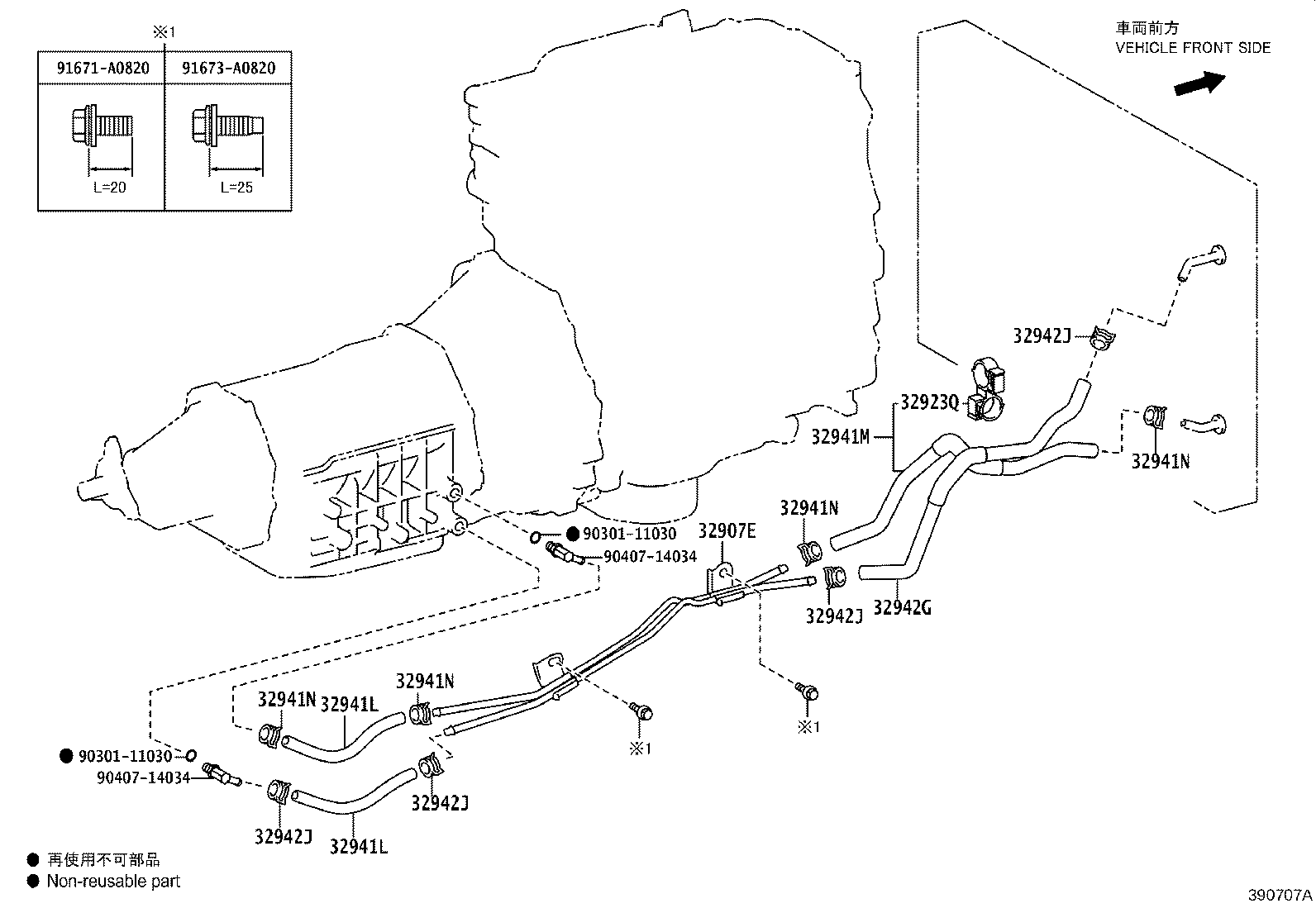

(2007- )AZSH20
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907E - TUBE SUB-ASSY, OIL COOLER W/O HOSE | ||||
| 32907-30100 |
AZSH2# |
1 | ||
| 32907-30140 |
AZSH2# |
1 | ||
| 32923Q - CLAMP, OIL COOLER TUBE | ||||
| 32923-50110 |
AZSH2#,GWS224 |
1 | ||
| 32941L - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-30420 |
AZSH2# |
2 | ||
| 32941L - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-30420 |
AZSH2# |
2 | ||
| 32941M - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32941-30460 |
AZSH2# |
1 | ||
| 32941-30430 |
AZSH20 |
1 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942G - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-30300 |
AZSH20 |
1 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| 32942J - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AZSH2# |
4 | ||
| Common parts | ||||
| 90301-11030 | ||||
| 90407-14034 | ||||
| 91671-A0820 | ||||
| 91673-A0820 | ||||
