AZSH20-AEXAB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )A25AFXS

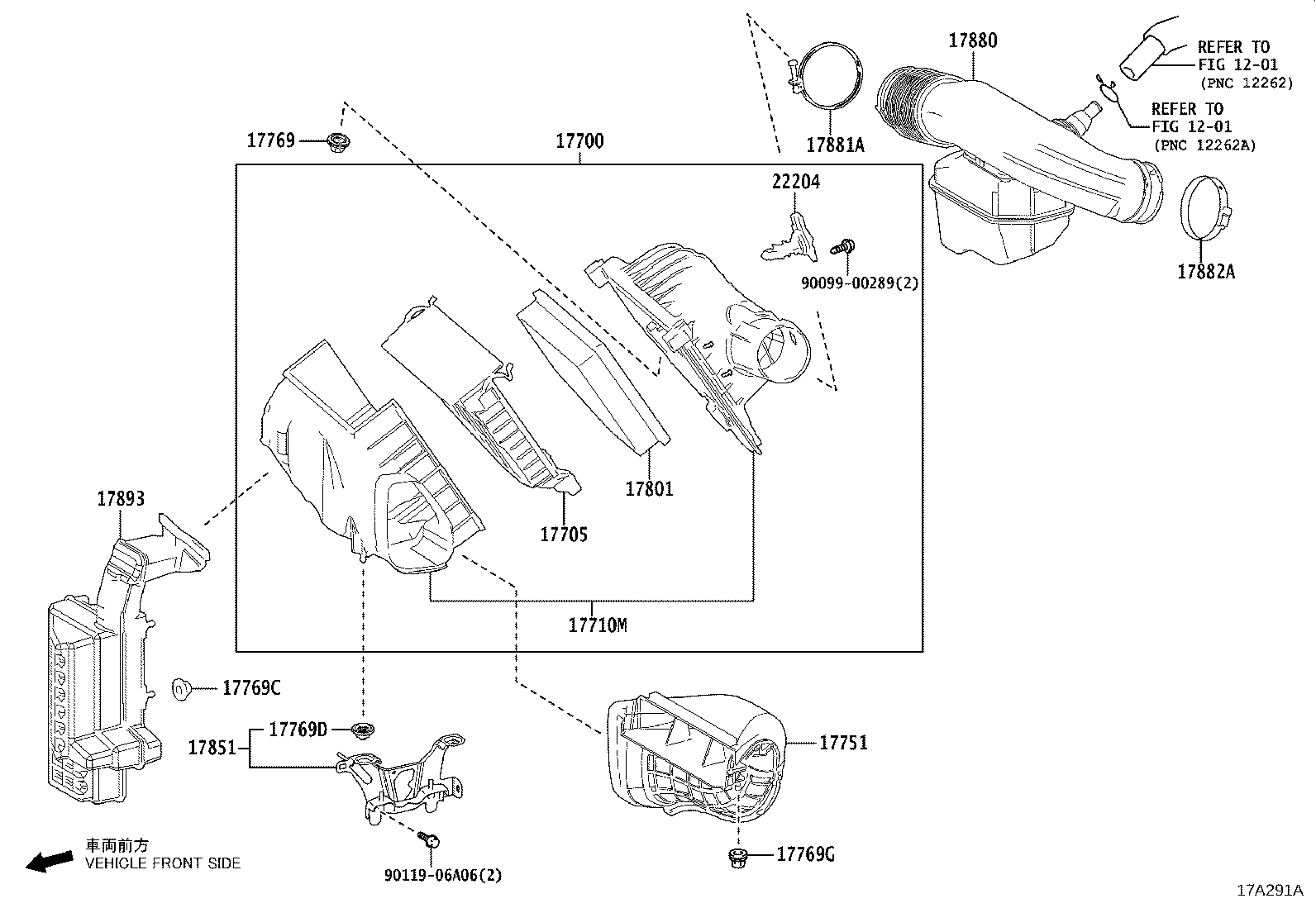

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17710M 17751 17769 17769C 17769D 17769G 17801 17851 17880 17881A 17882A 17893 22204 9009900289 9011906A06
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-25120

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-25140

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17710M - CLEANER ASSY, AIR (WITHOUT ELEMENT)
17710-25010

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-25030

A25AFXS..AZSH2#

 1
17769 - SUPPORT, AIR CLEANER
17769-25010

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17769C - SUPPORT, AIR CLEANER, NO.1
17769-25010

A25AFXS,8ARFTS..ARS220,AZSH2#

 3
17769D - SUPPORT, AIR CLEANER, NO.2
17769-25010

A25AFXS,8ARFTS..ARS220,AZSH2#

 2
17769G - SUPPORT, AIR CLEANER, NO.3
17769-25040

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31150

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17850-38010

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-25030

A25AFXS..AZSH2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17891-31010

A25AFXS..AZSH2#

 1
17893 - RESONATOR, INTAKE AIR
17893-25050

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

A25AFXS,8ARFTS..ARS220,AZSH2#

 1
Common parts
90099-00289
90119-06A06
Linked diagrams
1201
