AWS215-AEXZH (2014)

Toyota Crown/Hybrid

Production Jul 2014 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1509)ATHG,MJ,ROYG

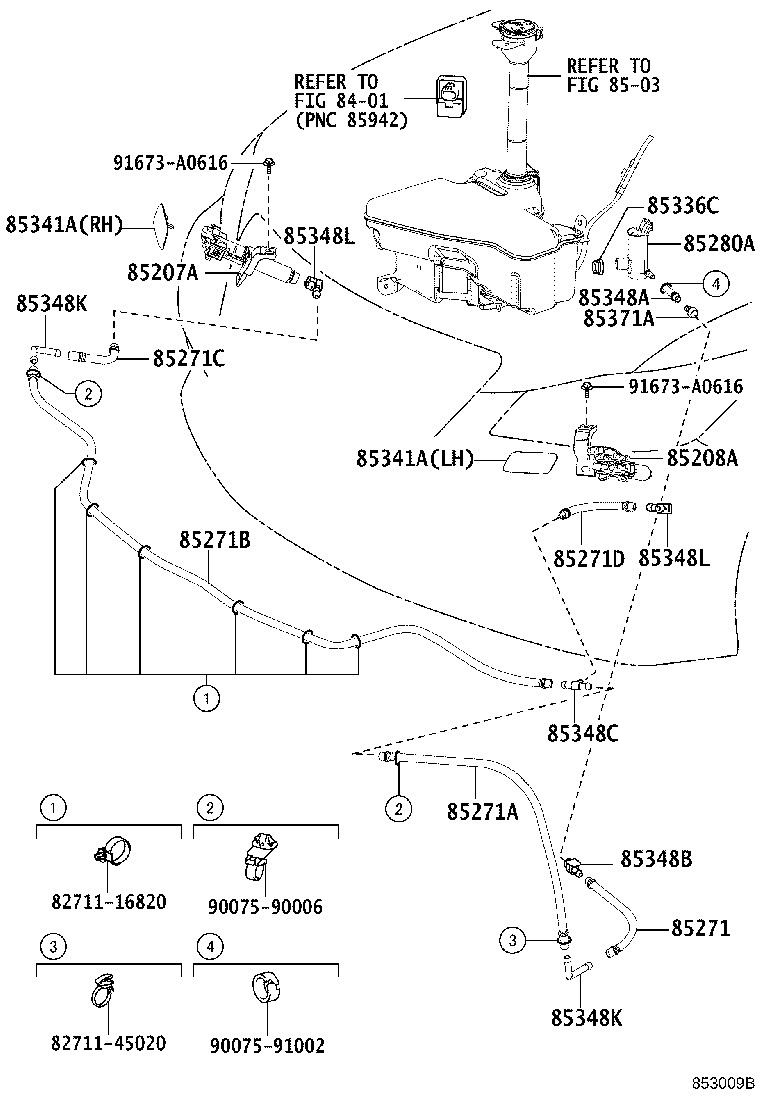

Click highlighted areas on diagram

diagram 8271116820 8271145020 8401 8503 85207A 85208A 85271 85271A 85271B 85271C 85271D 85280A 85336C 85341A 85341A 85348A 85348B 85348C 85348K 85348K 85348L 85348L 85371A 9007590006 9007591002 91673A0616 91673A0616
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-30080

AWS21#,GRS210,211,GWS214..MJ,ROYG

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-30080

AWS21#,GRS210,211,GWS214..MJ,ROYG

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90075-15064

AWS21#,GRS210,211,GWS214..MJ,ROYG

長さ=200

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90075-15088

AWS21#,GRS210,211,GWS214..MJ,ROYG

長さ=400

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90075-15052

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

長さ=1330

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
90075-15055

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

長さ=100

 1
85271D - HOSE, HEADLAMP CLEANER, NO.5
90075-15054

AWS21#,GRS210,211,GWS214..MJ,ROYG

長さ=120

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-47010

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
85336C - PACKING, HEADLAMP CLEANER MOTOR
90099-32089

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85353-30100A0

AWS21#,GRS210,211,GWS214..MJ,ROYG

WHITE PEARL CS.,062,右側

 1
85353-30100B1

AWS21#,GRS210,211,GWS214..MJ,ROYG

PRECIOUS SILVER,1J6,右側

 1
85353-30100C0

AWS21#,GRS210,211,GWS214..MJ,ROYG

BLACK,202,右側

 1
85353-30100B0

AWS21#,GRS210,211,GWS214..MJ,ROYG

SILVER ME.,1F7,右側

 1
85353-30100J0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK.BLUE MC.,8S6,右側

 1
85354-30100B0

AWS21#,GRS210,211,GWS214..MJ,ROYG

SILVER ME.,1F7,左側

 1
85354-30100D0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK. RED M.M.,3Q3,左側

 1
85354-30100J0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK.BLUE MC.,8S6,左側

 1
85354-30100B1

AWS21#,GRS210,211,GWS214..MJ,ROYG

PRECIOUS SILVER,1J6,左側

 1
85354-30100A0

AWS21#,GRS210,211,GWS214..MJ,ROYG

WHITE PEARL CS.,062,左側

 1
85354-30100C0

AWS21#,GRS210,211,GWS214..MJ,ROYG

BLACK,202,左側

 1
85353-30100D0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK. RED M.M.,3Q3,右側

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85353-30100A0

AWS21#,GRS210,211,GWS214..MJ,ROYG

WHITE PEARL CS.,062,右側

 1
85353-30100B1

AWS21#,GRS210,211,GWS214..MJ,ROYG

PRECIOUS SILVER,1J6,右側

 1
85353-30100C0

AWS21#,GRS210,211,GWS214..MJ,ROYG

BLACK,202,右側

 1
85353-30100B0

AWS21#,GRS210,211,GWS214..MJ,ROYG

SILVER ME.,1F7,右側

 1
85353-30100J0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK.BLUE MC.,8S6,右側

 1
85354-30100B0

AWS21#,GRS210,211,GWS214..MJ,ROYG

SILVER ME.,1F7,左側

 1
85354-30100D0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK. RED M.M.,3Q3,左側

 1
85354-30100J0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK.BLUE MC.,8S6,左側

 1
85354-30100B1

AWS21#,GRS210,211,GWS214..MJ,ROYG

PRECIOUS SILVER,1J6,左側

 1
85354-30100A0

AWS21#,GRS210,211,GWS214..MJ,ROYG

WHITE PEARL CS.,062,左側

 1
85354-30100C0

AWS21#,GRS210,211,GWS214..MJ,ROYG

BLACK,202,左側

 1
85353-30100D0

AWS21#,GRS210,211,GWS214..MJ,ROYG

DK. RED M.M.,3Q3,右側

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
90075-15063

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
90075-17011

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
90075-17010

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90075-17013

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 2
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
90075-17013

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 2
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
90075-17009

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 2
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
90075-17009

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 2
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
90075-17012

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

長さ=50

 1
