AWS211-AEXYH (2014)

Toyota Crown/Hybrid

Production Jul 2014 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

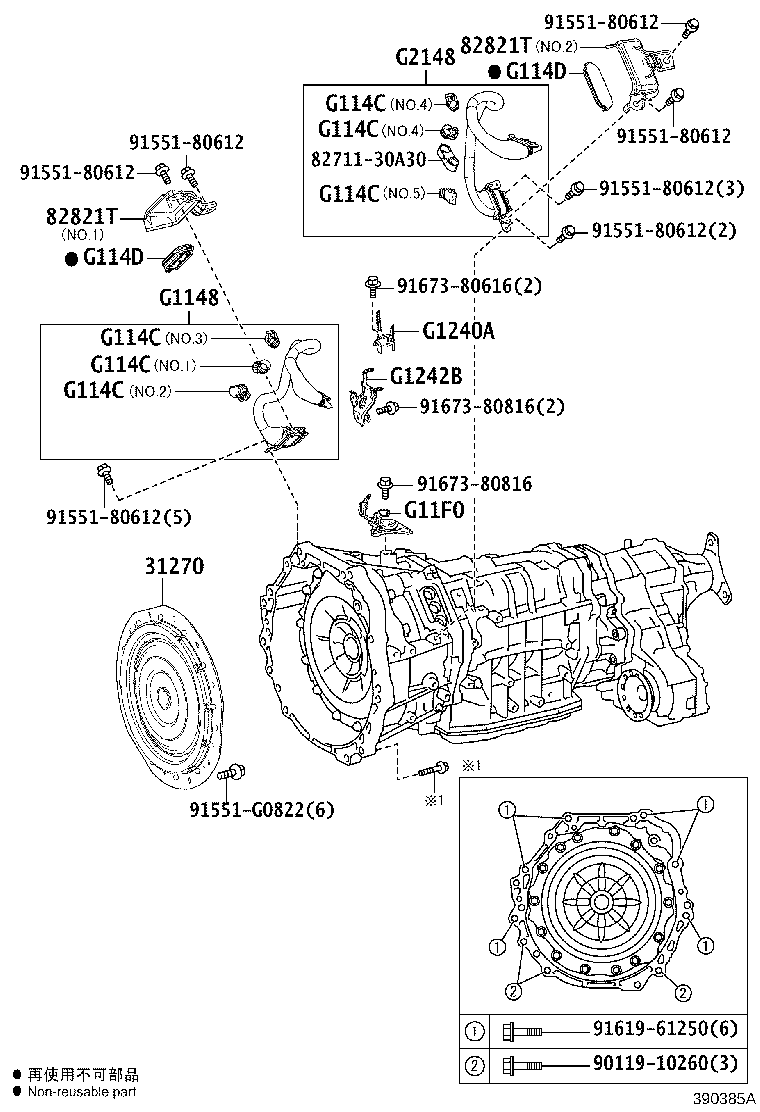

ILLUST NO. 1 OF 2(1407- )AWS211,215

Click highlighted areas on diagram

diagram 31270 8271130A30 82821T 82821T 9011910260 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 9155180612 91551G0822 9161961250 9167380616 9167380816 9167380816 G1148 G114C G114C G114C G114C G114C G114C G114D G114D G11F0 G1240A G1242B G2148
Part # Description Qty Price
Common parts
82711-30A30
90119-10260
91551-80612
91551-G0822
91619-61250
91673-80616
91673-80816

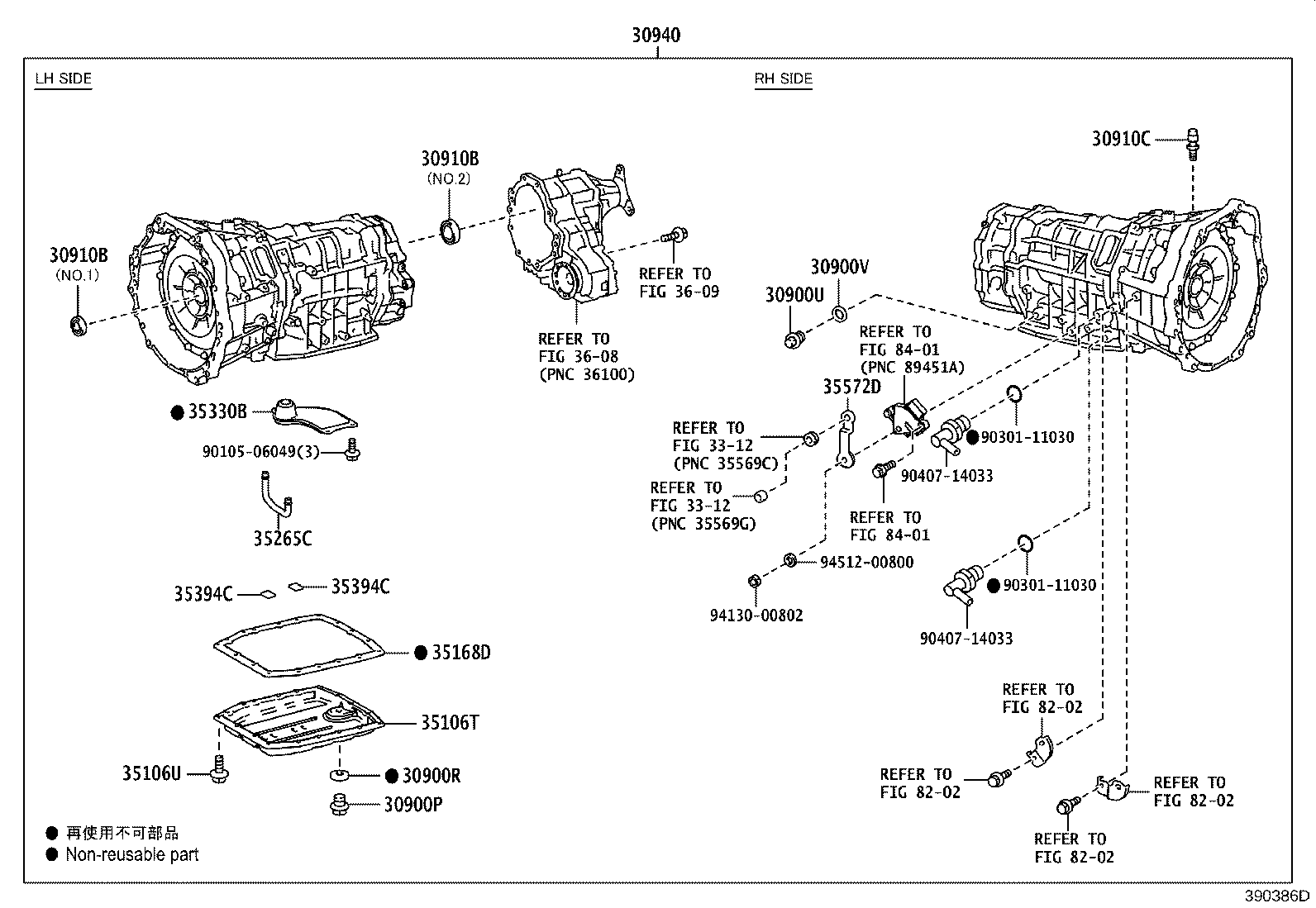

ILLUST NO. 2 OF 2(1407- )AWS211,215

Click highlighted areas on diagram

diagram 30900P 30900R 30900U 30900V 30910B 30910B 30910C 30940 3312 3312 35106T 35106U 35168D 35265C 35330B 35394C 35394C 35572D 3608 3609 8202 8202 8202 8401 8401 9010506049 9030111030 9030111030 9040714033 9040714033 9413000802 9451200800
Part # Description Qty Price
30910B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSMISSION ASSY)
90311-48028

AWS211,215

NO.2

 1
90311-25027

AWS211,215

NO.1

 1
30910B - SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSMISSION ASSY)
90311-48028

AWS211,215

NO.2

 1
90311-25027

AWS211,215

NO.1

 1
30940 - TRANSMISSION ASSY, HYBRID VEHICLE W/TRANSFER
30940-30010

AWS211,215

 1
35572D - LEVER, TRANSMISSION CONTROL SHAFT
35572-30110

AWS211,215

 1
Common parts
90105-06049
90301-11030
90407-14033
94130-00802
94512-00800
Linked diagrams
3312
3608
3609
8202
8401
