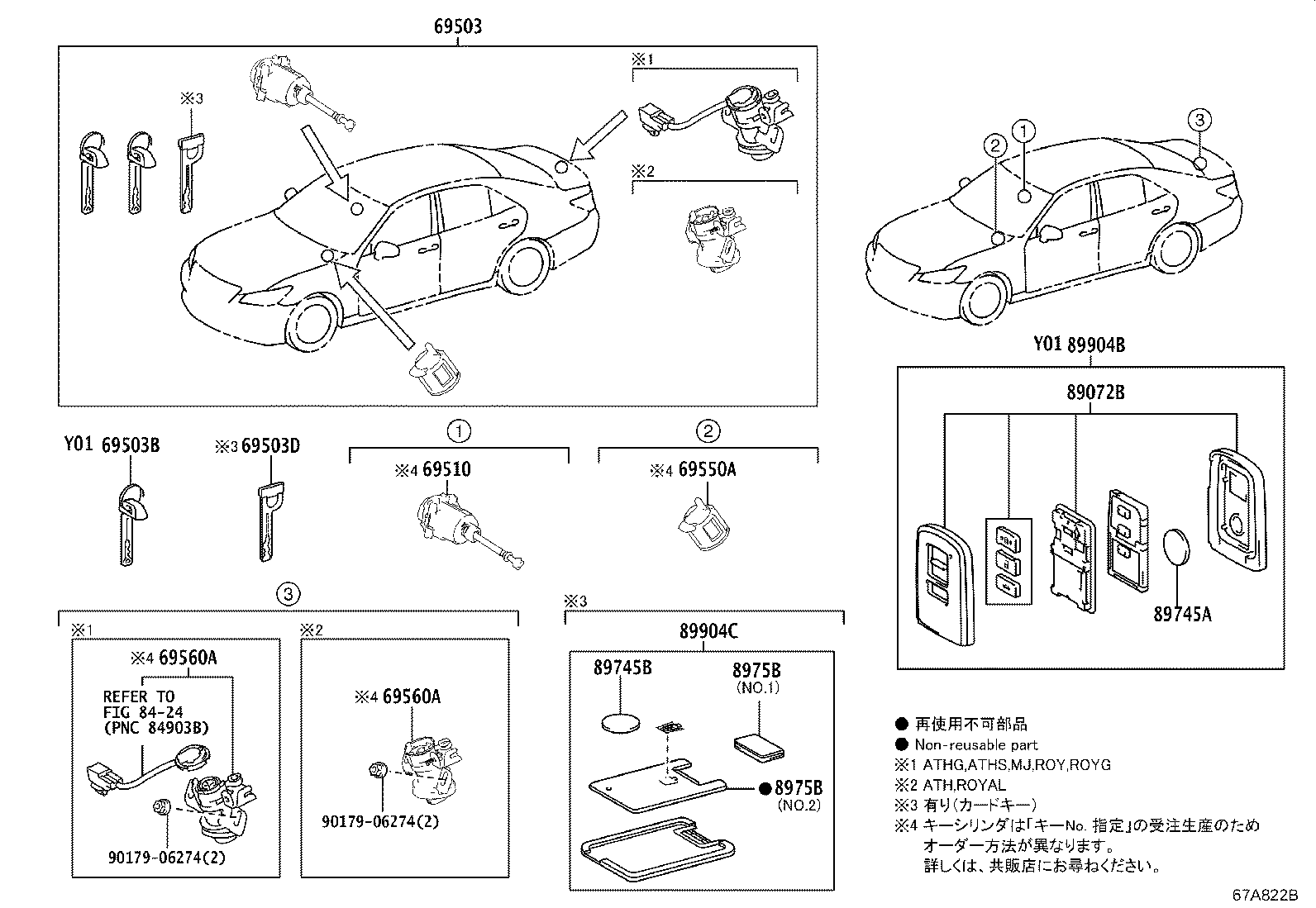

Toyota Crown/hybrid AWS211 LOCK CYLINDER SET

Part #	Description	Period	Qty
69503 - CYLINDER SET, LOCK
69005-30D40	AWS210,211,GRS210,211..ATH,ROYAL	12/2012 - 09/2015	1
69005-30J00	AWS210,211,GRS21#..ATHS,ROY	12/2012 - 09/2015	1
69503B - KEY, CUT
69515-33090	AWS21#,GRS21#,GWS214 ﾏｽﾀｰｷｰ,W(*68)	12/2012 - 09/2015	2
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-30350	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK
69550-50040	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30360	AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG	12/2012 - 09/2015	1
69560-30370	AWS210,211,GRS210,211..ATH,ROYAL	12/2012 - 09/2015	1
69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK
69560-30360	AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG	12/2012 - 09/2015	1
69560-30370	AWS210,211,GRS210,211..ATH,ROYAL	12/2012 - 09/2015	1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-30630	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
89745A - BATTERY, TRANSMITTER
89745-45010	AWS21#,GRS21#,GWS214 CR2032	12/2012 - 09/2015	1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-30F00	AWS210,211,GRS21#	12/2012 - 09/2015	2
Common parts
90179-06274
Linked diagrams
8424

AWS211-AEXXH (2014)
