AWS211-AEXQH (2014)

Toyota Crown/Hybrid

Production Jul 2014 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407- )2ARFSE..AWS211,215

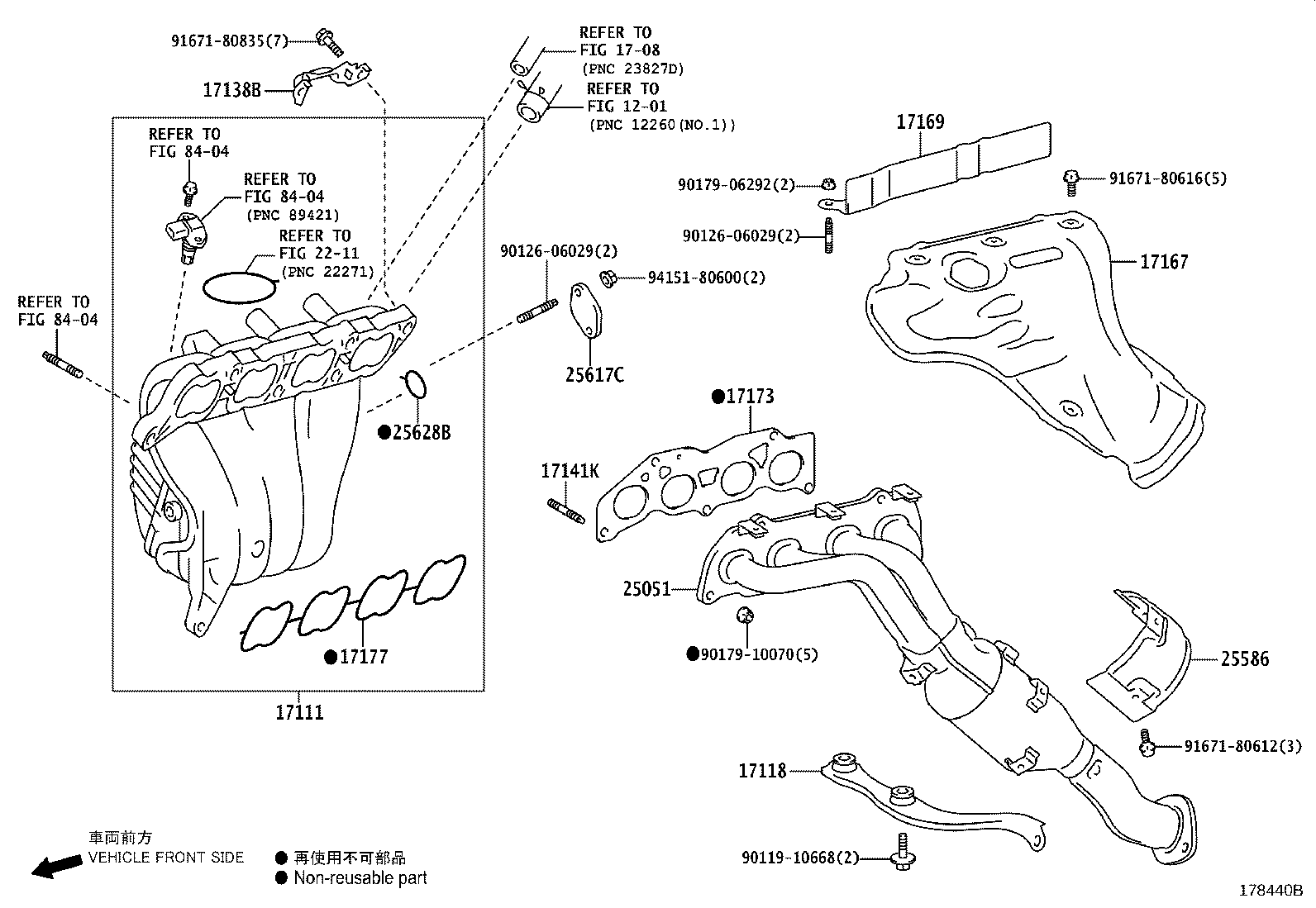

Click highlighted areas on diagram

diagram 1201 1708 17111 17118 17138B 17141K 17167 17169 17173 17177 2211 25051 25586 25617C 25628B 8404 8404 8404 9011910668 9012606029 9012606029 9017906292 9017910070 9167180612 9167180616 9167180835 9415180600
Part # Description Qty Price
17118 - STAY, MANIFOLD
17118-36070

2ARFSE..AWS211,215

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-36050

2ARFSE..AWS211,215

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-36260

2ARFSE..AWS211,215

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-36050

2ARFSE..AWS211,215

 1
25617C - PLATE, EGR HOLE COVER
25617-36010

2ARFSE..AWS211,215

 1
25628B - GASKET, EGR INLET
25628-36020

2ARFSE..AWS211,215

 1
Common parts
90119-10668
90126-06029
90179-06292
90179-10070
91671-80612
91671-80616
91671-80835
94151-80600
Linked diagrams
1201
1708
2211
8404
