AWS210-AEXYH (2013)

Toyota Crown/Hybrid

Production Jan 2013 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )AWS21#

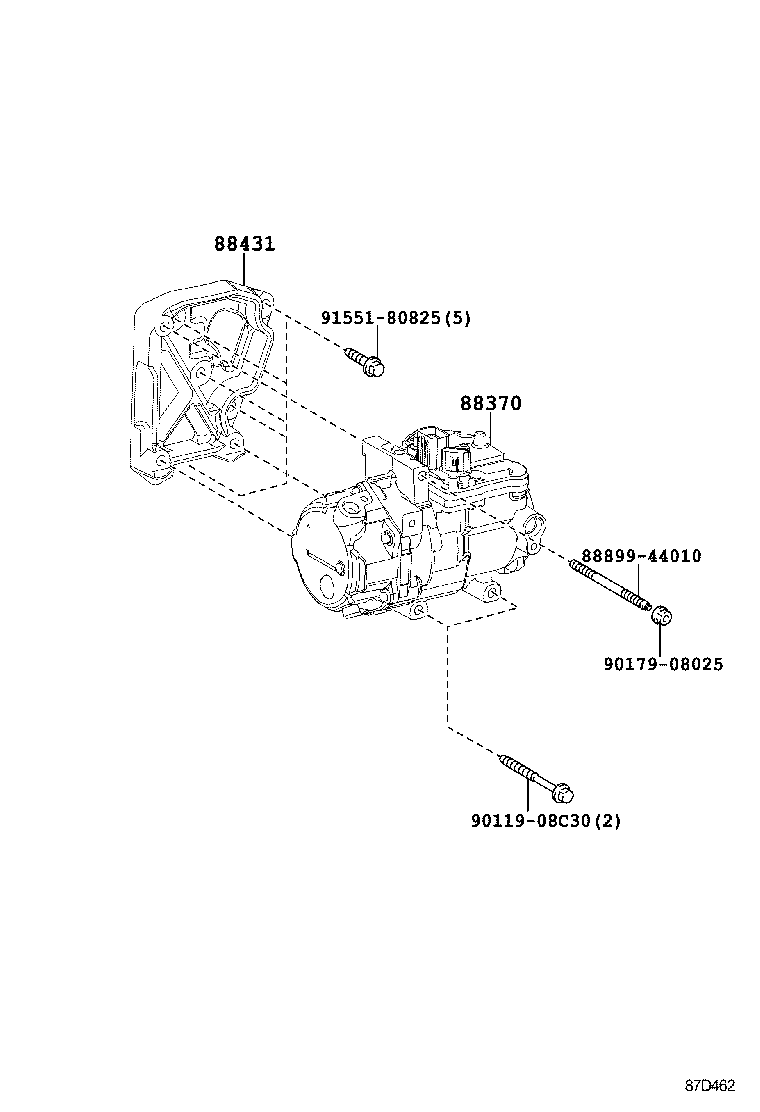

Click highlighted areas on diagram

diagram 88370 88431 8889944010 9011908C30 9017908025 9155180825
Part # Description Qty Price
88370 - COMPRESSOR ASSY, W/MOTOR
88370-33020

AWS210,211,GWS214

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-30010

AWS21#

 1
Common parts
88899-44010
90119-08C30
90179-08025
91551-80825
