AWS210-AEXYH (2013)

Toyota Crown/Hybrid

Production Jan 2013 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1509)ATHG,ATHS,MJ,ROY,ROYG

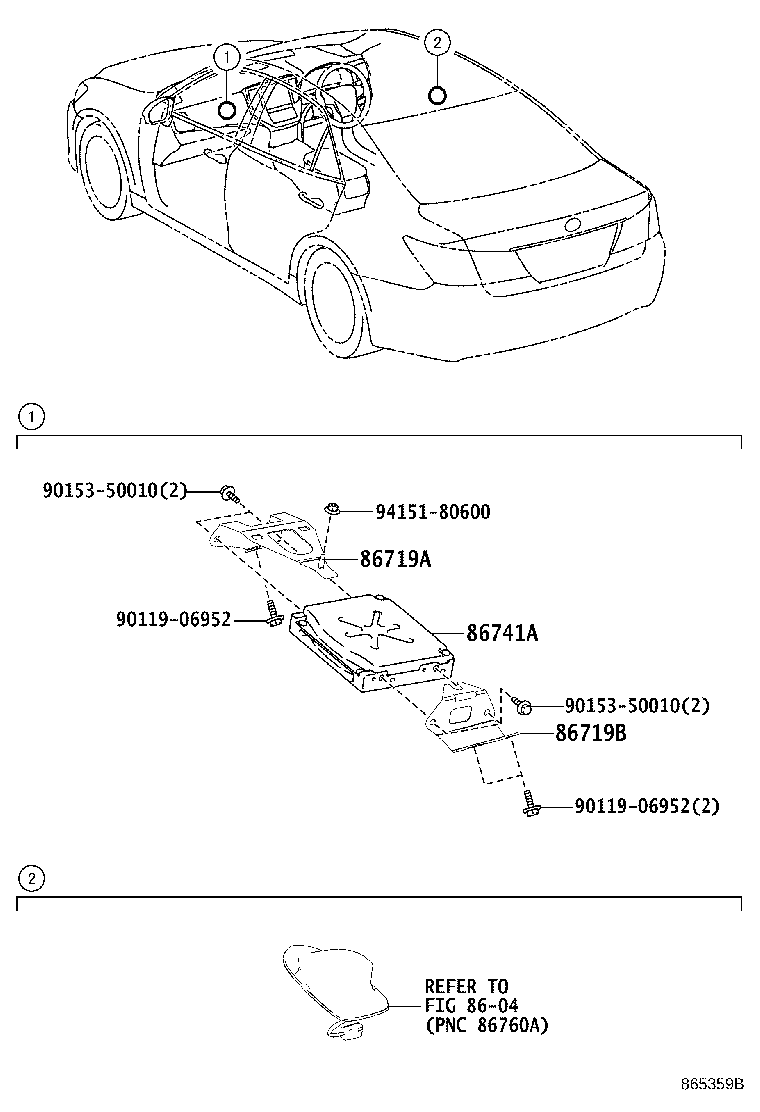

Click highlighted areas on diagram

diagram 8604 86719A 86719B 86741A 9011906952 9011906952 9015350010 9015350010 9415180600
Part # Description Qty Price
86719A - BRACKET, TELEPHONE NO.1
86719-30450

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
86719B - BRACKET, TELEPHONE NO.2
86719-30460

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
86741A - TRANSCEIVER, TELEMATICS
86741-30112

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
86741-30111

AWS210,GRS21#,GWS214..ATHG,MJ,ROYG

 1
Common parts
90119-06952
90153-50010
94151-80600
Linked diagrams
8604
