AWS210-AEXYH (2013)

Toyota Crown/Hybrid

Production Jan 2013 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1212-1509)AWS210,215,GRS21#,GWS214 ; (1212-1509)AWS211..ATHG,ATHS,ROY,ROYG

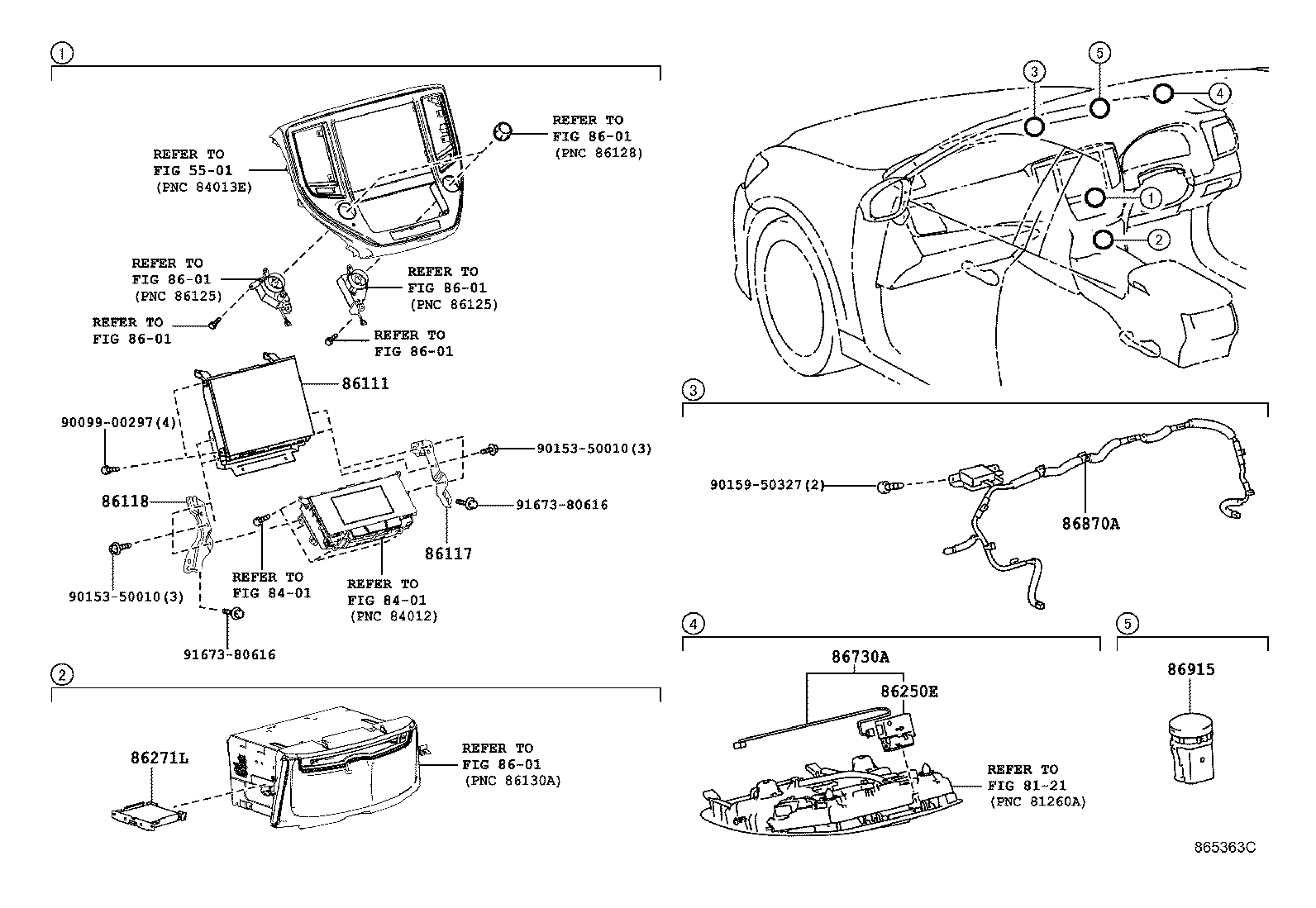

Click highlighted areas on diagram

diagram 5501 8121 8401 8401 8601 8601 8601 8601 8601 8601 86111 86117 86118 86250E 86271L 86730A 86870A 86915 9009900297 9015350010 9015350010 9015950327 9167380616 9167380616
Part # Description Qty Price
86111 - MULTI-DISPLAY
86111-30B70

AWS210,GRS21#..ATHG,ATHS,ROY,ROYG

DENSO

 1
86111-30B71

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

DENSO

 1
86117 - BRACKET, MULTI-DISPLAY CONTROLLER, A
86117-30120

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86118 - BRACKET, MULTI-DISPLAY CONTROLER, B
86118-30080

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86271L - HARD DISC
86271-30662

GRS210,211..ROY,ROYG;AWS210,GRS214..ATHG,ATHS,ROY,ROYG

ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ

 1
86271-30860

AWS210,GRS211..ATHG

ReBORN PINK*(P)

 1
86271-30664

AWS210,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86271-30665

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86271-30666

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86271-30662

AWS210,GRS21#..ATHG,ATHS,ROY,ROYG

 1
86271-30663

AWS210,GRS21#..ATHG,ATHS,ROY,ROYG

 1
86271-30667

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-30160

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86870A - ANTENNA ASSY, GPS & VICS
86880-30070

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

ETC−有り(VICS)

 1
86880-30080

AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
86880-30070

GRS210,211..ROYG;AWS210,211,GRS214..ATHG,ROYG

ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ&ETC−有り(VICS)

 1
86915 - TRANSCEIVER, OPTICAL BEACON
86915-60010

GRS210,211..ROYG;AWS210,211,GRS214..ATHG,ROYG

ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ&ETC−有り(VICS)

 1
86915-60010

GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG

ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ

 1
Common parts
90099-00297
90153-50010
90159-50327
91673-80616
Linked diagrams
5501
8121
8401
8601
