AWS210-AEXXH (2013)
Toyota Crown/Hybrid

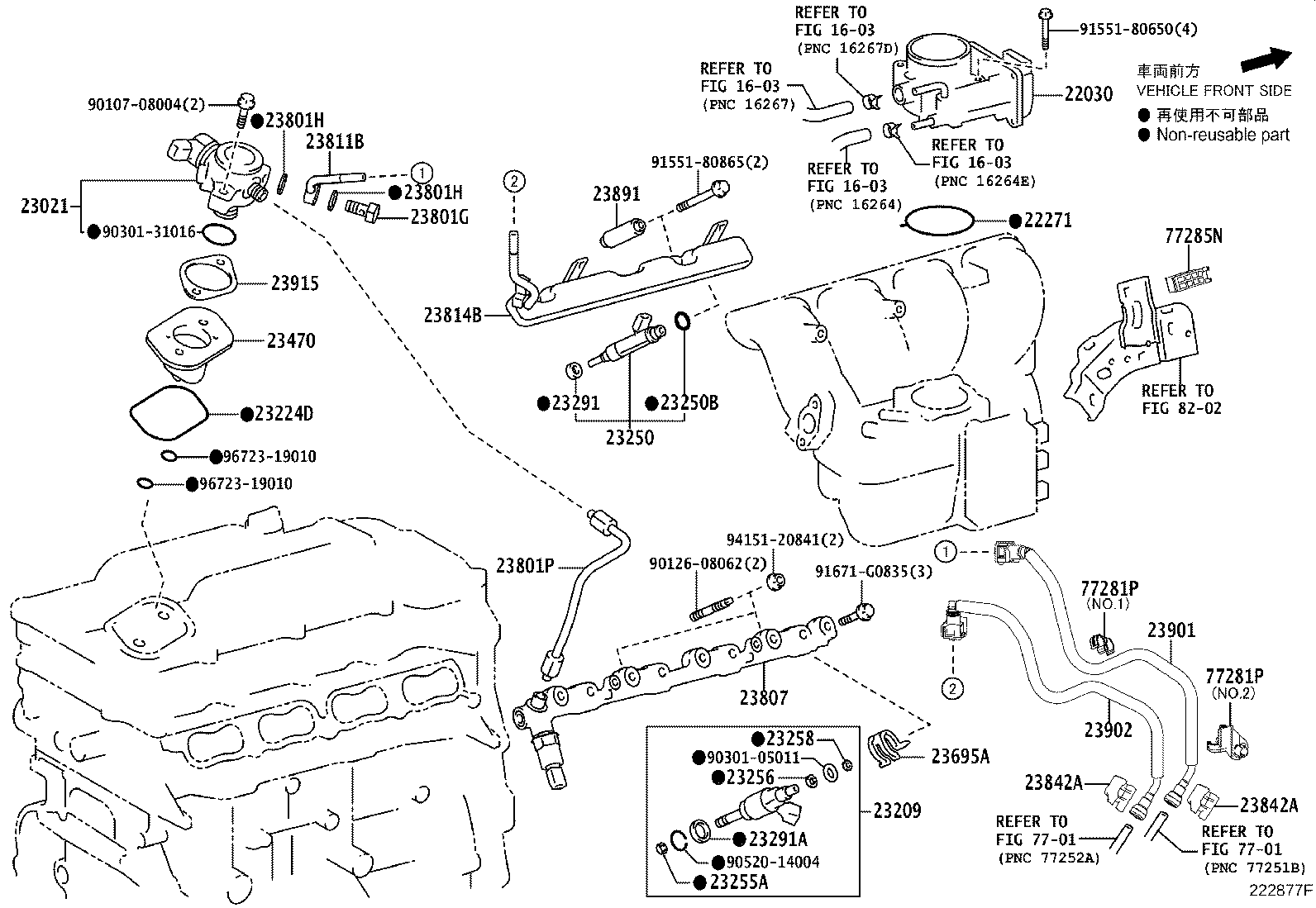

(1301-1312)2ARFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-36030 |
2ARFSE..AWS21# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-36030 |
2ARFSE..AWS21# |
1 | ||
| 23021 - PUMP SUB-ASSY, FUEL W/SEAL | ||||
| 23021-36010 |
2ARFSE..AWS21# |
1 | ||
| 23209 - INJECTOR SET, FUEL | ||||
| 23209-3115001 |
2ARFSE..AWS21# MARK 1,修理書参照 |
4 | ||
| 23209-3115003 |
2ARFSE..AWS21# MARK 3,修理書参照 |
4 | ||
| 23209-3115002 |
2ARFSE..AWS21# MARK 2,修理書参照 |
4 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-36010 |
2ARFSE..AWS21# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-39275 |
2ARFSE..AWS21# |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2ARFSE..AWS21# |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-31020 |
2ARFSE..AWS21# |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-31010 |
2ARFSE..AWS21# |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-31010 |
2ARFSE..AWS21# |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
2ARFSE..AWS21# |
4 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31020 |
2ARFSE..AWS21# |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23460-36010 |
2ARFSE..AWS21# |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-31020 |
2ARFSE..AWS21# |
4 | ||
| 23801G - BOLT, UNION(FOR FUEL PIPE) | ||||
| 90401-12041 |
2ARFSE..AWS210 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-13006 |
2ARFSE..AWS210 |
2 | ||
| 23232-41081 |
2ARFSE..AWS21# |
1 | ||
| 90430-12026 |
2ARFSE..AWS21# |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-13006 |
2ARFSE..AWS210 |
2 | ||
| 23232-41081 |
2ARFSE..AWS21# |
1 | ||
| 90430-12026 |
2ARFSE..AWS21# |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-36020 |
2ARFSE..AWS21# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23800-36010 |
2ARFSE..AWS210 |
1 | ||
| 23800-36011 |
2ARFSE..AWS21# |
1 | ||
| 23811B - PIPE, FUEL, NO.1 | ||||
| 23811-36030 |
2ARFSE..AWS210 |
1 | ||
| 23811-36041 |
2ARFSE..AWS21# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 23811-36040 |
2ARFSE..AWS21# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23811-36020 |
2ARFSE..AWS210 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-36060 |
2ARFSE..AWS21# |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
2ARFSE..AWS21# |
2 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
2ARFSE..AWS21# |
2 | ||
| 23891 - SPACER, FUEL DELIVERY | ||||
| 23891-36020 |
2ARFSE..AWS21# |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-36090 |
2ARFSE..AWS210 |
1 | ||
| 23901-36091 |
2ARFSE..AWS21# |
1 | ||
| 23902 - TUBE SUB-ASSY, FUEL | ||||
| 23902-36010 |
2ARFSE..AWS21# |
1 | ||
| 23915 - INSULATOR, FUEL PUMP | ||||
| 23915-31010 |
2ARFSE..AWS21# |
1 | ||
| 77281P - CLAMP, FUEL HOSE | ||||
| 77281-30150 |
AWS21# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77281-50040 |
AWS21# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77281P - CLAMP, FUEL HOSE | ||||
| 77281-30150 |
AWS21# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77281-50040 |
AWS21# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77285N - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30340 |
AWS21# |
1 | ||
| Common parts | ||||
| 90107-08004 | ||||
| 90126-08062 | ||||
| 90301-05011 | ||||
| 90301-31016 | ||||
| 90520-14004 | ||||
| 91551-80650 | ||||
| 91551-80865 | ||||
| 91671-G0835 | ||||
| 94151-20841 | ||||
| 96723-19010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
| 8202 | ||||

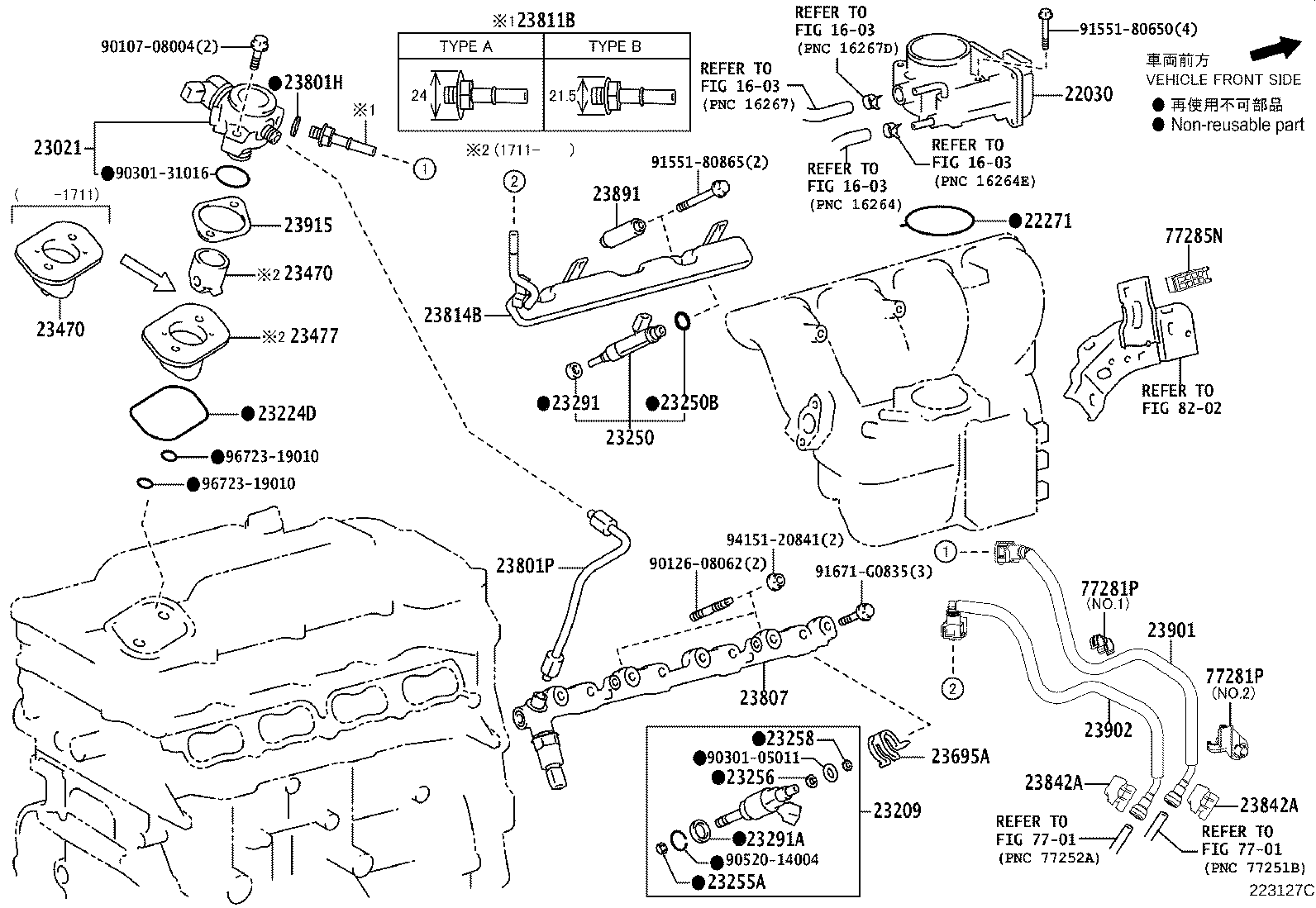

(1312- )2ARFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-36030 |
2ARFSE..AWS21# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-36030 |
2ARFSE..AWS21# |
1 | ||
| 23021 - PUMP SUB-ASSY, FUEL W/SEAL | ||||
| 23021-36010 |
2ARFSE..AWS21# |
1 | ||
| 23209 - INJECTOR SET, FUEL | ||||
| 23209-3115001 |
2ARFSE..AWS21# MARK 1,修理書参照 |
4 | ||
| 23209-3115003 |
2ARFSE..AWS21# MARK 3,修理書参照 |
4 | ||
| 23209-3115002 |
2ARFSE..AWS21# MARK 2,修理書参照 |
4 | ||
| 23224D - GASKET, FUEL PUMP SPACER | ||||
| 23224-36010 |
2ARFSE..AWS21# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-39275 |
2ARFSE..AWS21# |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2ARFSE..AWS21# |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-31020 |
2ARFSE..AWS21# |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-31010 |
2ARFSE..AWS21# |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-31010 |
2ARFSE..AWS21# |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-28020 |
2ARFSE..AWS21# |
4 | ||
| 23291A - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-31020 |
2ARFSE..AWS21# |
4 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23460-36010 |
2ARFSE..AWS21# |
1 | ||
| 23470 - LIFTER ASSY, FUEL PUMP | ||||
| 23460-36010 |
2ARFSE..AWS21# |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-31020 |
2ARFSE..AWS21# |
4 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-13006 |
2ARFSE..AWS210 |
2 | ||
| 23232-41081 |
2ARFSE..AWS21# |
1 | ||
| 90430-12026 |
2ARFSE..AWS21# |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-36020 |
2ARFSE..AWS21# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23800-36010 |
2ARFSE..AWS210 |
1 | ||
| 23800-36011 |
2ARFSE..AWS21# |
1 | ||
| 23811B - PIPE, FUEL, NO.1 | ||||
| 23811-36030 |
2ARFSE..AWS210 |
1 | ||
| 23811-36041 |
2ARFSE..AWS21# TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 23811-36040 |
2ARFSE..AWS21# TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 23811-36020 |
2ARFSE..AWS210 |
1 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-36060 |
2ARFSE..AWS21# |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
2ARFSE..AWS21# |
2 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-22020 |
2ARFSE..AWS21# |
2 | ||
| 23891 - SPACER, FUEL DELIVERY | ||||
| 23891-36020 |
2ARFSE..AWS21# |
2 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-36090 |
2ARFSE..AWS210 |
1 | ||
| 23901-36091 |
2ARFSE..AWS21# |
1 | ||
| 23902 - TUBE SUB-ASSY, FUEL | ||||
| 23902-36010 |
2ARFSE..AWS21# |
1 | ||
| 23915 - INSULATOR, FUEL PUMP | ||||
| 23915-31010 |
2ARFSE..AWS21# |
1 | ||
| 77281P - CLAMP, FUEL HOSE | ||||
| 77281-30150 |
AWS21# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77281-50040 |
AWS21# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77281P - CLAMP, FUEL HOSE | ||||
| 77281-30150 |
AWS21# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 77281-50040 |
AWS21# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 77285N - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30340 |
AWS21# |
1 | ||
| Common parts | ||||
| 90107-08004 | ||||
| 90126-08062 | ||||
| 90301-05011 | ||||
| 90301-31016 | ||||
| 90520-14004 | ||||
| 91551-80650 | ||||
| 91551-80865 | ||||
| 91671-G0835 | ||||
| 94151-20841 | ||||
| 96723-19010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 7701 | ||||
| 8202 | ||||
