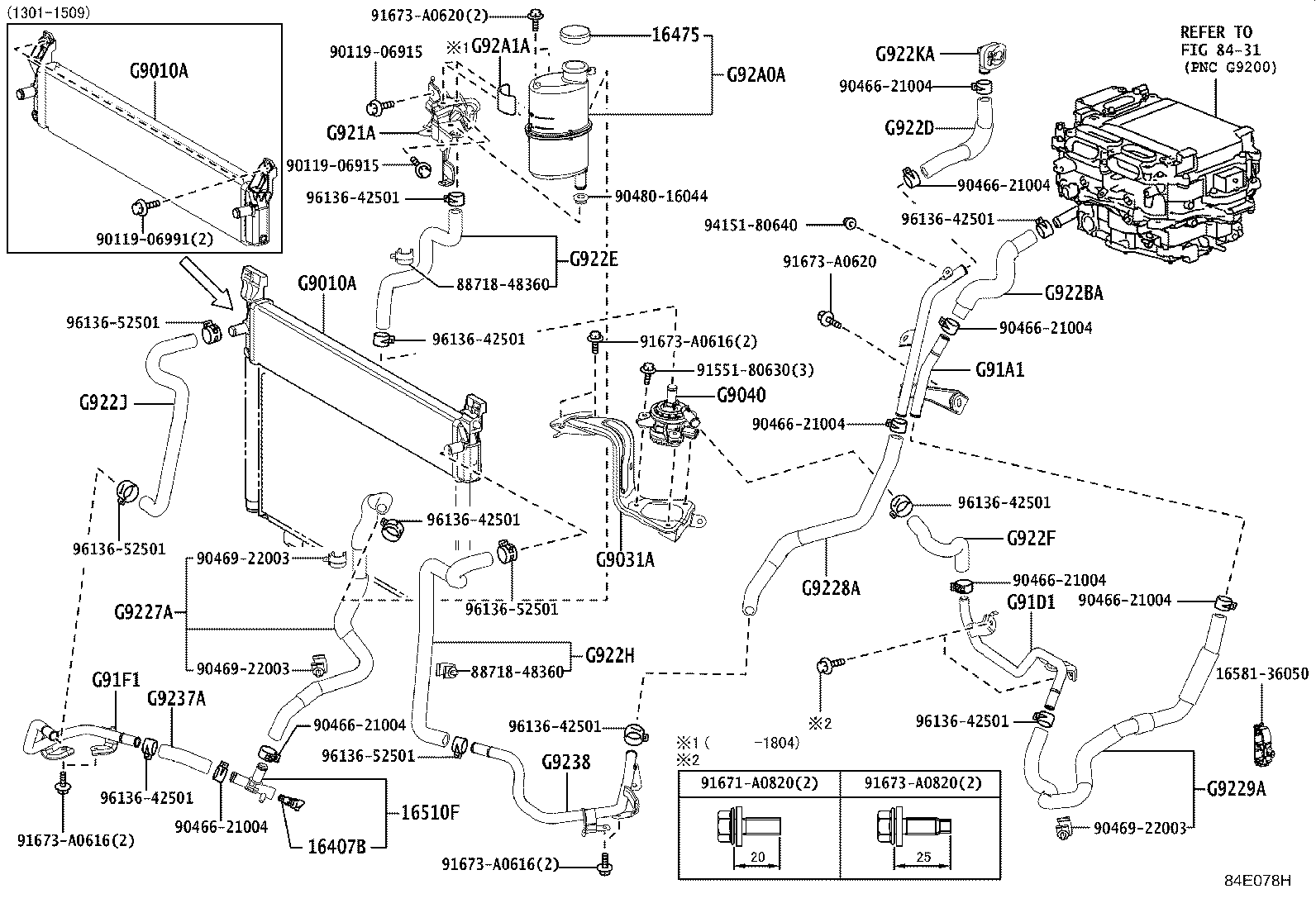

Toyota Crown/hybrid AWS210 INVERTER COOLING

Part #	Description	Period	Qty
16407B - COCK SUB-ASSY, RADIATOR DRAIN
16407-64010	2ARFSE..AWS21#	01/2013 - 09/2015	1
16475 - CAP, RESERVE TANK
16475-37010	2ARFSE,2GRFXE..AWS21#,GWS214	01/2013 - 11/2014	1
16475-37011	2ARFSE,2GRFXE..AWS21#,GWS214	11/2014 - 09/2015	1
16510F - COCK ASSY, DRAIN
90910-09134	2ARFSE..AWS21#	01/2013 - 09/2015	1
G9010A - RADIATOR ASSY
G9010-30050	AWS21#,GWS214	01/2013 - 09/2015	1
G9010A - RADIATOR ASSY
G9010-30050	AWS21#,GWS214	01/2013 - 09/2015	1
G9031A - BRACKET SUB-ASSY, HV WATER PUMP
G9141-30050	AWS21#	01/2013 - 09/2015	1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-33030	AWS21#	01/2013 - 09/2015	1
G91A1 - PIPE, INVERTER COOLING, INLET
G91A1-30020	AWS21#	01/2013 - 09/2015	1
G91D1 - PIPE, HV WATER PUMP OUTLET, NO.1
G91D1-30030	AWS21#	01/2013 - 09/2015	1
G91F1 - PIPE, HV RADIATOR OUTLET
G91F1-30020	AWS210,211	01/2013 - 09/2015	1
G921A - BRACKET, INVERTER RESERVE TANK, NO.1
G91H2-30010	AWS21#	01/2013 - 09/2015	1
G9227A - HOSE, INVERTER COOLING, NO.3
G9227-30030	AWS21#	01/2013 - 09/2015	1
G9228A - HOSE, INVERTER COOLING, NO.4
G9228-30030	AWS210	01/2013 - 09/2015	1
G9229A - HOSE, INVERTER COOLING, NO.5
G9229-30040	AWS210	01/2013 - 09/2015	1
G922BA - HOSE, INVERTER COOLING INLET, NO.2
G922B-30020	AWS21#	01/2013 - 09/2015	1
G922D - HOSE, INVERTER COOLING OUTLET, NO.2
G922D-30020	AWS21#	01/2013 - 09/2015	1
G922E - HOSE, HYBRID WATER PUMP INLET
G922E-30020	AWS21#	01/2013 - 09/2015	1
G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1
G922F-30030	AWS21#	01/2013 - 09/2015	1
G922H - HOSE, HYBRID RADIATOR INLET
G922H-30020	AWS21#,GWS214	01/2013 - 09/2015	1
G922J - HOSE, HYBRID RADIATOR OUTLET
G922J-30020	AWS21#,GWS214	01/2013 - 09/2015	1
G922KA - CONNECTOR, HYBRID WATER HOSE, NO.1
G922K-47011	AWS21#,GWS214	01/2013 - 09/2015	1
G9237A - HOSE, INVERTER DRAIN
G9237-30030	AWS21#	01/2013 - 09/2015	1
G9238 - PIPE, INVERTER COOLING
G9238-30020	AWS210,211	01/2013 - 09/2015	1
G92A0A - TANK ASSY, INVERTER RESERVE
G91H0-30010	AWS21#	01/2013 - 10/2014	1
G91H0-30011	AWS21#	11/2014 - 09/2015	1
G92A1A - LABEL, HYBRID COOLANT SYSTEM INFORMATION
G92A1-76010	AWS21#,GWS214	01/2013 - 09/2015	1
Common parts
16581-36050
88718-48360
90119-06915
90119-06991
90466-21004
90469-22003
90480-16044
91551-80630
91671-A0820
91673-A0616
91673-A0620
91673-A0820
94151-80640
96136-42501
96136-52501
Linked diagrams
8431

AWS210-AEXUH (2013)

(1301- )AWS210
