AWS210-AEXUH (2013)
Toyota Crown/Hybrid

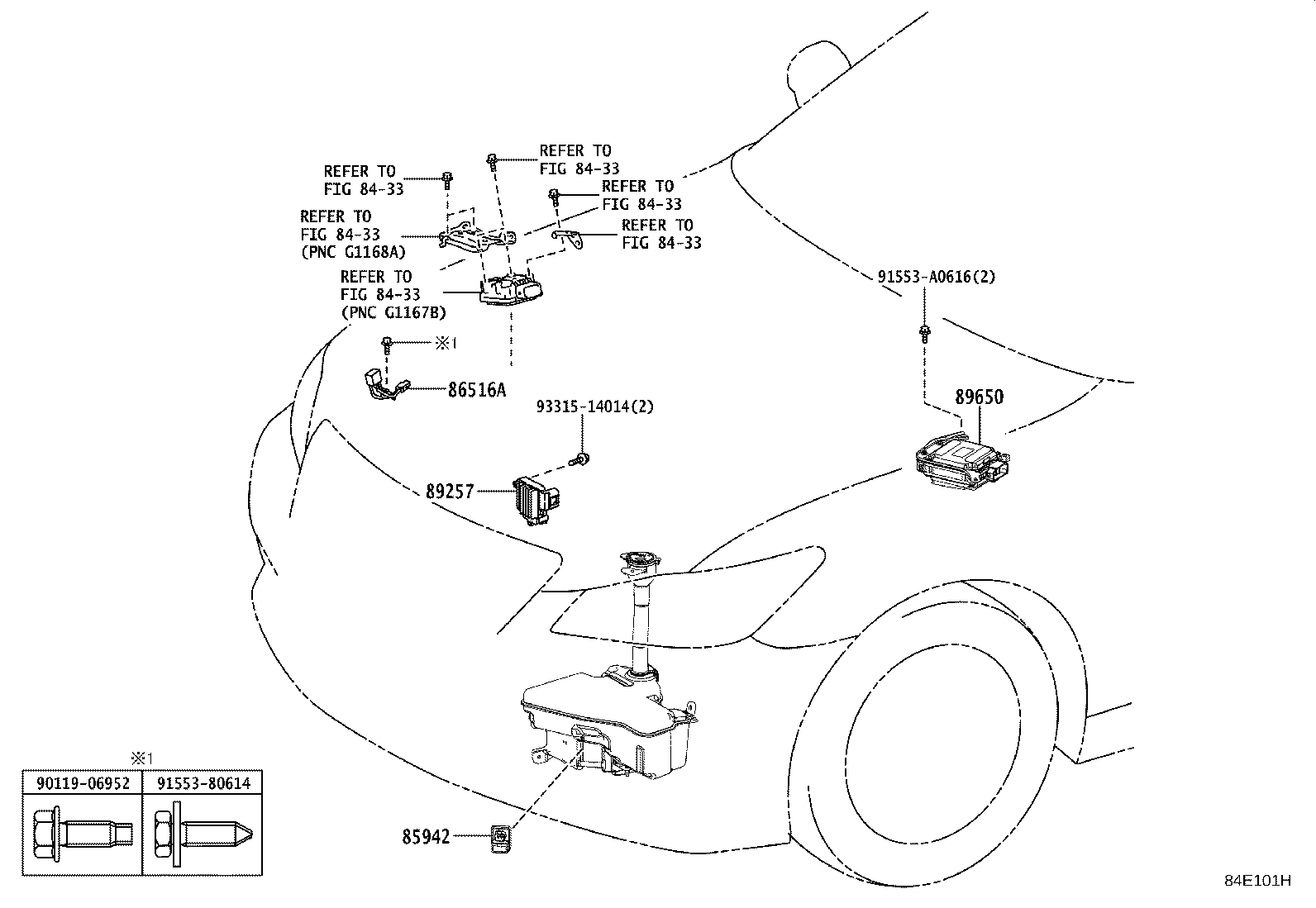

ILLUST NO. 2 OF 8(1212-1509)AWS21#,GWS214
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30040 |
AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 86516A - CONDENSER | ||||
| 82930-30060 |
AWS21#,GWS214 |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30110 |
AWS21#,GWS214 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30A90 |
AWS210 JTEKT/DENSO |
1 | ||
| 89650-30A90 |
AWS210 JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 91553-80614 | ||||
| 91553-A0616 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 8433 | ||||

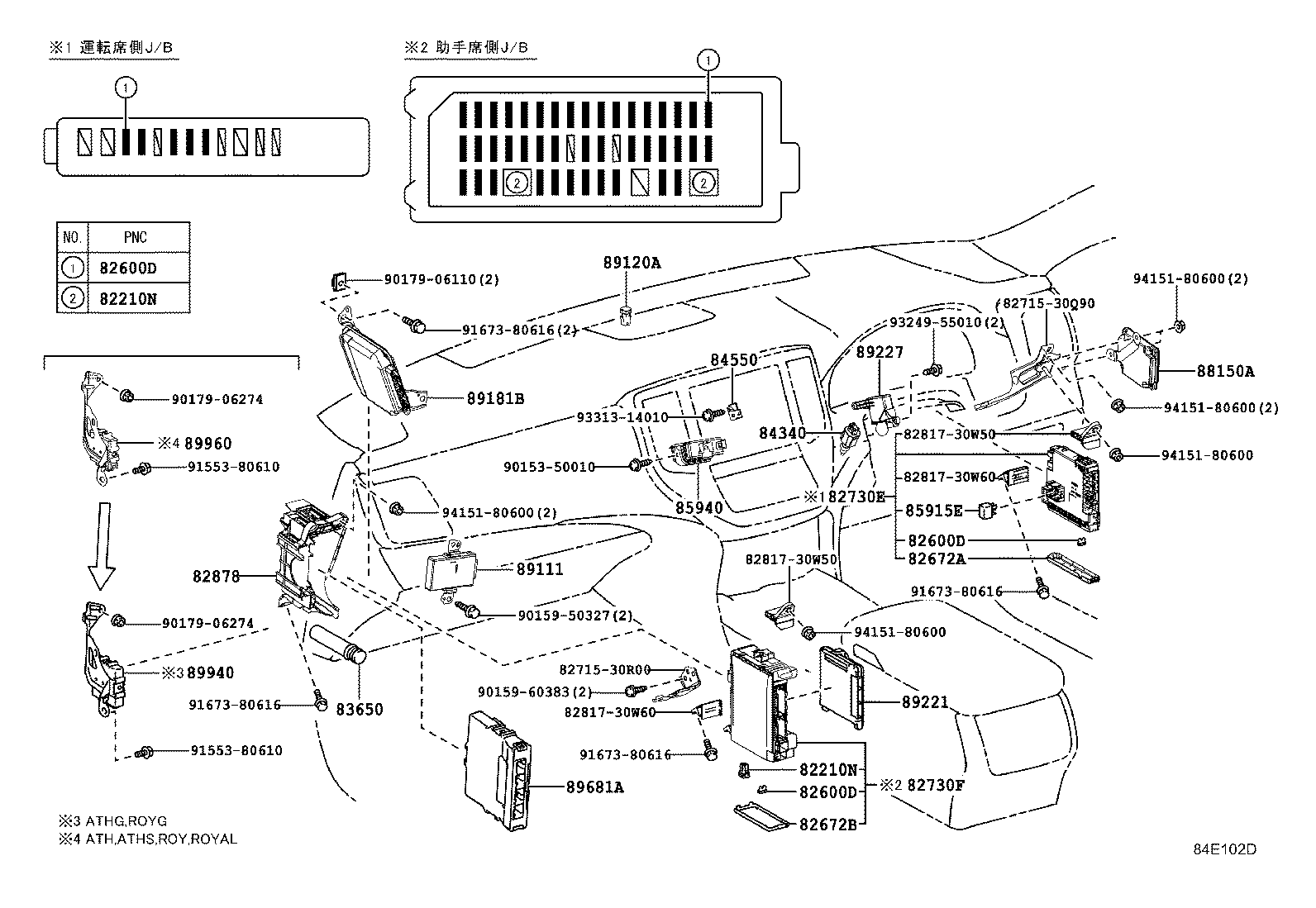

ILLUST NO. 4 OF 8(1212-1509)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30420 |
AWS21#,GRS210,211..MJ,ROYG |
1 | ||
| 82672-30420 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-30430 |
AWS210,211,GRS21# |
1 | ||
| 82730E - BLOCK ASSY, JUNCTION, RH | ||||
| 82730-30J00 |
AWS21#,GRS210,211..MJ,ROYG |
1 | ||
| 82730-30J00 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-30J10 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 82730-30J20 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82730-30J20 |
AWS210,211,GRS21#..ATH,ATHG,ROYAL,ROYG |
1 | ||
| 82730-30J20 |
AWS210,211..ROY “Black Style”*(A) |
1 | ||
| 82730-30J20 |
AWS210,211..ROY “Black Style”*(A)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 85915E - RELAY | ||||
| 90987-02027 |
AWS21#,GRS210,211..MJ,ROYG |
1 | ||
| 90987-02027 |
AWS210,211,GRS210,211..ROY ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30150 |
AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 85940-30150 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-30142 |
AWS210..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−30142 |
1 | ||
| 88150-30141 |
AWS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−301S1 |
1 | ||
| 88150-30141 |
AWS210..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−30141 |
1 | ||
| 88150-30143 |
AWS210..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−30143 |
1 | ||
| 88150-30143 |
AWS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−301S3 |
1 | ||
| 88150-30142 |
AWS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾘﾔｺﾝﾌｫｰﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−301S2 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-30151 |
AWS210,GRS210..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89100-30160 |
AWS210,211,GRS210..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-30D00 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 89220-30D10 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 89220-30D10 |
AWS210,211..ROY “Black Style”*(A) |
1 | ||
| 89220-30D10 |
AWS210,211..ROY “Black Style”*(A)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 89220-30D01 |
AWS210,211,GRS21#..ATHS,ROY |
1 | ||
| 89220-30D11 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 89220-30D11 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 89220-30D11 |
AWS210,211..ROY “Black Style”*(A)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 89220-30D11 |
AWS210,211..ROY “Black Style”*(A) |
1 | ||
| 89220-30D10 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30070 |
GRS210,211..ATHG,ROYG;AWS21#,GRS214,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 89227-30070 |
AWS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89681-30080 |
AWS210..ROY,ROYAL,ROYG |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-30220 |
AWS210,211,GRS210,211..ROYG |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30170 |
AWS210,GRS210,211..ROY,ROYAL |
1 | ||
| 89960-30220 |
AWS210,211,GRS210,211..ROY,ROYAL |
1 | ||
| Common parts | ||||
| 82715-30Q90 | ||||
| 82715-30R00 | ||||
| 82817-30W50 | ||||
| 82817-30W60 | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91673-80616 | ||||
| 93249-55010 | ||||
| 93313-14010 | ||||
| 94151-80600 | ||||

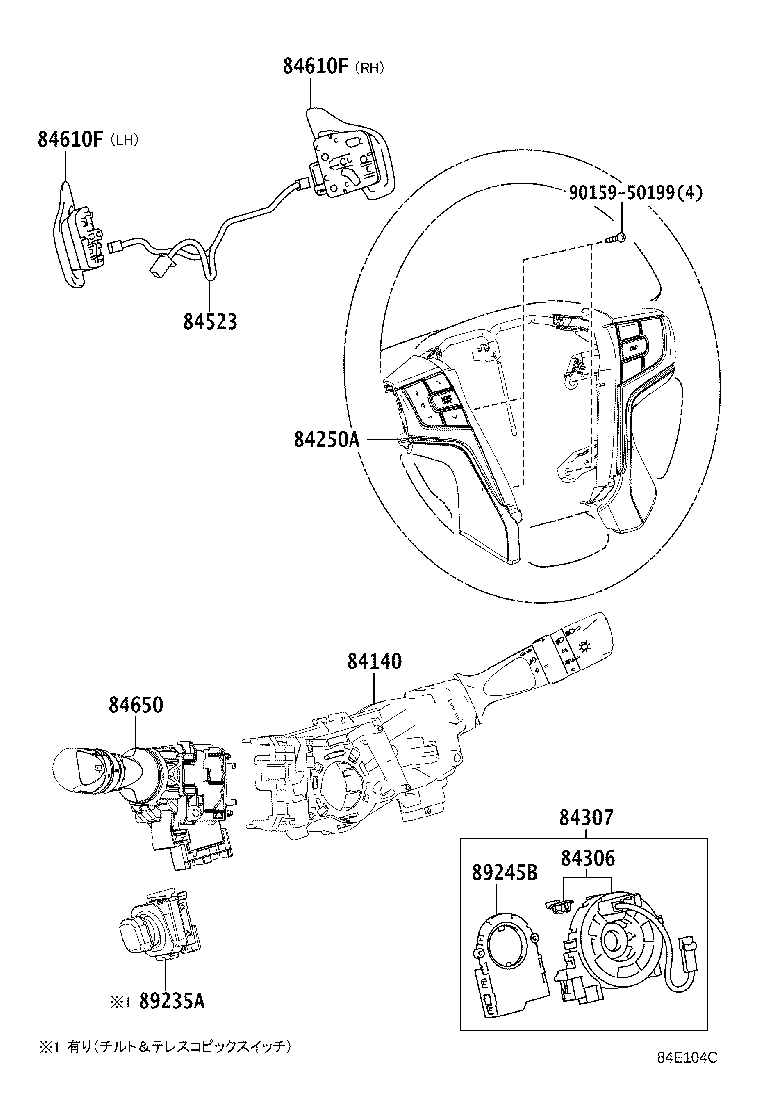

ILLUST NO. 6 OF 8(1212-1509)
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33230 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84140-33220 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-30280C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG BLACK,TRIM0#,4# |
1 | ||
| 84250-30550C0 |
AWS210,211..ROYG;GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,4# |
1 | ||
| 84250-30550C0 |
AWS210,211..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,2#,4# |
1 | ||
| 84250-30290C0 |
AWS210,211,GRS210,211..ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し,BLACK,TRIM0#,4# |
1 | ||
| 84250-30280C0 |
AWS210,211..ROY BLACK,TRIM0#,2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-30020 |
AWS21#,GWS214 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-30180 |
AWS21#..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 84307-30200 |
AWS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−無し |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33500 |
AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 84652-33500 |
AWS210,211,GRS21#..ATHS,ROY ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 84652-30700 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GRS210,211..ATHG,ROYG;AWS21#,GRS214,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 89235-33010 |
AWS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-39055 |
AWS21#,GRS210,211..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 8924B-33010 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

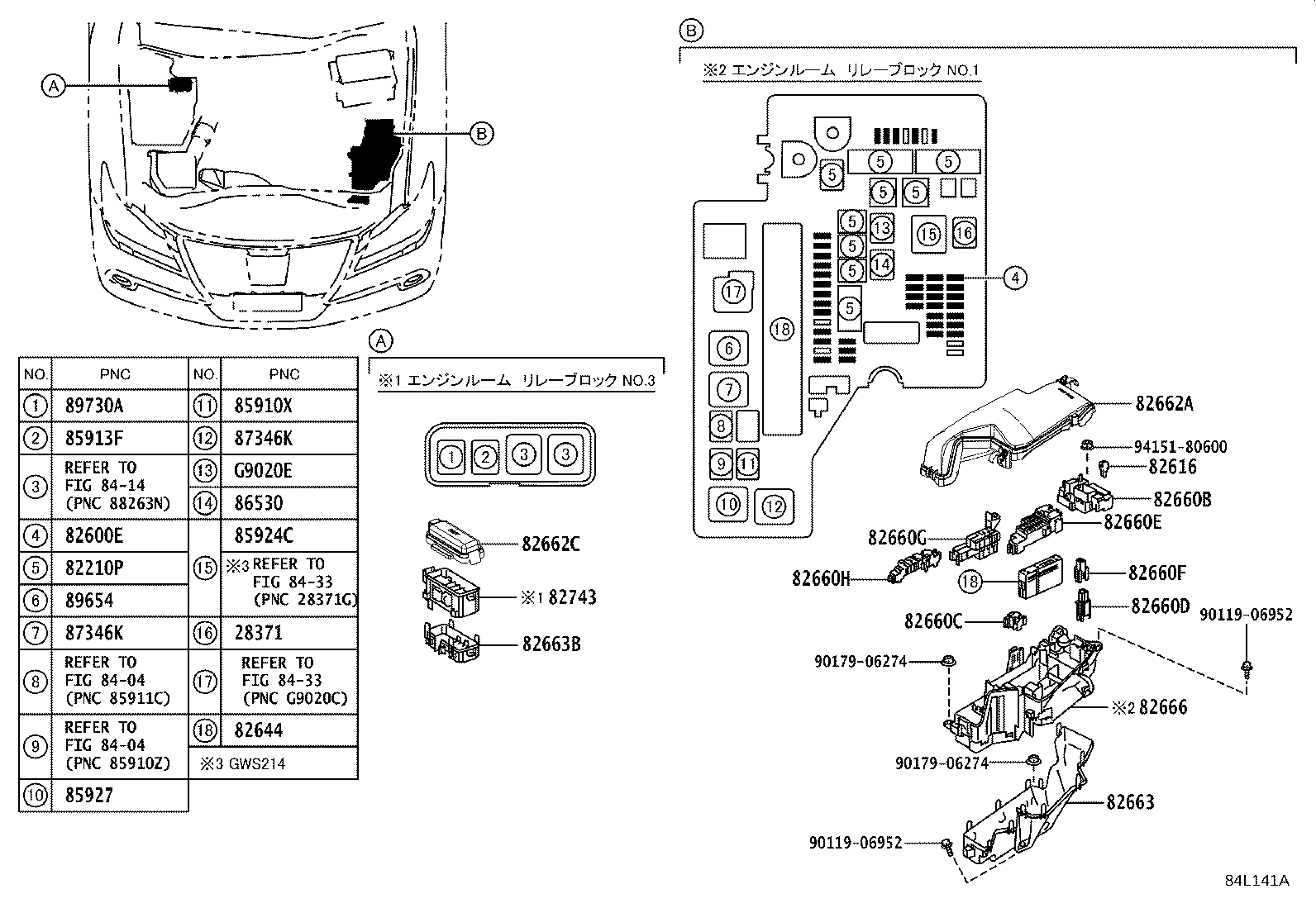

ILLUST NO. 3 OF 8(1212-1509)AWS21#,GWS214
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08305 |
AWS21#,GRS21# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08302 |
AWS21#,GRS21# 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08294 |
AWS21#,GRS21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08301 |
AWS21#,GRS21# 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08274 |
AWS21# 120A,ｵｽ端子,白 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AWS21#,GRS21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
AWS21#,GRS21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
AWS21#,GRS21#,GWS214 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-30010 |
AWS210 |
1 | ||
| 82644-30011 |
AWS21# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30B40 |
AWS21# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-30C00 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-30C30 |
AWS21#,GWS214 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-30D50 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-30C40 |
AWS21#,GWS214 |
1 | ||
| 82660H - BLOCK ASSY, RELAY | ||||
| 82660-30C50 |
AWS21#,GWS214 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30A20 |
AWS21# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30C50 |
AWS21#,GWS214 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30350 |
AWS21#,GWS214 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30C20 |
AWS21#,GWS214 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
AWS210,GRS210,211..ROY ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞｰﾄﾞｱ−有り(ﾗｹﾞｰｼﾞｸﾛｰｻﾞｰ) |
1 | ||
| 90987-02027 |
AWS210,211,GRS21#..ATHS,ROY ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 90987-02027 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 90987-02027 |
AWS210,211..ROY “Black Style”*(A) |
1 | ||
| 90987-02027 |
AWS210,GRS210,211..ROY ｵｰﾄ&ｲｰｼﾞｰｸﾛｰｻﾞｰﾄﾞｱ−有り(ﾗｹﾞｰｼﾞｸﾛｰｻﾞｰ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 90987-02027 |
AWS210,211..ROY “Black Style”*(A)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 85913F - RELAY, STEERING HEATER | ||||
| 90987-02027 |
AWS21#,GWS214 |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
AWS21# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
AWS21# |
2 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
AWS21# |
2 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02025 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| G9020E - RELAY, HYBRID WATER PUMP | ||||
| 90987-02027 |
AWS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90179-06274 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
| 8433 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
