Toyota Crown/hybrid AWS210 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
CROWN/HYBRID
AWS210-AEXUH (2015)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

AWS210-AEXUH (2015)

Toyota Crown/Hybrid

Production Sep 2015 - Apr 2018

Engine 2ARFSE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

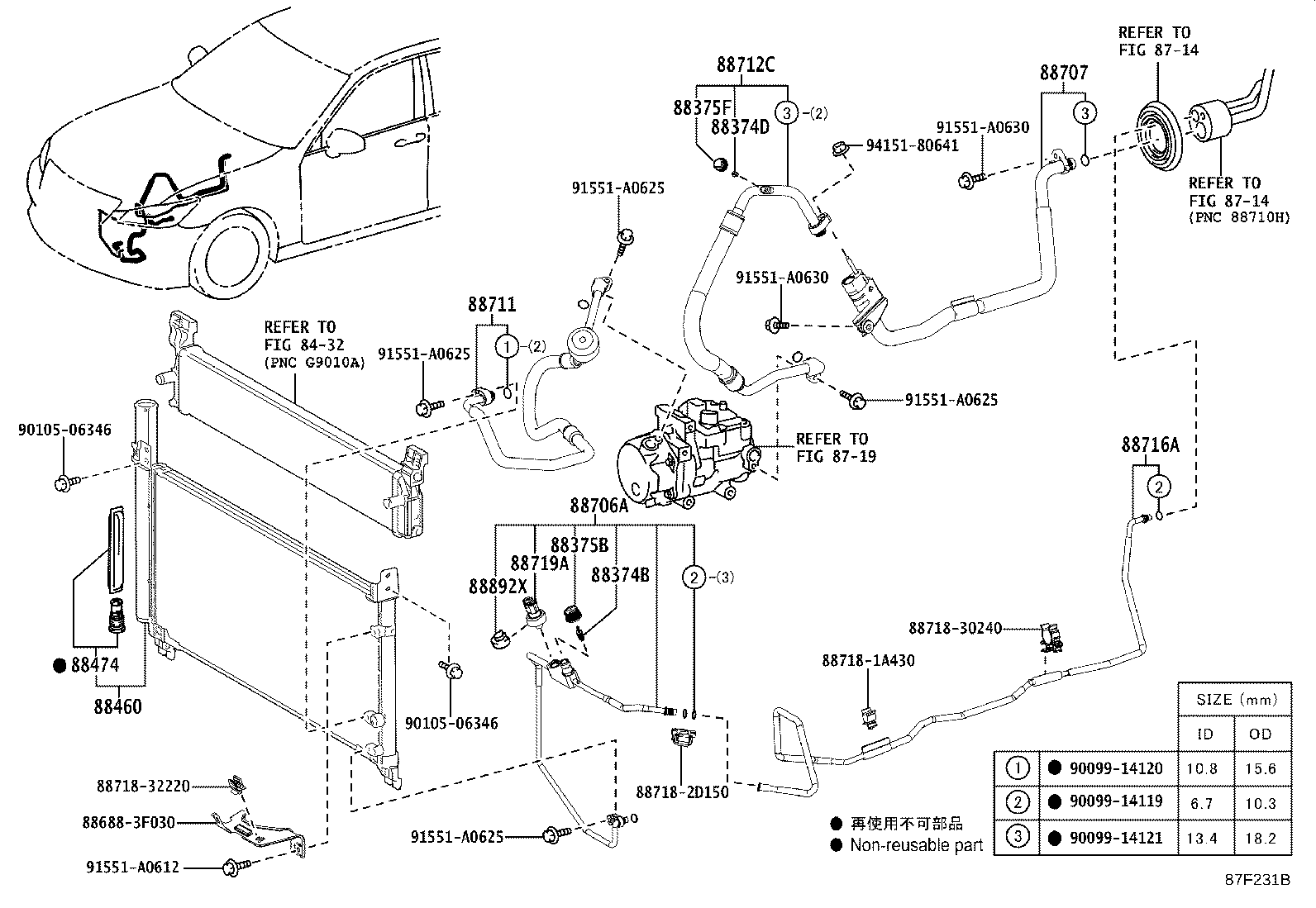

ILLUST NO. 1 OF 2(1509- )AWS210,211

Click highlighted areas on diagram

ﾌﾛﾝﾄ---ｼﾝｸﾞﾙｴｱｺﾝ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
88374-30010	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88374D - VALVE, SERVICE NO.3
88374-30010	AWS21#	09/2015 - 04/2018	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
88375-30280	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290	AWS21#	09/2015 - 04/2018	1
88460 - CONDENSER ASSY, COOLER
88460-30C40	AWS210,211	09/2015 - 04/2018	1
88474 - DRYER, COOLER
88474-12020	AWS210,211	09/2015 - 04/2018	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-3A640	AWS210,211	09/2015 - 04/2018	1
88707 - PIPE SUB-ASSY, SUCTION
88707-30A90	AWS210..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り	09/2015 - 04/2018	1
88707-30A80	AWS210,211,GWS214	09/2015 - 04/2018	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3A750	AWS210,211	09/2015 - 04/2018	1
88712C - HOSE, SUCTION
88704-30870	AWS21#	09/2015 - 04/2018	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-30120	AWS210..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り	09/2015 - 04/2018	1
88716-30110	AWS210,211	09/2015 - 04/2018	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88719-33020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
88892X - COVER, COOLER, NO.2
88892-50120	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88892-50120	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
Common parts
88688-3F030
88718-1A430
88718-2D150
88718-30240
88718-32220
90099-14119
90099-14120
90099-14121
90105-06346
91551-A0612
91551-A0625
91551-A0630
94151-80641
Linked diagrams
8432
8714
8719

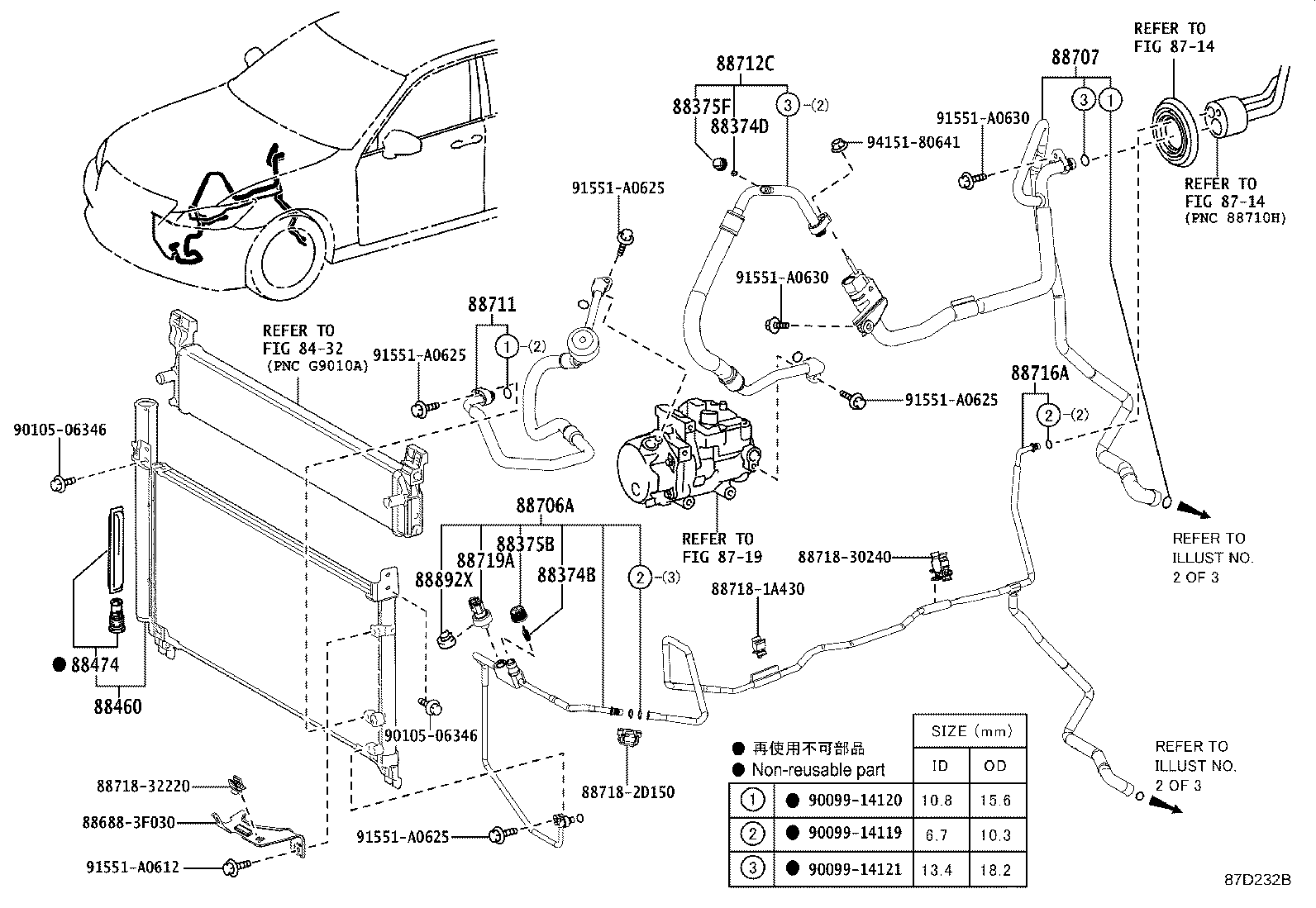

ILLUST NO. 1 OF 2(1509- )AWS210,211..ROY,ROYG

Click highlighted areas on diagram

ﾌﾛﾝﾄ---ﾃﾞｭｱﾙｴｱｺﾝ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
88374-30010	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88374D - VALVE, SERVICE NO.3
88374-30010	AWS21#	09/2015 - 04/2018	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
88375-30280	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290	AWS21#	09/2015 - 04/2018	1
88460 - CONDENSER ASSY, COOLER
88460-30C40	AWS210,211	09/2015 - 04/2018	1
88474 - DRYER, COOLER
88474-12020	AWS210,211	09/2015 - 04/2018	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-3A640	AWS210,211	09/2015 - 04/2018	1
88707 - PIPE SUB-ASSY, SUCTION
88707-30A90	AWS210..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り	09/2015 - 04/2018	1
88707-30A80	AWS210,211,GWS214	09/2015 - 04/2018	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3A750	AWS210,211	09/2015 - 04/2018	1
88712C - HOSE, SUCTION
88704-30870	AWS21#	09/2015 - 04/2018	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-30120	AWS210..ROY,ROYG ﾘﾔｴｱｺﾝ&ﾀﾞｸﾄ−有り	09/2015 - 04/2018	1
88716-30110	AWS210,211	09/2015 - 04/2018	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88719-33020	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
88892X - COVER, COOLER, NO.2
88892-50120	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
88892-50120	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
Common parts
88688-3F030
88718-1A430
88718-2D150
88718-30240
88718-32220
90099-14119
90099-14120
90099-14121
90105-06346
91551-A0612
91551-A0625
91551-A0630
94151-80641
Linked diagrams
8432
8714
8719
