AWS210-AEXUH (2015)
Toyota Crown/Hybrid

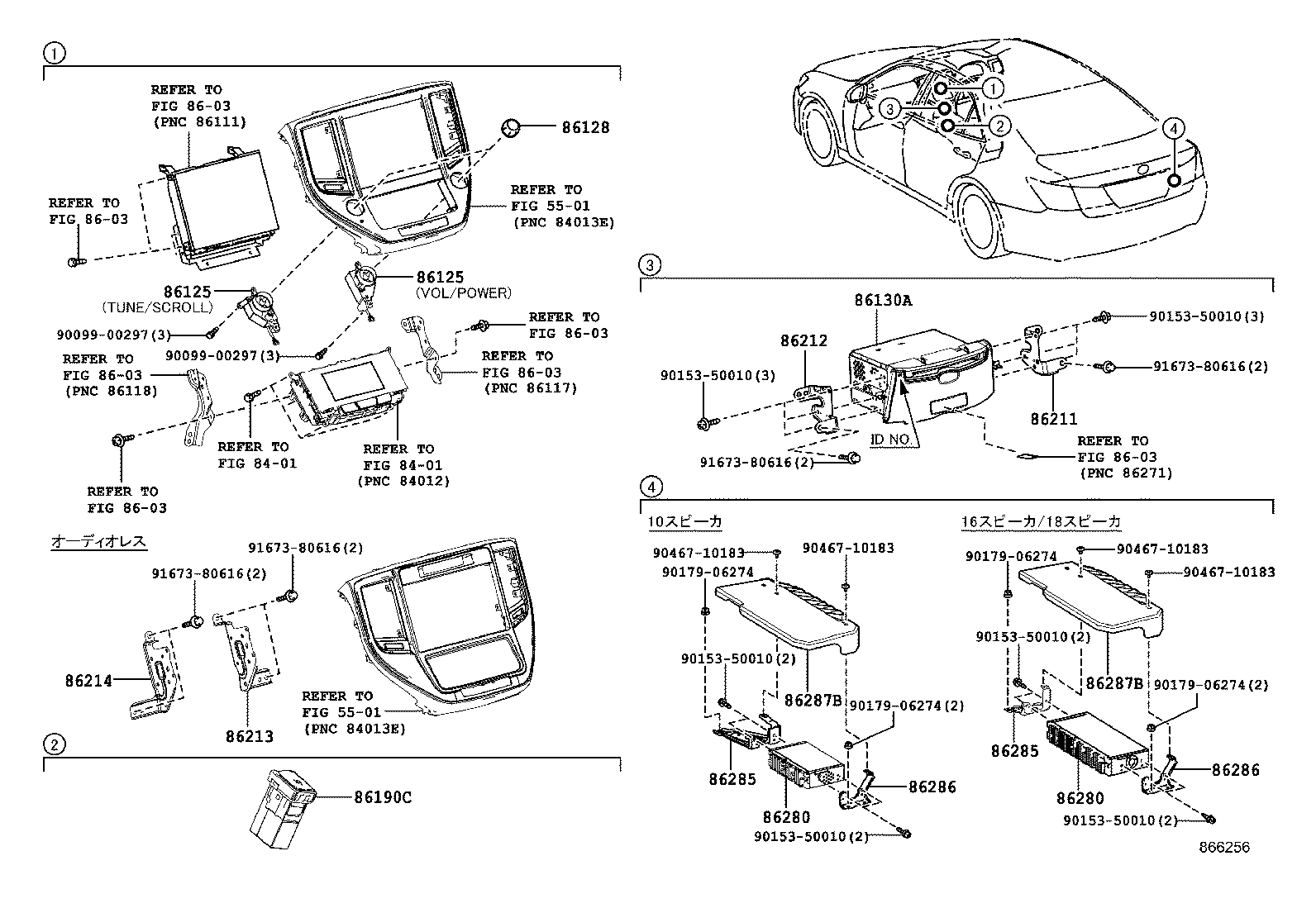

ILLUST NO. 1 OF 2(1509- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-30050 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾁｭｰﾅ/ｽｸﾛｰﾙ |
1 | ||
| 86125-30060 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾎﾞﾘｭｰﾑ/ﾊﾟﾜｰ |
1 | ||
| 86125-30070 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾁｭｰﾅ/ｽｸﾛｰﾙ |
1 | ||
| 86125-30080 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾎﾞﾘｭｰﾑ/ﾊﾟﾜｰ |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-30050 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾁｭｰﾅ/ｽｸﾛｰﾙ |
1 | ||
| 86125-30060 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾎﾞﾘｭｰﾑ/ﾊﾟﾜｰ |
1 | ||
| 86125-30070 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾁｭｰﾅ/ｽｸﾛｰﾙ |
1 | ||
| 86125-30080 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG ﾎﾞﾘｭｰﾑ/ﾊﾟﾜｰ |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86127-30110 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
2 | ||
| 86127-30110 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
2 | ||
| 86127-30110 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
2 | ||
| 86127-30110 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
2 | ||
| 86130A - RECEIVER ASSY, MULTI-MEDIA MODULE | ||||
| 86804-30540 |
AWS210,GRS210,211..ROY FUJITSU TEN,ID100121,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,Jﾊﾞｰ無し |
1 | ||
| 86804-30540 |
AWS210,GRS210,211..ROY,ROYG FUJITSU TEN,ID100121 |
1 | ||
| 86804-30550 |
AWS210,GRS210,211..ROY,ROYG FUJITSU TEN,ID100118,ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙsV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 86804-30J50 |
AWS210,211,GRS210,211..ROY AISIN AW, ID=B9102,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞ[無し |
1 | ||
| 86804-30J50 |
AWS210,211,GRS210,211..ROY,ROYG AISIN AW, ID=B9102 |
1 | ||
| 86804-30N60 |
AWS210,211,GRS210,211..ROY AISIN AW,ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86804-30N60 |
AWS210,211,GRS210,211..ROY,ROYG AISIN AW |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-30020 |
AWS210,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86190-48080 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86190-48080 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86190-30020 |
AWS210,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30350 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86211-30400 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30320 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86212-30360 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86211-30430 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86211-30430 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86214 - BRACKET, RADIO, NO.4 | ||||
| 86212-30390 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86212-30390 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30710 |
AWS210,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 86280-30750 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86280-30710 |
AWS210,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86280-30720 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 86280-30760 |
GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV),16ｽﾋﾟｰｶ |
1 | ||
| 86280-30750 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30710 |
AWS210,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 86280-30750 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86280-30710 |
AWS210,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86280-30720 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 86280-30760 |
GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV),16ｽﾋﾟｰｶ |
1 | ||
| 86280-30750 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30330 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86285-30330 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86285-30330 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86285-30420 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 86285-30330 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86285-30420 |
GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV),16ｽﾋﾟｰｶ |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30330 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86285-30330 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86285-30330 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86285-30420 |
GRS210,211..ROY,ROYG;AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV,DSSS),16ｽﾋﾟｰｶ |
1 | ||
| 86285-30330 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86285-30420 |
GRS211..ROY,ROYG;AWS210,211,GRS210,214..ATHG,ATHS,ROY,ROYG ｵｰﾃﾞｨｵ−有り(CD,DVD,ﾃﾞｼﾞﾀﾙTV),16ｽﾋﾟｰｶ |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30090 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86286-30090 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86286-30090 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86286-30090 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30090 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86286-30090 |
AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86286-30090 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86286-30090 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-30010 |
AWS210,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 86287-30010 |
AWS210,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86287-30050 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86287-30050 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86287B - COVER, AMPLIFIER | ||||
| 86287-30010 |
AWS210,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 86287-30010 |
AWS210,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵﾚｽ,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86287-30050 |
ARS210,AWS210,211,GRS210,211..ATHS,ROY ｵｰﾃﾞｨｵ−ｵｰﾃﾞｨｵ無し,6ｽﾋﾟｰｶ,ｶﾊﾞｰ無し |
1 | ||
| 86287-30050 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| Common parts | ||||
| 90099-00297 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 90467-10183 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8401 | ||||
| 8603 | ||||
