AWS210-AEXUH (2015)

Toyota Crown/Hybrid

Production Sep 2015 - Apr 2018
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )ATHG,ROYG

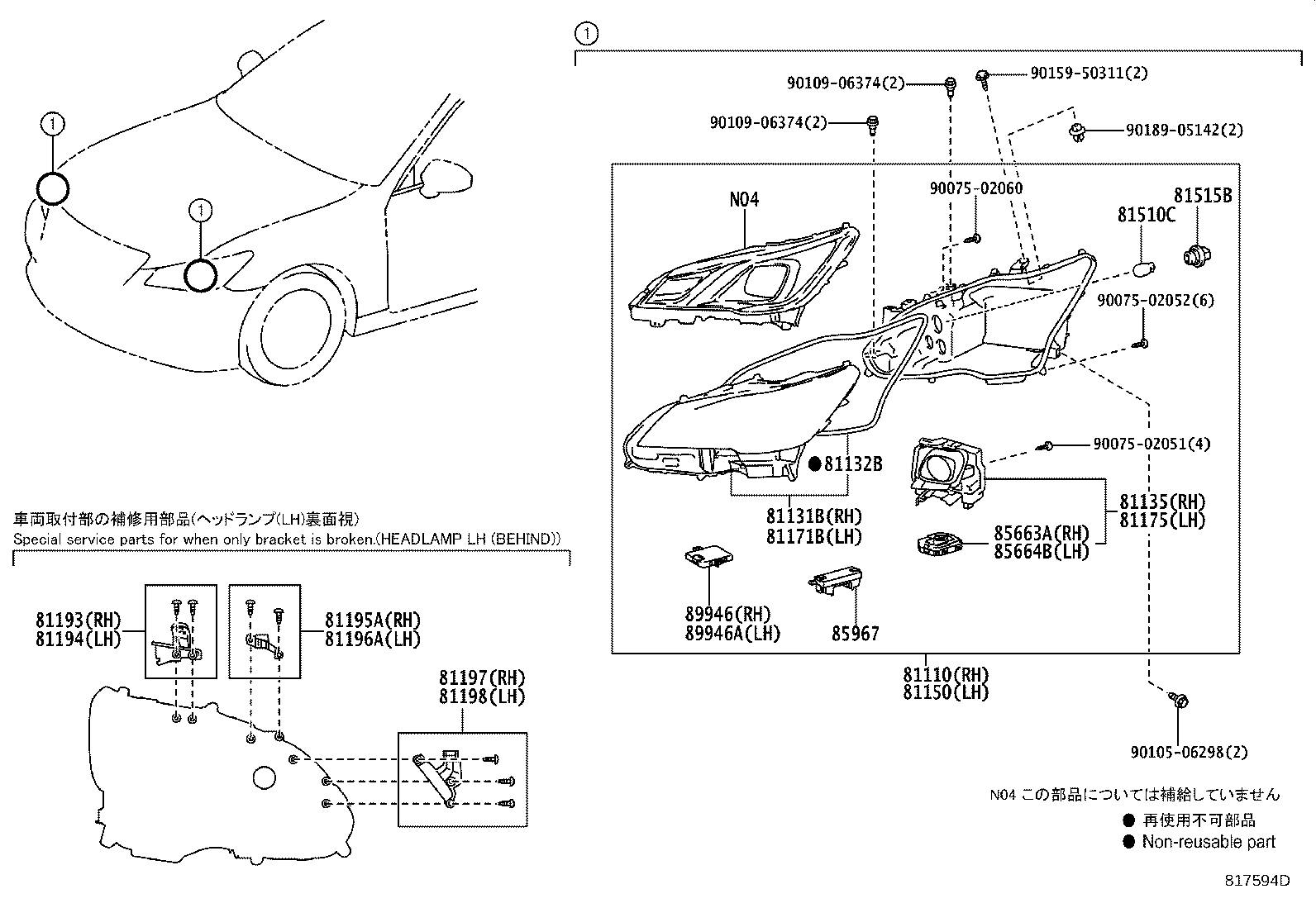

Click highlighted areas on diagram

LEDﾍｯﾄﾞﾗﾝﾌﾟ

diagram 81110 81131B 81132B 81135 81150 81171B 81175 81193 81194 81195A 81196A 81197 81198 81510C 81515B 85663A 85664B 85967 89946 89946A 9007502051 9007502052 9007502060 9010506298 9010906374 9010906374 9015950311 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-30E40

AWS210,211,GRS210,211..ROY,ROYAL

 1
81110-30E50

AWS210,211,GRS210,211..ROYG

 1
81110-30M10

AWS210,211,GRS210,211..ROYG

 1
81110-30L90

AWS210,211,GRS210,211..ROY,ROYAL

 1
81110-30L91

AWS210,211,GRS210,211..ROY,ROYAL

 1
81110-30M11

AWS210,211,GRS210,211..ROYG

 1
81110-30M12

AWS210,211,GRS210,211..ROYG

 1
81131B - HEAD LAMP LENS, RH
81131-30E40

AWS210,211,GRS210,211..ROY,ROYAL

 1
81131-30E50

AWS210,211,GRS210,211..ROYG

 1
81131-30M10

AWS210,211,GRS210,211..ROYG

 1
81131-30L90

AWS210,211,GRS210,211..ROY,ROYAL

 1
81132B - GASKET, HEADLAMP LENS
81132-30E40

ARS210,AWS21#,GRS21#,GWS214

 2
81132-30E40

AWS21#,GRS21#,GWS214

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-30M11

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
81130-30L90

ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL

 1
81130-30M10

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
81150 - HEADLAMP ASSY, LH
81150-30M10

AWS210,211,GRS210,211..ROYG

 1
81150-30E50

AWS210,211,GRS210,211..ROYG

 1
81150-30E40

AWS210,211,GRS210,211..ROY,ROYAL

 1
81150-30L90

AWS210,211,GRS210,211..ROY,ROYAL

 1
81150-30M12

AWS210,211,GRS210,211..ROYG

 1
81150-30M11

AWS210,211,GRS210,211..ROYG

 1
81150-30L91

AWS210,211,GRS210,211..ROY,ROYAL

 1
81171B - HEAD LAMP LENS, LH
81171-30E50

AWS210,211,GRS210,211..ROYG

 1
81171-30E40

AWS210,211,GRS210,211..ROY,ROYAL

 1
81171-30L90

AWS210,211,GRS210,211..ROY,ROYAL

 1
81171-30M10

AWS210,211,GRS210,211..ROYG

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-30L90

ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL

 1
81170-30M10

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
81170-30M11

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-30100

AWS21#,GRS21#,GWS214

 1
81193-30110

ARS210,AWS210,211,GRS21#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-30080

ARS210,AWS210,211,GRS21#

 1
81194-30100

AWS21#,GRS21#,GWS214

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-30080

ARS210,AWS210,211,GRS21#

 1
81195-30060

AWS210,211,GRS21#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-30060

AWS210,211,GRS21#

 1
81196-30080

ARS210,AWS210,211,GRS21#

 1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-30060

AWS21#,GRS21#,GWS214

 1
81197-30080

ARS210,AWS210,211,GRS21#

 1
81198 - BRACKET, HEADLAMP, LWR LH
81198-30060

AWS21#,GRS21#,GWS214

 1
81198-30080

ARS210,AWS210,211,GRS21#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

ARS210,AWS21#,GRS21#,GWS214

12V 21W,ｱﾝﾊﾞｰ

 2
90981-15021

AWS21#,GRS21#,GWS214

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

AWS21#,GRS21#,GWS214

 2
90075-60028

ARS210,AWS21#,GRS21#,GWS214

 2
85663A - MOTOR, HEADLAMP SWIVEL, RH
85663-30030

AWS210,211,GRS21#..ATHG,ROYG

 1
85663-30030

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
85663-30040

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
85664B - MOTOR, HEADLAMP SWIVEL, LH
85664-30050

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
85664-30030

AWS210,211,GRS21#..ATHG,ROYG

 1
85664-30030

ARS210,AWS210,211,GRS21#..ATHG,ROYG

 1
85967 - COMPUTER, LIGHT CONTROL
85967-47030

AWS210,211,GRS211,214..ATHG,ROYG;ARS210,GRS210..ATH,ATHG,ATHS,ROYG

 2
89946 - COMPUTER, HEADLAMP SHADE
89946-50010

AWS210,211,GRS21#..ATHG,ROYG

 1
89946-50010

ARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
89946A - COMPUTER, HEADLAMP SHADE
89946-50020

AWS210,211,GRS21#..ATHG,ROYG

 1
89946-50020

ARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG

 1
Common parts
90075-02051
90075-02052
90075-02060
90105-06298
90109-06374
90159-50311
90189-05142
