AWS210-AEXUH (2015)
Toyota Crown/Hybrid

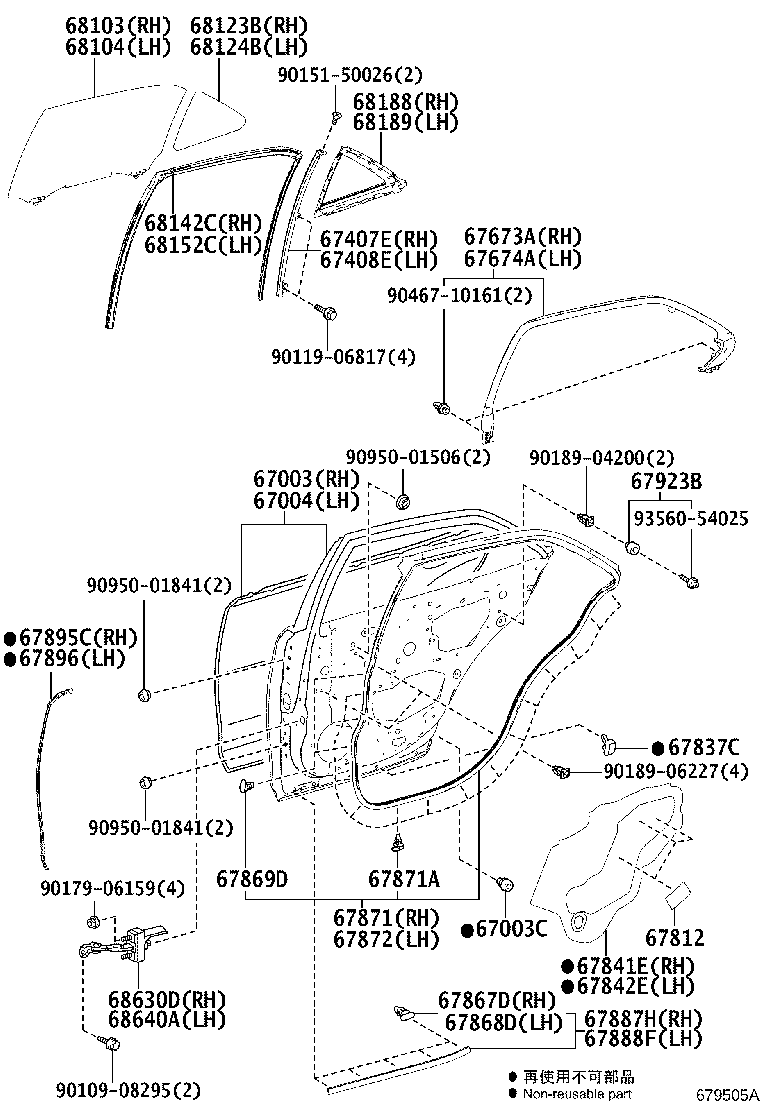

ILLUST NO. 1 OF 2(1212-1702)
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30661 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67003-30660 |
AWS210,211,GRS21# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90541-09069 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30660 |
AWS210,211,GRS21# |
1 | ||
| 67004-30661 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30250 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67407-30250 |
AWS210,211,GRS21# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30240 |
AWS210,211,GRS21# |
1 | ||
| 67408-30240 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-30160 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67673-30160 |
ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67673-30170 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67673-30170 |
ARS210,AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-30170 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67674-30160 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67674-30170 |
ARS210,AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67674-30160 |
ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-30100 |
ARS210,AWS21#,GRS21#,GWS214 |
6 | ||
| 67811-30110 |
ARS210,AWS21#,GRS21#,GWS214 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 67811-12180 |
AWS210,GRS21# |
2 | ||
| 67811-30100 |
ARS210,AWS21#,GRS21#,GWS214 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-30100 |
ARS210,AWS21#,GRS21#,GWS214 |
6 | ||
| 67811-30110 |
ARS210,AWS21#,GRS21#,GWS214 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 67811-12180 |
AWS210,GRS21# |
2 | ||
| 67811-30100 |
ARS210,AWS21#,GRS21#,GWS214 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-30060 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 67837-30060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30480 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67841-30460 |
GRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67841-30460 |
GRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67841-30480 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30320 |
GRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67842-30340 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67842-30340 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67842-30320 |
GRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-30080 |
AWS210,211,GRS21# |
5 | ||
| 67867-30080 |
ARS210,AWS210,211,GRS21# |
5 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-30110 |
ARS210,AWS210,211,GRS21# |
5 | ||
| 67867-30110 |
AWS210,211,GRS21# |
5 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 90467-04034 |
ARS210,AWS21#,GRS21#,GWS214 |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30320 |
AWS210,211,GRS21# |
1 | ||
| 67871-30320 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
AWS210,211,GRS21# |
28 | ||
| 67867-12150 |
ARS210,AWS210,211,GRS21# |
28 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30330 |
AWS210,211,GRS21# |
1 | ||
| 67872-30330 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-30180 |
AWS210,211,GRS21# |
1 | ||
| 67887-30180 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-30180 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67888-30180 |
AWS210,211,GRS21# |
1 | ||
| 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH | ||||
| 67895-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 67895-30051 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67895-30050 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH | ||||
| 67896-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 67896-30051 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67896-30050 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 67923-24030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-30730 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68103-30740 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68103-30740 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68103-30741 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-30740 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68104-30730 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68104-30740 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68104-30741 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30680 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68123-30630 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68123-30680 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68123-30681 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30620 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68124-30610 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68124-30620 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68124-30621 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-30240 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68142-30240 |
AWS210,211,GRS21# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-30140 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68152-30140 |
AWS210,211,GRS21# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30210 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68188-30210 |
AWS210,211,GRS21# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30190 |
AWS210,211,GRS21# |
1 | ||
| 68189-30190 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-30240 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 68630-30240 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-30150 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 68640-30150 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06817 | ||||
| 90151-50026 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90189-06227 | ||||
| 90467-10161 | ||||
| 90950-01506 | ||||
| 90950-01841 | ||||
| 93560-54025 | ||||

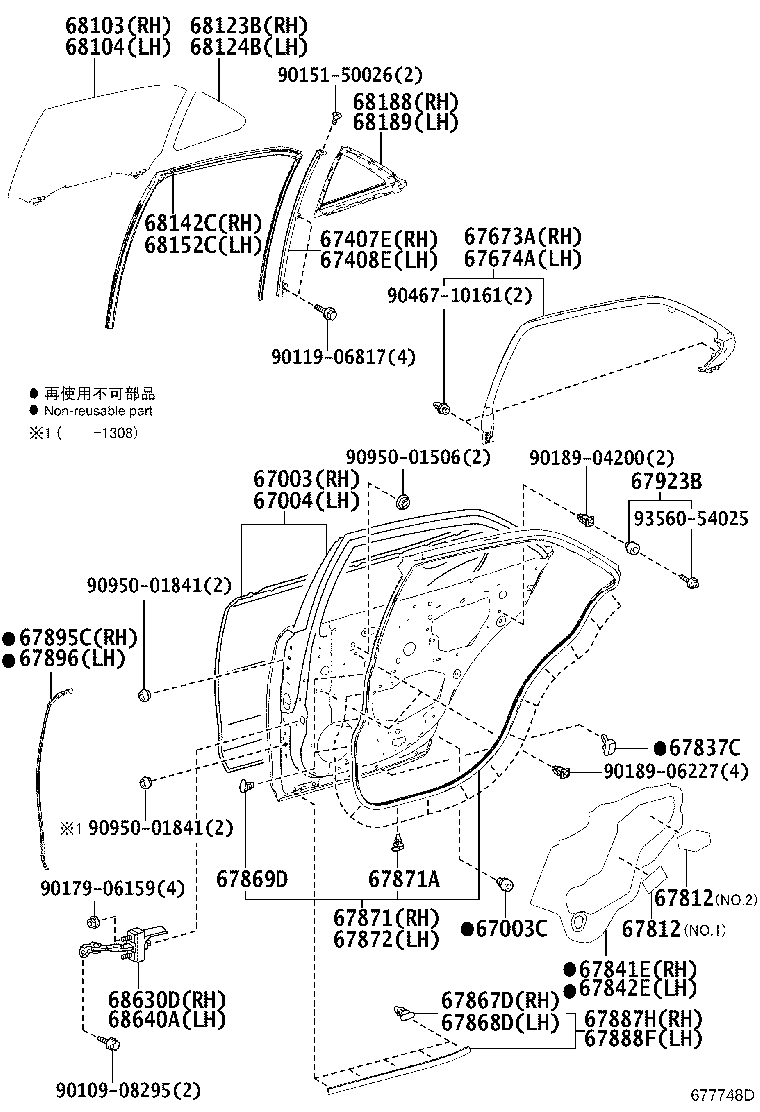

ILLUST NO. 1 OF 2(1702- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-30661 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67003-30660 |
AWS210,211,GRS21# |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90541-09069 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-30660 |
AWS210,211,GRS21# |
1 | ||
| 67004-30661 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-30250 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67407-30250 |
AWS210,211,GRS21# |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-30240 |
AWS210,211,GRS21# |
1 | ||
| 67408-30240 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-30160 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67673-30160 |
ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67673-30170 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67673-30170 |
ARS210,AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-30170 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67674-30160 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67674-30170 |
ARS210,AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 67674-30160 |
ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-30100 |
ARS210,AWS21#,GRS21#,GWS214 |
6 | ||
| 67811-30110 |
ARS210,AWS21#,GRS21#,GWS214 NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 67811-12180 |
AWS210,GRS21# |
2 | ||
| 67811-30100 |
ARS210,AWS21#,GRS21#,GWS214 NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-30060 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 67837-30060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-30480 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67841-30460 |
GRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67841-30460 |
GRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67841-30480 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-30320 |
GRS214..ATHS;AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67842-30340 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67842-30340 |
GRS214..ATHG;AWS210,211,GRS210,211..ROYG |
1 | ||
| 67842-30320 |
GRS214..ATHS;ARS210,AWS210,211,GRS210,211..ATH,ATHG,ATHS,ROY,ROYAL |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-30080 |
AWS210,211,GRS21# |
5 | ||
| 67867-30080 |
ARS210,AWS210,211,GRS21# |
5 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-30110 |
ARS210,AWS210,211,GRS21# |
5 | ||
| 67867-30110 |
AWS210,211,GRS21# |
5 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-04034 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 90467-04034 |
ARS210,AWS21#,GRS21#,GWS214 |
4 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-30320 |
AWS210,211,GRS21# |
1 | ||
| 67871-30320 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
AWS210,211,GRS21# |
28 | ||
| 67867-12150 |
ARS210,AWS210,211,GRS21# |
28 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-30330 |
AWS210,211,GRS21# |
1 | ||
| 67872-30330 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-30180 |
AWS210,211,GRS21# |
1 | ||
| 67887-30180 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-30180 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 67888-30180 |
AWS210,211,GRS21# |
1 | ||
| 67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH | ||||
| 67895-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 67895-30051 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67895-30050 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH | ||||
| 67896-30050 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 67896-30051 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67896-30050 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 67923B - CUSHION, REAR DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 67923-24030 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-30730 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68103-30740 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68103-30740 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68103-30741 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-30740 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68104-30730 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68104-30740 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68104-30741 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-30680 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68123-30630 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68123-30680 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68123-30681 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-30620 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68124-30610 |
AWS210,211,GRS210,211..ATHS,ROY *UVCT,厚さ=4.0,ｸﾞﾘｰﾝ,ﾘﾔｻｲﾄﾞｶﾞﾗｽ−ｸﾞﾘｰﾝ |
1 | ||
| 68124-30620 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG *UVCT,厚さ=4.0,C.ｸﾞﾘｰﾝ |
1 | ||
| 68124-30621 |
ARS210,AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-30240 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68142-30240 |
AWS210,211,GRS21# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-30140 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68152-30140 |
AWS210,211,GRS21# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-30210 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68188-30210 |
AWS210,211,GRS21# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-30190 |
AWS210,211,GRS21# |
1 | ||
| 68189-30190 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-30240 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 68630-30240 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-30150 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 68640-30150 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06817 | ||||
| 90151-50026 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90189-06227 | ||||
| 90467-10161 | ||||
| 90950-01506 | ||||
| 90950-01841 | ||||
| 93560-54025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
