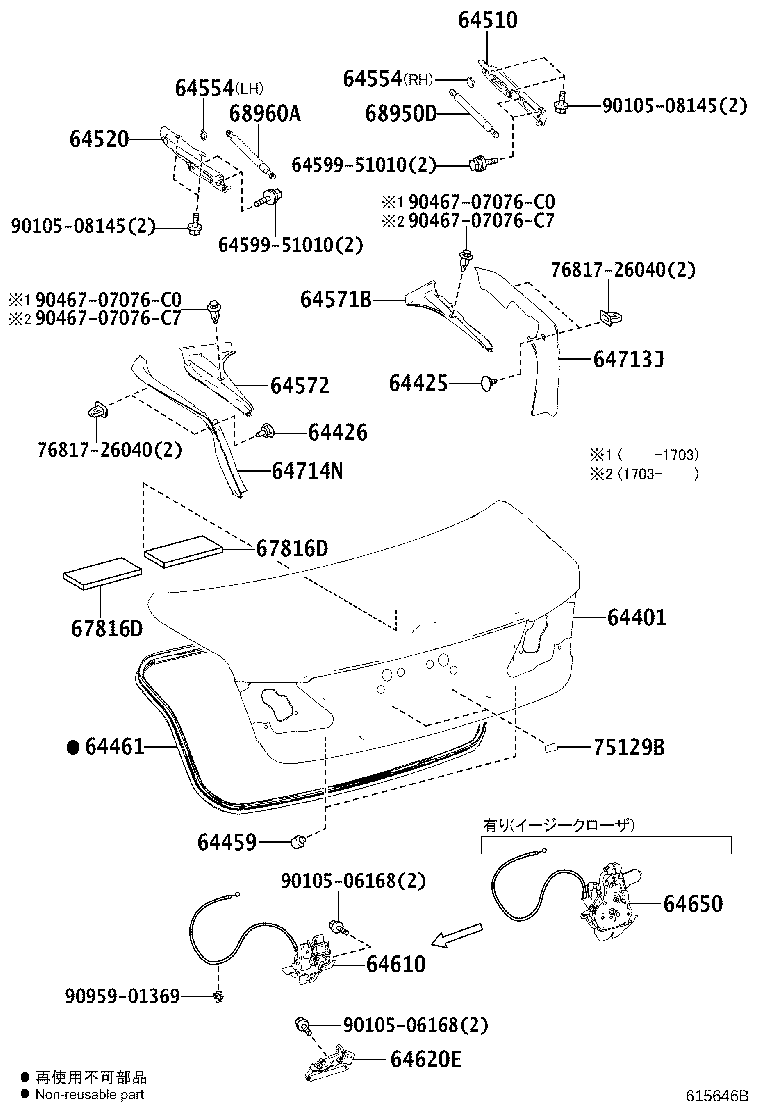

Toyota Crown/hybrid AWS210 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-30D70	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64401-30D30	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64425 - PLUG, LUGGAGE COMPARTMENT DOOR, RH
64425-30060	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64425-30060	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64426 - PLUG, LUGGAGE COMPARTMENT DOOR, LH
64425-30060	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64425-30060	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
90541-09069	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30370	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64461-30370	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-30480	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64510-30480	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-30250	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64520-30250	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64554 - STOPPER, LUGGAGE DOOR BALANCER
64554-30051	AWS21#,GRS21#,GWS214 左側	12/2012 - 09/2015	1
64554-30041	AWS21#,GRS21#,GWS214 右側	12/2012 - 09/2015	1
64554-30041	ARS210,AWS21#,GRS21#,GWS214 右側	09/2015 - 04/2018	1
64554-30051	ARS210,AWS21#,GRS21#,GWS214 左側	09/2015 - 04/2018	1
64554 - STOPPER, LUGGAGE DOOR BALANCER
64554-30051	AWS21#,GRS21#,GWS214 左側	12/2012 - 09/2015	1
64554-30041	AWS21#,GRS21#,GWS214 右側	12/2012 - 09/2015	1
64554-30041	ARS210,AWS21#,GRS21#,GWS214 右側	09/2015 - 04/2018	1
64554-30051	ARS210,AWS21#,GRS21#,GWS214 左側	09/2015 - 04/2018	1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-30180	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64571-30180	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572-30140	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64572-30140	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-30140	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64620-30140	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
64650 - CLOSER ASSY, LUGGAGE DOOR
64650-30080	AWS211,GRS214..ATHG,ROY,ROYG;AWS210,215,GRS210,211,GWS214..MJ,ROY,ROYG	12/2012 - 09/2015	1
64650-30090	ARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROY,ROYG	09/2015 - 03/2017	1
64650-30091	ARS210,AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG	04/2017 - 04/2018	1
64713J - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64713-30120	AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG	09/2015 - 04/2018	1
64713-30120	AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG	12/2012 - 09/2015	1
64714N - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
64714-30550	AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG	12/2012 - 09/2015	1
64714-30550	AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG	09/2015 - 04/2018	1
67816D - SHEET, BACK DOOR PANEL SILENCER
67816-30010	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
67816-30010	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
67816D - SHEET, BACK DOOR PANEL SILENCER
67816-30010	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
67816-30010	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
68950D - STAY ASSY, LUGGAGE DOOR, RH
64530-30150	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64530-30150	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 10/2017	1
64530-0W260	ARS210,AWS21#,GRS21#,GWS214	10/2017 - 04/2018	1
68960A - STAY ASSY, LUGGAGE DOOR, LH
64530-0W260	ARS210,AWS21#,GRS21#,GWS214	10/2017 - 04/2018	1
64540-30110	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
64540-30110	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 09/2017	1
75129B - CUSHION, REAR LICENCE PLATE
75129-30010	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	2
75129-30010	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	2
Common parts
64599-51010
76817-26040
90105-06168
90105-08145
90467-07076C0
90467-07076C7
90959-01369

AWS210-AEXUH (2015)

(1509- )
