AWS210-AEXUH (2015)
Toyota Crown/Hybrid
(1509- )ROY,ROYAL,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

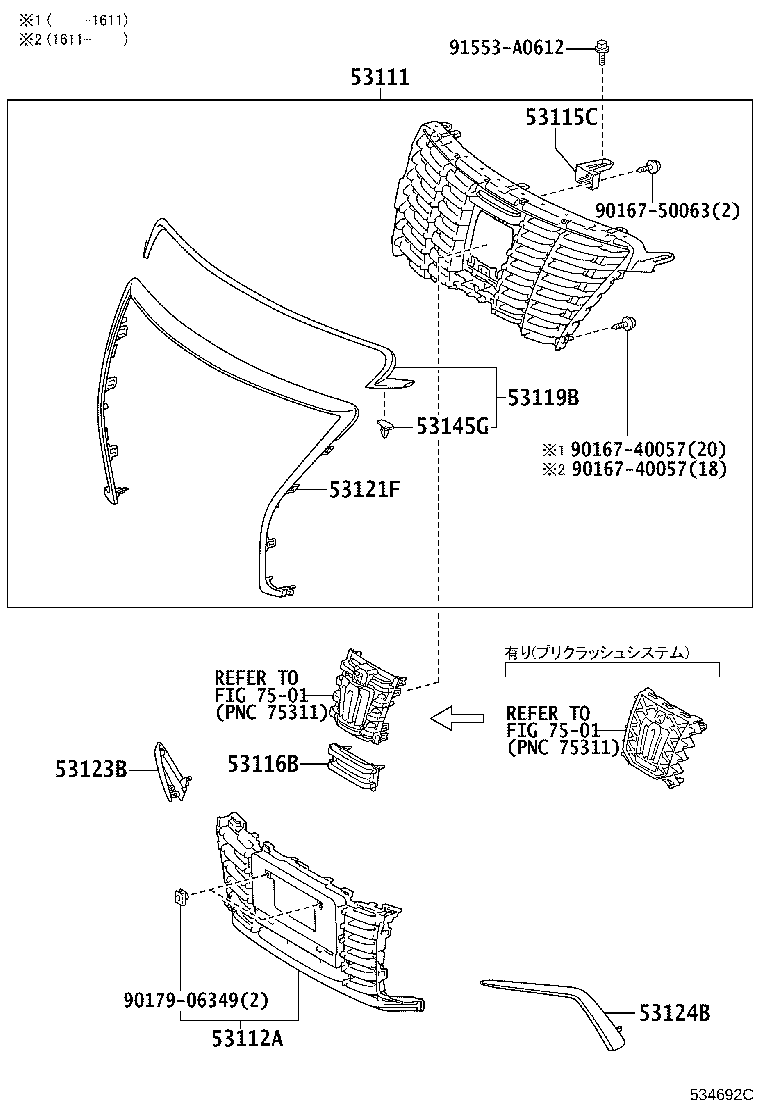

| 53111 - GRILLE, RADIATOR | ||||
| 53105-30060 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG ﾒｯｷ |
1 | ||
| 53101-30B90 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG ﾒｯｷ |
1 | ||
| 53101-30A60 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG ﾒｯｷ |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53113-30430 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 53113-30420 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53113-30430 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53113-30440 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ) |
1 | ||
| 53113-30440 |
AWS210,211,GRS210,211..ROY,ROYG 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 53115C - BRACKET, RADIATOR GRILLE, NO.1 | ||||
| 53178-30010 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53116B - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-30150 |
AWS210,211,GRS210,211..ROY,ROYG ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 53116-30150 |
AWS210,211,GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 53116-30140 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53116-30220 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53116-30230 |
AWS210,211,GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き) |
1 | ||
| 53116-30230 |
AWS210,211,GRS210,211..ROY,ROYG ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き) |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-30280 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53119-30300 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53121F - MOULDING, RADIATOR GRILLE, UPPER RH | ||||
| 53121-30220 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53121-30330 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53123B - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 53123-30180 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53124B - MOULDING, RADIATOR GRILLE SIDE, LH | ||||
| 53124-30150 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53145G - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
14 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 91553-A0612 | ||||
| Linked diagrams | ||||
| 7501 | ||||
