AWS210-AEXUH (2015)
Toyota Crown/Hybrid

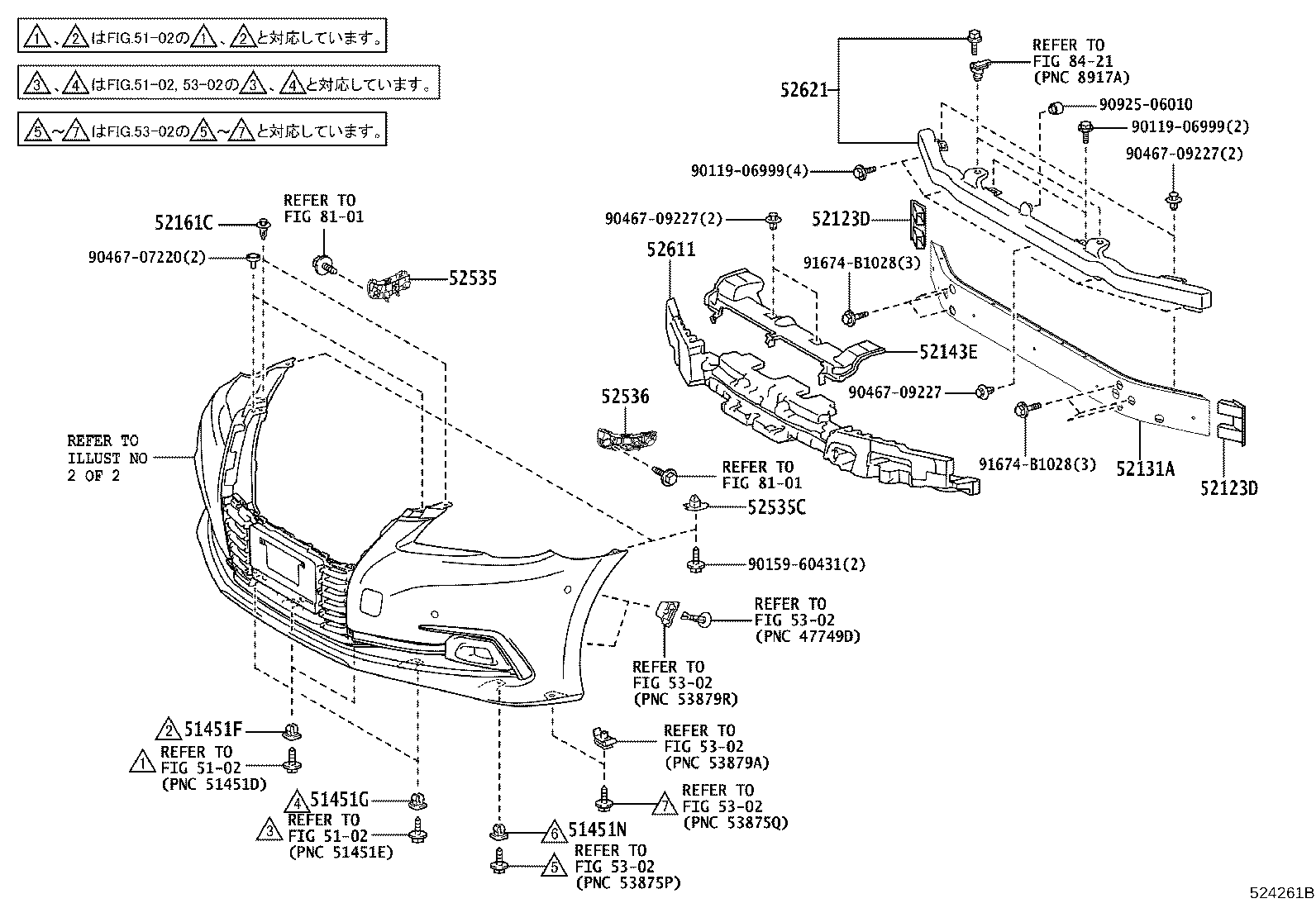

ILLUST NO. 1 OF 2(1509- )AWS210,211..ROY,ROYAL,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451F - GROMMET, NO.1 | ||||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 51451G - GROMMET, NO.2 | ||||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 51451N - GROMMET, NO.3 | ||||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52123D - PLATE, FRONT BUMPER REINFORCEMENT | ||||
| 52123-30140 |
ARS210,AWS21#,GWS214 |
2 | ||
| 52123D - PLATE, FRONT BUMPER REINFORCEMENT | ||||
| 52123-30140 |
ARS210,AWS21#,GWS214 |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30331 |
ARS210,AWS210,211 |
1 | ||
| 52143E - PLATE, FRONT ENERGY ABSORBER MOUNTING | ||||
| 52143-30200 |
ARS210,AWS210,211 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30240 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 52535-30240 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52535-50060 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30230 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 52536-30230 |
AWS21#,GRS210,211,GWS214..MJ,ROY,ROYAL,ROYG |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30520 |
AWS210,211..ROY,ROYAL,ROYG |
1 | ||
| 52621 - CHAMBER, POP UP HOOD | ||||
| 52621-30030 |
ARS210,AWS210,211 |
1 | ||
| Common parts | ||||
| 90119-06999 | ||||
| 90159-60431 | ||||
| 90467-07220 | ||||
| 90467-09227 | ||||
| 90925-06010 | ||||
| 91674-B1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||
| 8421 | ||||

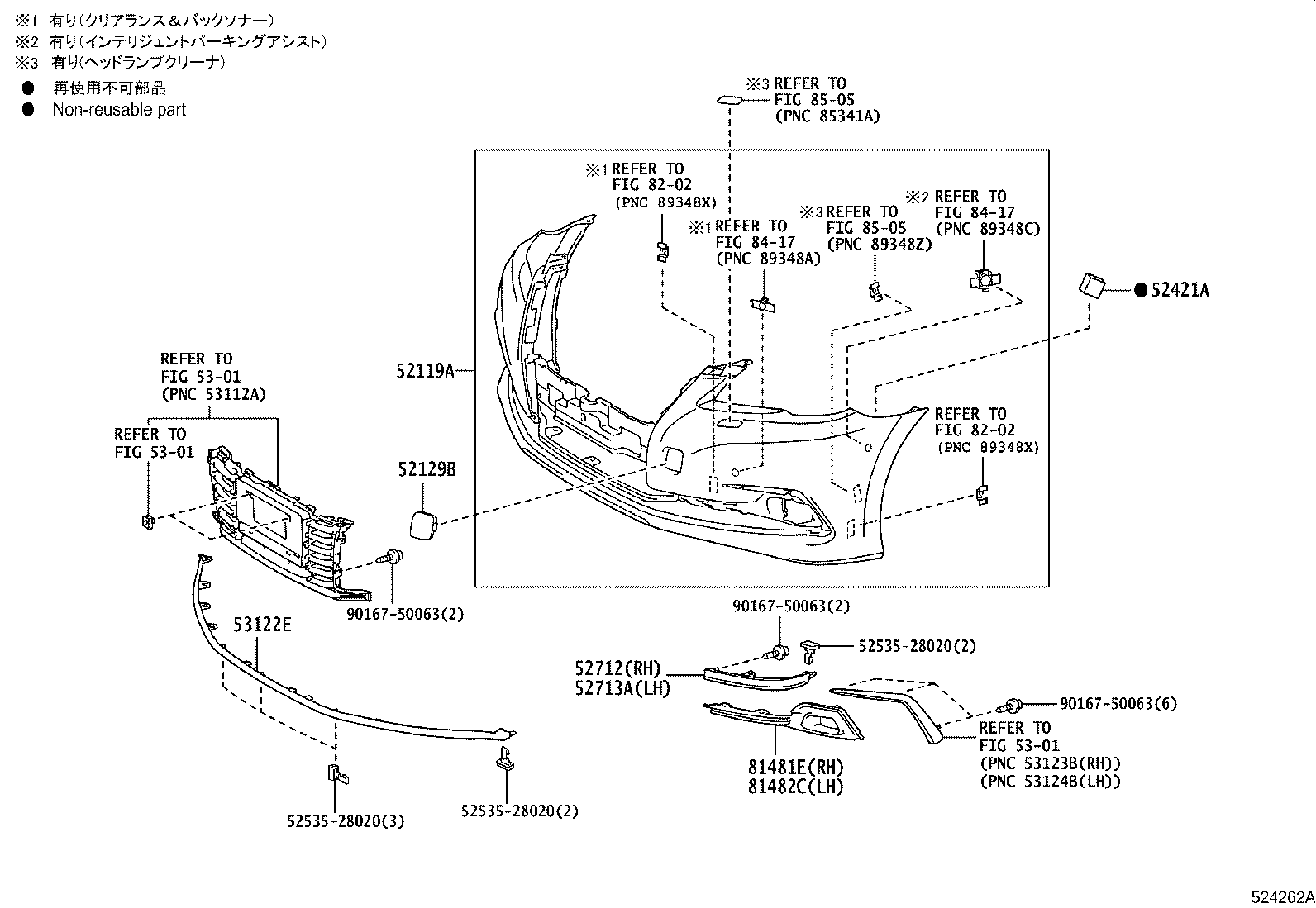

ILLUST NO. 2 OF 2(1509- )AWS210,211..ROY,ROYAL,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30E20D0 |
AWS210,211,GRS210,211..ROY,ROYAL DK. RED M.M.,3Q3 |
1 | ||
| 52119-30E20C0 |
AWS210,211,GRS210,211..ROY,ROYAL BLACK,202 |
1 | ||
| 52119-30E30B1 |
AWS210,211,GRS210,211..ROYG PRECIOUS SILVER,1J6 |
1 | ||
| 52119-30E20A0 |
AWS210,211,GRS210,211..ROY,ROYAL WHITE PEARL CS.,062 |
1 | ||
| 52119-30E20B1 |
AWS210,211,GRS210,211..ROY,ROYAL PRECIOUS SILVER,1J6 |
1 | ||
| 52119-30E30B0 |
AWS210,211,GRS210,211..ROYG SILVER ME.,1F7 |
1 | ||
| 52119-30E20J0 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BLUE MC.,8S6 |
1 | ||
| 52119-30E30A0 |
AWS210,211,GRS210,211..ROYG WHITE PEARL CS.,062 |
1 | ||
| 52119-30E30C0 |
AWS210,211,GRS210,211..ROYG BLACK,202 |
1 | ||
| 52119-30E30J0 |
AWS210,211,GRS210,211..ROYG DK.BLUE MC.,8S6 |
1 | ||
| 52119-30E30D0 |
AWS210,211,GRS210,211..ROYG DK. RED M.M.,3Q3 |
1 | ||
| 52119-30E20B0 |
AWS210,211,GRS210,211..ROY,ROYAL SILVER ME.,1F7 |
1 | ||
| 52119-3F926B0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F926B1 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F926A0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F926A0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F926C0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-3F926D0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F926B0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
1 | ||
| 52119-3F926J0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F926C0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
1 | ||
| 52119-3F926D0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F928B0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
1 | ||
| 52119-3F927C0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK,202 |
1 | ||
| 52119-3F928A0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F927B0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F928A0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F928D0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F926B1 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F928B1 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F928D0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F927D0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F927B1 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F928C0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
1 | ||
| 52119-3F927J0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F928C0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-3F928J0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F927A0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F928J0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F926J0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F929A0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F929B0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F928B1 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F929B1 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F928B0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F929D0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F929J0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F929C0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK,202 |
1 | ||
| 52119-3F971A1 |
AWS210,211,GRS210,211..ROY,ROYAL WHITE PEARL CS.,062 |
1 | ||
| 52119-3F971J1 |
AWS210,211,GRS210,211..ROY,ROYAL DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F971D1 |
AWS210,211,GRS210,211..ROY,ROYAL DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F972J1 |
AWS210,211,GRS210,211..ROYG DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F972D1 |
AWS210,211,GRS210,211..ROYG DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F972B4 |
AWS210,211,GRS210,211..ROYG PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F972A1 |
AWS210,211,GRS210,211..ROYG WHITE PEARL CS.,062 |
1 | ||
| 52119-3F971C2 |
AWS210,211,GRS210,211..ROY,ROYAL BLACK,202 |
1 | ||
| 52119-3F971B3 |
AWS210,211,GRS210,211..ROY,ROYAL SILVER ME.,1F7 |
1 | ||
| 52119-3F971B4 |
AWS210,211,GRS210,211..ROY,ROYAL PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F972B3 |
AWS210,211,GRS210,211..ROYG SILVER ME.,1F7 |
1 | ||
| 52119-3F972C2 |
AWS210,211,GRS210,211..ROYG BLACK,202 |
1 | ||
| 52119-3F926A0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F926B0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52119-3F926B1 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F926A0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F927B1 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F927J0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F926J0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F926D0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F926B0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F927A0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F927C0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK,202 |
1 | ||
| 52119-3F926C0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-3F926C0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-3F926B1 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F928B0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),SILVER ME.,1F7 |
1 | ||
| 52119-3F928B0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F926D0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F927D0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F928A0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F928B1 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F926J0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F927B0 |
AWS210,211,GRS210,211..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F928C0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),BLACK,202 |
1 | ||
| 52119-3F929B1 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F928J0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F928J0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F929A0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F929J0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK.BLUE MC.,8S6 |
1 | ||
| 52119-3F928A0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),WHITE PEARL CS.,062 |
1 | ||
| 52119-3F928D0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F929B0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),SILVER ME.,1F7 |
1 | ||
| 52119-3F929D0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F928D0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F928C0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),BLACK,202 |
1 | ||
| 52119-3F929C0 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ付き),BLACK,202 |
1 | ||
| 52119-3F928B1 |
AWS210,211,GRS210,211..ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(ｲﾝﾃﾘｼﾞｪﾝﾄﾊﾟｰｷﾝｸﾞｱｼｽﾄ)&ﾊﾞｯｸﾓﾆﾀ−有り(全方向ﾓﾆﾀ付き),PRECIOUS SILVER,1J6 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-30140B1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG PRECIOUS SILVER,1J6 |
1 | ||
| 52129-30140B0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG SILVER ME.,1F7 |
1 | ||
| 52129-30140J0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BLUE MC.,8S6 |
1 | ||
| 52129-30140D0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK. RED M.M.,3Q3 |
1 | ||
| 52129-30140A0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG WHITE PEARL CS.,062 |
1 | ||
| 52129-30140C0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG BLACK,202 |
1 | ||
| 52129-30180A0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG WHITE PEARL CS.,062 |
1 | ||
| 52129-30180C0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG BLACK,202 |
1 | ||
| 52129-30180D0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK. RED M.M.,3Q3 |
1 | ||
| 52129-30180B0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG SILVER ME.,1F7 |
1 | ||
| 52129-30180B1 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG PRECIOUS SILVER,1J6 |
1 | ||
| 52129-30180J0 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG DK.BLUE MC.,8S6 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52422-30090 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 52712 - MOULDING, FRONT BUMPER SIDE, RH | ||||
| 52712-30110 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 52713A - MOULDING, FRONT BUMPER SIDE, LH | ||||
| 52713-30110 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 53122E - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53122-30230 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-30080 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81481-30170 |
AWS210,211,GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81481-30170 |
AWS210,211,GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81481-30170 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30170 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81481-30170 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81481-30220 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-30170 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| 81482-30200 |
AWS210,211,GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30200 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM) |
1 | ||
| 81482-30200 |
AWS210,211,GRS210,211..ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY 寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30200 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30200 |
AWS210,GRS210..ROY ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ&寒冷地仕様&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ)&ﾃﾚﾏﾃｨｸｽ−有り(DCM) |
1 | ||
| 81482-30240 |
AWS210,211,GRS210,211..ROY,ROYAL,ROYG |
1 | ||
| Common parts | ||||
| 52535-28020 | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8202 | ||||
| 8417 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
