AWS210-AEXUH (2015)

Toyota Crown/Hybrid

Production Sep 2015 - Apr 2018
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1509- )ARS210,AWS210,GRS210,214,GWS214

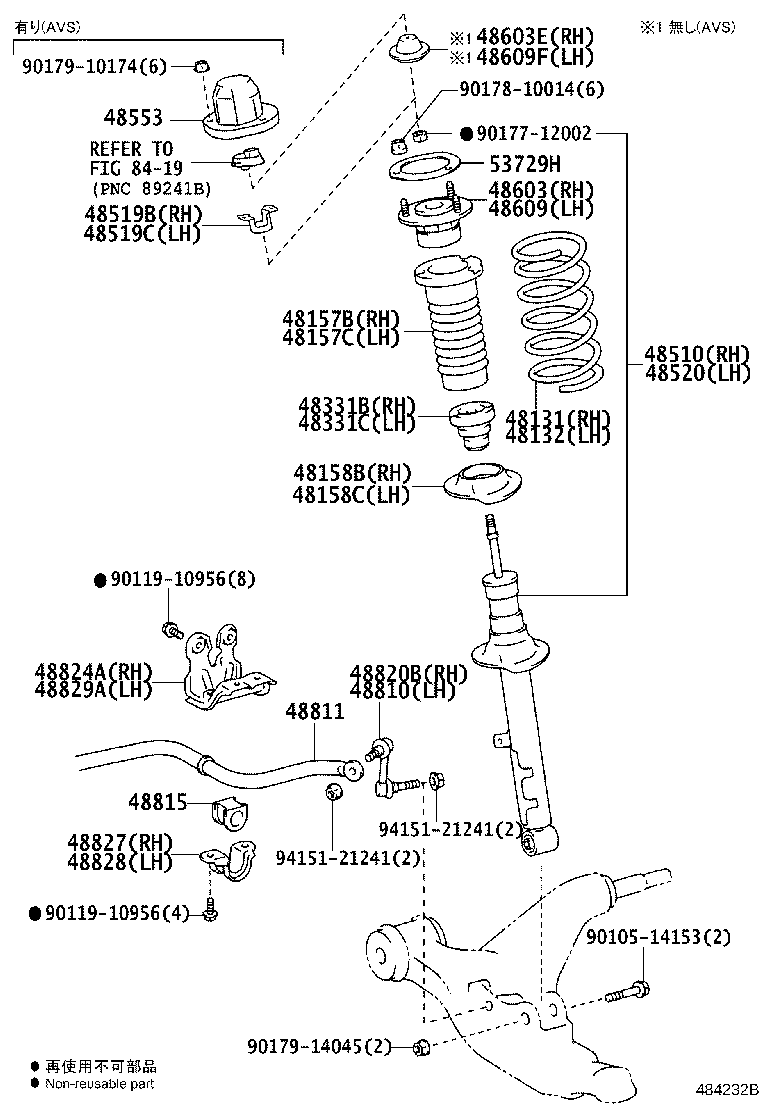

Click highlighted areas on diagram

diagram 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48510 48519B 48519C 48520 48553 48603 48603E 48609 48609F 48810 48811 48815 48820B 48824A 48827 48828 48829A 53729H 8419 9010514153 9011910956 9011910956 9017712002 9017810014 9017910174 9017914045 9415121241 9415121241
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-30D70

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48131-30D71

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48132 - SPRING, FRONT COIL, LH
48131-30D70

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48131-30D71

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-30080

ARS210,AWS210,GRS210,214,GWS214

 1
48157-30250

AWS210,GRS210,214,GWS214

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-30080

ARS210,AWS210,GRS210,214,GWS214

 1
48157-30250

AWS210,GRS210,214,GWS214

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-30020

ARS210,AWS21#,GRS21#,GWS214

 1
48158-30020

AWS21#,GRS21#,GWS214

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-30020

ARS210,AWS21#,GRS21#,GWS214

 1
48158-30020

AWS21#,GRS21#,GWS214

 1
48331B - BUMPER, FRONT SPRING, RH
48331-30230

AWS210,GRS210,214,GWS214

 1
48331-30260

ARS210,AWS210,GRS210,214,GWS214

 1
48331C - BUMPER, FRONT SPRING, LH
48331-30230

AWS210,GRS210,214,GWS214

 1
48331-30260

ARS210,AWS210,GRS210,214,GWS214

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80608

AWS210,GRS210..ROY,ROYAL,ROYG

ﾏｰｸ 48510−30A10

 1
48510-80822

AWS210..ROY,ROYAL,ROYG

ﾏｰｸ 48510−30E10

 1
48510-80A09

AWS210,GRS210..ROY,ROYAL,ROYG

ﾏｰｸ 48510−30E11

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-80322

AWS210,GRS210..ROY,ROYAL,ROYG

ﾏｰｸ 48520−30600

 1
48520-80498

AWS210..ROY,ROYAL,ROYG

ﾏｰｸ 48520−30810

 1
48520-80575

AWS210,GRS210..ROY,ROYAL,ROYG

ﾏｰｸ 48520−30811

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-30250

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48609-30250

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48603E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
90950-01659

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-30250

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48609-30250

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48609F - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
90950-01659

AWS210,211,GRS210,211..ROY,ROYAL,ROYG

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-30070

AWS210,GRS210,214,GWS214

 1
48810-30070

ARS210,AWS210,GRS210,214,GWS214

 1
48811 - BAR, STABILIZER, FRONT
48811-30760

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48811-30760

AWS210,GRS210..ROY,ROYAL,ROYG

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30670

AWS211,GRS211;AWS210,215,GRS210..MJ,ROY,ROYAL,ROYG

 2
48815-30670

AWS211,GRS211;AWS210,215,GRS210..MJ,ROY,ROYAL,ROYG

 2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-30090

AWS210,GRS210,214,GWS214

 1
48820-30090

ARS210,AWS210,GRS210,214,GWS214

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-30130

AWS210,GRS210,214,GWS214

 1
48809-30130

ARS210,AWS210,GRS210,214,GWS214

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-30130

AWS210,GRS210,214,GWS214

 1
48824-30130

ARS210,AWS210,GRS210,214,GWS214

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-30130

AWS210,GRS210,214,GWS214

 1
48824-30130

ARS210,AWS210,GRS210,214,GWS214

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30130

ARS210,AWS210,GRS210,214,GWS214

 1
48809-30130

AWS210,GRS210,214,GWS214

 1
53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53729-53020

ARS210,AWS21#,GRS21#,GWS214

 2
Common parts
90105-14153
90119-10956
90177-12002
90178-10014
90179-10174
90179-14045
94151-21241
Linked diagrams
8419
