AWS210-AEXUH (2015)

Toyota Crown/Hybrid

Production Sep 2015 - Apr 2018
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

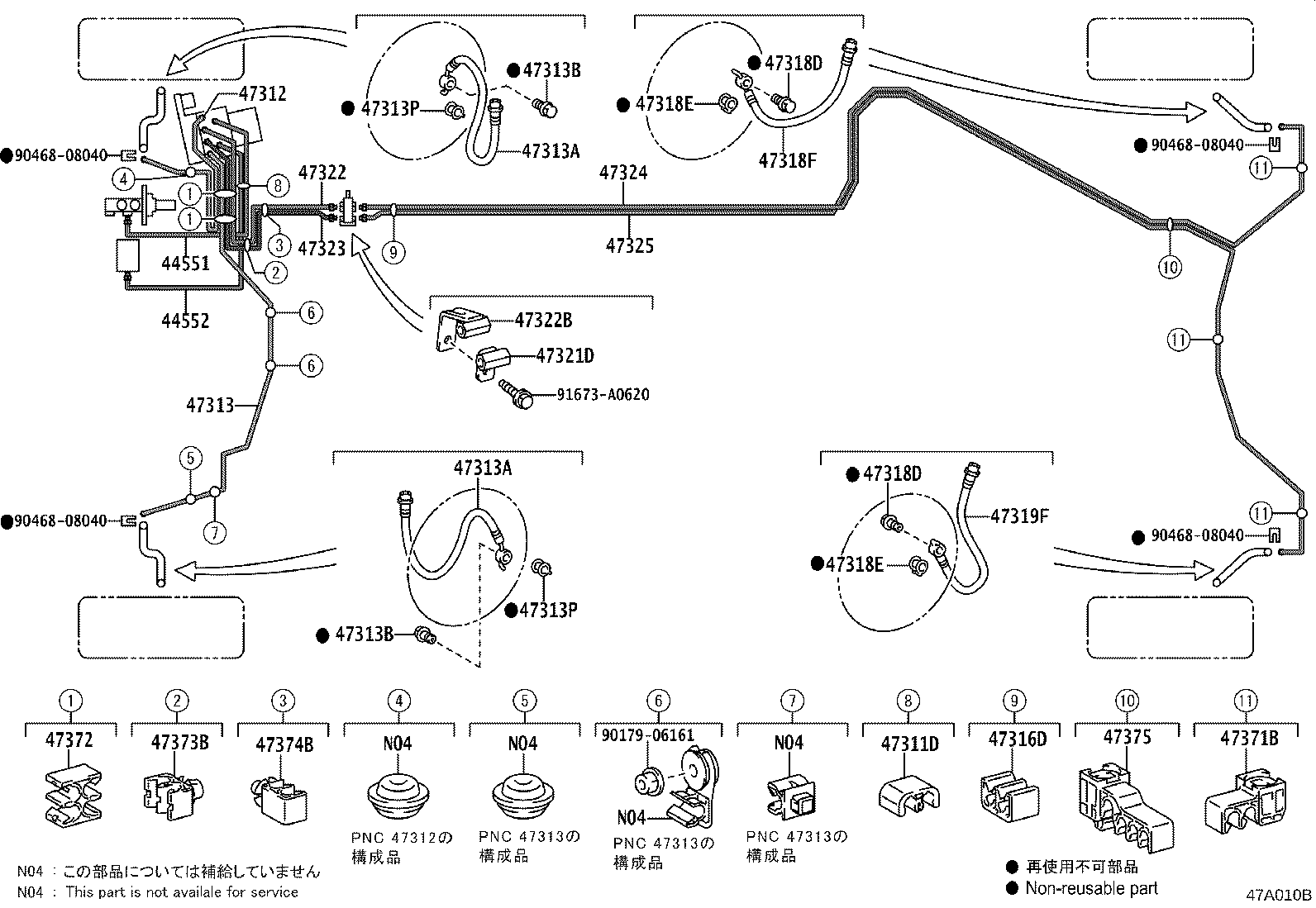

ILLUST NO. 1 OF 2(1509- )AWS210

Click highlighted areas on diagram

diagram 44551 44552 47311D 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47316D 47318D 47318D 47318E 47318E 47318F 47319F 47321D 47322 47322B 47323 47324 47325 47371B 47372 47373B 47374B 47375 9017906161 9046808040 9046808040 9046808040 9046808040 91673A0620
Part # Description Qty Price
44551 - TUBE, BRAKE ACTUATOR, NO.1
44551-24060

AWS21#,GWS214

 1
44552 - TUBE, BRAKE ACTUATOR, NO.2
44552-24050

AWS21#,GWS214

 1
47311D - GROMMET(FOR FRONT BRAKE TUBE)
90480-01555

AWS21#,GWS214

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-24160

AWS210,GWS214

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-30751

AWS210,GWS214

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G87

AWS210,GRS210

 2
90947-02G87

ARS210,AWS210,GRS210

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G87

AWS210,GRS210

 2
90947-02G87

ARS210,AWS210,GRS210

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ARS210,AWS21#,GRS21#,GWS214

 2
90401-10058

AWS21#,GRS21#,GWS214

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ARS210,AWS21#,GRS21#,GWS214

 2
90401-10058

AWS21#,GRS21#,GWS214

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ARS210,AWS21#,GRS21#,GWS214

 2
47389-50020

AWS21#,GRS21#,GWS214

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ARS210,AWS21#,GRS21#,GWS214

 2
47389-50020

AWS21#,GRS21#,GWS214

 2
47316D - GROMMET(FOR REAR BRAKE TUBE)
90480-01621

ARS210,AWS21#,GRS21#,GWS214

 1
90480-01621

AWS21#,GRS21#,GWS214

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ARS210,AWS21#,GRS21#,GWS214

 2
90401-10058

AWS21#,GRS21#,GWS214

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ARS210,AWS21#,GRS21#,GWS214

 2
90401-10058

AWS21#,GRS21#,GWS214

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ARS210,AWS21#,GRS21#,GWS214

 2
47389-50020

AWS21#,GRS21#,GWS214

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ARS210,AWS21#,GRS21#,GWS214

 2
47389-50020

AWS21#,GRS21#,GWS214

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02G89

ARS210,AWS21#,GRS21#,GWS214

 1
90947-02G89

AWS21#,GRS21#,GWS214

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G89

AWS21#,GRS21#,GWS214

 1
90947-02G89

ARS210,AWS21#,GRS21#,GWS214

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10292

AWS21#,GRS21#,GWS214

 1
90412-10292

ARS210,AWS21#,GRS21#,GWS214

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-30482

AWS21#,GWS214

 1
47322-30481

AWS21#,GWS214

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90412-10297

AWS21#,GRS21#,GWS214

 1
90412-10297

ARS210,AWS21#,GRS21#,GWS214

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-30441

AWS21#,GWS214

 1
47323-30442

AWS21#,GWS214

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-30340

AWS210,211,GRS21#

 1
47324-30340

ARS210,AWS210,211,GRS21#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-30120

AWS210,211,GRS21#

 1
47325-30120

ARS210,AWS210,211,GRS21#

 1
47371B - CLAMP, BRAKE TUBE, NO.6
90949-01D11

AWS21#,GRS21#,GWS214

 3
90949-01D11

ARS210,AWS21#,GRS21#,GWS214

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90464-00876

AWS21#,GWS214

 2
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D12

ARS210,AWS21#,GRS21#,GWS214

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01D13

ARS210,AWS21#,GRS21#,GWS214

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90949-01D09

ARS210,AWS21#,GRS21#,GWS214

 1
90949-01D09

AWS21#,GRS21#,GWS214

 1
Common parts
90179-06161
90468-08040
91673-A0620
