Toyota Crown/hybrid AWS210 RADIATOR & WATER OUTLET

Part #	Description	Period	Qty
16361 - FAN
16361-38090	2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG	09/2015 - 04/2018	1
16361B - FAN, NO.2
16361-38100	2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG	09/2015 - 04/2018	1
16363 - MOTOR, COOLING FAN
16363-36130	2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG	09/2015 - 04/2018	1
16363A - MOTOR, COOLING FAN, NO.2
16363-36150	2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG	09/2015 - 04/2018	1
16400 - RADIATOR ASSY
16400-36300	2ARFSE..AWS210,211	09/2015 - 04/2018	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 12/2999	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-36031	2ARFSE..AWS210,211	09/2015 - 03/2016	1
16470-36032	2ARFSE,8ARFTS..ARS210,AWS210,211	04/2016 - 04/2018	1
16470M - GROMMET
90480-18010	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	1
16471B - CAP, RESERVE TANK
16475-37011	2ARFSE,8ARFTS..ARS210,AWS210,211	09/2015 - 04/2016	1
16475-28140	2ARFSE,8ARFTS..ARS210,AWS21#	04/2016 - 12/2999	1
16520A - CAP SUB-ASSY, WATER FILLER
16501-36013	2ARFSE,8ARFTS..ARS210,AWS21#	04/2016 - 04/2018	1
16501-36012	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 03/2016	1
16523A - CUSHION, RADIATOR SUPPORT
16523-38010	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16535 - SUPPORT, RADIATOR, LOWER
90480-40021	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 03/2016	2
90480-40022	2ARFSE,8ARFTS..ARS210,AWS21#	04/2016 - 04/2018	2
16561 - SEAL, RADIATOR TO SUPPORT, NO.1
16561-31110	2ARFSE,8ARFTS..ARS210,AWS210,211	09/2015 - 04/2018	1
16562 - SEAL, RADIATOR TO SUPPORT, NO.2
16562-31060	2ARFSE,8ARFTS..ARS210,AWS210,211	09/2015 - 04/2018	1
16563 - SEAL, RADIATOR TO SUPPORT, NO.3
16563-31050	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16563 - SEAL, RADIATOR TO SUPPORT, NO.3
16563-31050	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16566 - HOSE, RESERVE TANK OUTLET
16566-36010	2ARFSE,8ARFTS..ARS210,AWS210,211	09/2015 - 03/2017	1
16566-36011	2ARFSE,8ARFTS..ARS210,AWS21#	04/2017 - 04/2018	1
16566A - CLIP(FOR RESERVE TANK OUTLET)
96137-41701	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16566A - CLIP(FOR RESERVE TANK OUTLET)
96137-41701	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16567 - HOSE(FOR RADIATOR RESERVE TANK)
16567-36030	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	1
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
96136-42701	2ARFSE,8ARFTS..ARS210,AWS21# NO.2	09/2015 - 04/2018	1
90466-21004	2ARFSE,8ARFTS..ARS210,AWS21# NO.1	09/2015 - 04/2018	1
16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE)
96136-42701	2ARFSE,8ARFTS..ARS210,AWS21# NO.2	09/2015 - 04/2018	1
90466-21004	2ARFSE,8ARFTS..ARS210,AWS21# NO.1	09/2015 - 04/2018	1
16571C - HOSE, RADIATOR, NO.1
16571-36140	2ARFSE..AWS21#	09/2015 - 04/2018	1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16572D - HOSE, RADIATOR, NO.2
16572-36140	2ARFSE..AWS210,211	09/2015 - 04/2018	1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16573B - HOSE, RADIATOR, NO.3
16573-36020	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16574 - HOSE, RADIATOR, NO.4
16574-36010	2ARFSE..AWS210,211	09/2015 - 04/2018	1
16574A - CLIP, RADIATOR HOSE, NO.4
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16574A - CLIP, RADIATOR HOSE, NO.4
90466-39002	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	2
16577C - PIPE, RADIATOR
16577-36020	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	1
16578 - PIPE, RADIATOR, NO.2
16578-36010	2ARFSE,8ARFTS..ARS210,AWS21#	09/2015 - 04/2018	1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-28070	2ARFSE..AWS21#	09/2015 - 04/2018	1
16711 - SHROUD, FAN
16711-36260	2ARFSE..AWS210,211..ROY,ROYAL,ROYG	09/2015 - 04/2018	1
Common parts
90099-04119
90099-05164
91671-A0620
Linked diagrams
1709
8401

AWS210-AEXUH (2015)

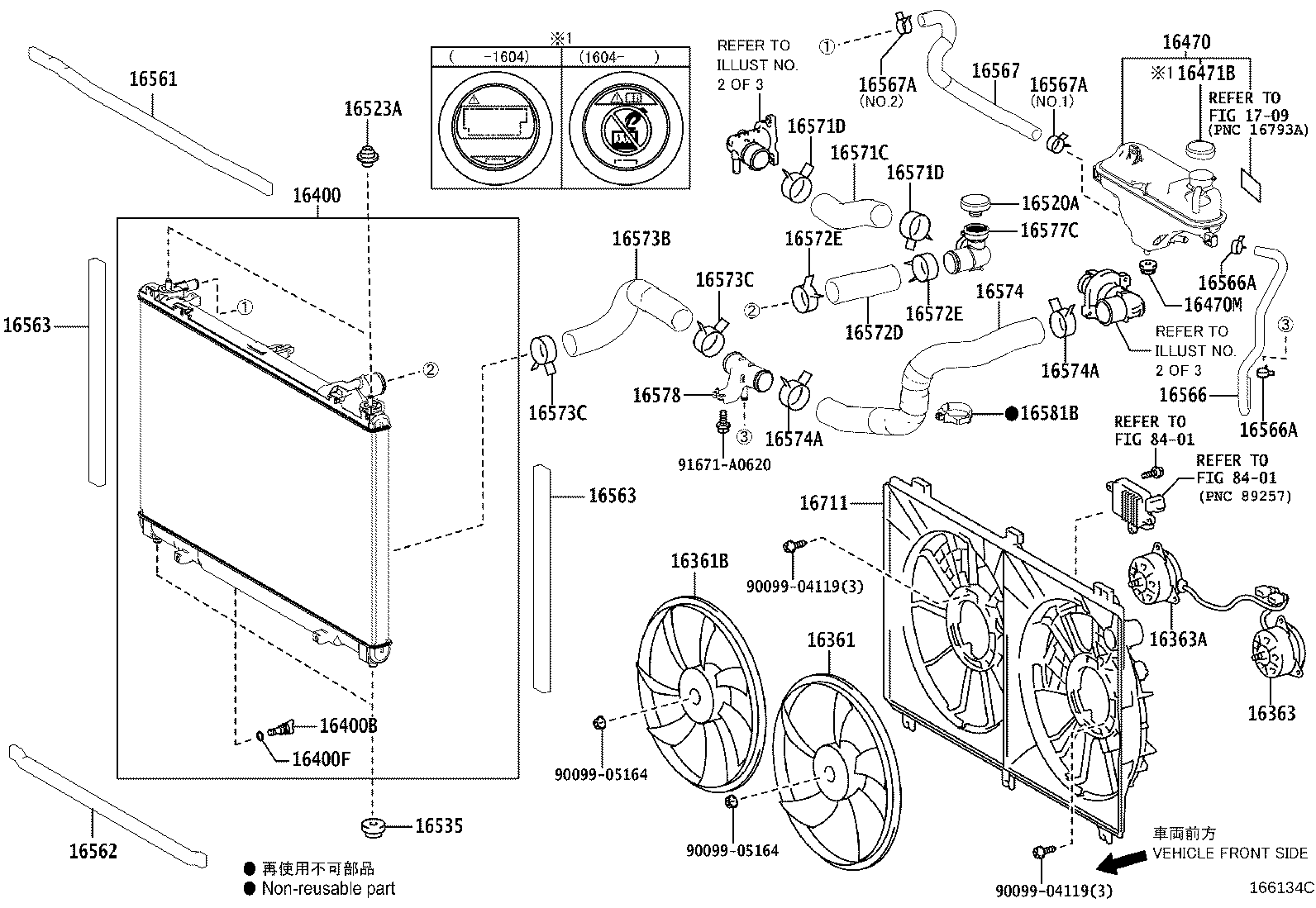

ILLUST NO. 1 OF 3(1509- )2ARFSE..AWS210,211
