AWS210-AEXQH (2013)
Toyota Crown/Hybrid
(1212-1509)ROY,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89340A - COMPUTER ASSY, CLEARANCE WARNING | ||||
| 89340-30060 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89340-30130 |
AWS210,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89340-30060 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89341A - SENSOR, ULTRASONIC, NO.1 | ||||
| 89341-30090B0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),GRAY METALLIC |
2 | ||
| 89341-30090C0 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK |
2 | ||
| 89341B - SENSOR, ULTRASONIC, NO.2 | ||||
| 89341-30100 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
2 | ||
| 89341-30100 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
2 | ||
| 89341C - SENSOR, ULTRASONIC, NO.3 | ||||
| 89341-30040B1 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89341-30040A0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89341-30040B0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89341-30040D0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
4 | ||
| 89341-30040J0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
4 | ||
| 89341-30040C0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
4 | ||
| 89341-30040A0 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89341-30040B0 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89341-30040C1 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS BLACK,219 |
4 | ||
| 89341-30040B1 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89341C - SENSOR, ULTRASONIC, NO.3 | ||||
| 89341-30040B1 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89341-30040A0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89341-30040B0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89341-30040D0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
4 | ||
| 89341-30040J0 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
4 | ||
| 89341-30040C0 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
4 | ||
| 89341-30040A0 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89341-30040B0 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89341-30040C1 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS BLACK,219 |
4 | ||
| 89341-30040B1 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89343C - BUZZER, CLEARANCE WARNING, NO.1 | ||||
| 89343-72010 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89343-72010 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
1 | ||
| 89348C - RETAINER, ULTRASONIC SENSOR, NO.3 | ||||
| 89348-30030B4 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89348-30030C3 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
4 | ||
| 89348-30030D4 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
4 | ||
| 89348-30030P2 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89348-30030J2 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
4 | ||
| 89348-30030A4 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89348-30030A4 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89348-30030P2 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89348-30030C5 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS BLACK,219 |
4 | ||
| 89348-30030B4 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89348C - RETAINER, ULTRASONIC SENSOR, NO.3 | ||||
| 89348-30030B4 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89348-30030C3 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),BLACK,202 |
4 | ||
| 89348-30030D4 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK. RED M.M.,3Q3 |
4 | ||
| 89348-30030P2 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89348-30030J2 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),DK.BLUE MC.,8S6 |
4 | ||
| 89348-30030A4 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89348-30030A4 |
AWS210,211,GRS21#..ATHG,ATHS,ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),WHITE PEARL CS.,062 |
4 | ||
| 89348-30030P2 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS SILVER,1J6 |
4 | ||
| 89348-30030C5 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),PRECIOUS BLACK,219 |
4 | ||
| 89348-30030B4 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ),SILVER ME.,1F7 |
4 | ||
| 89348J - CLIP, ULTRASONIC SENSOR | ||||
| 89348-35030 |
AWS210,211,GRS210,211..ROY,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
2 | ||
| 89348-35030 |
AWS210,211..ROY “Black Style”*(A)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り(8ｾﾝｻ) |
2 | ||

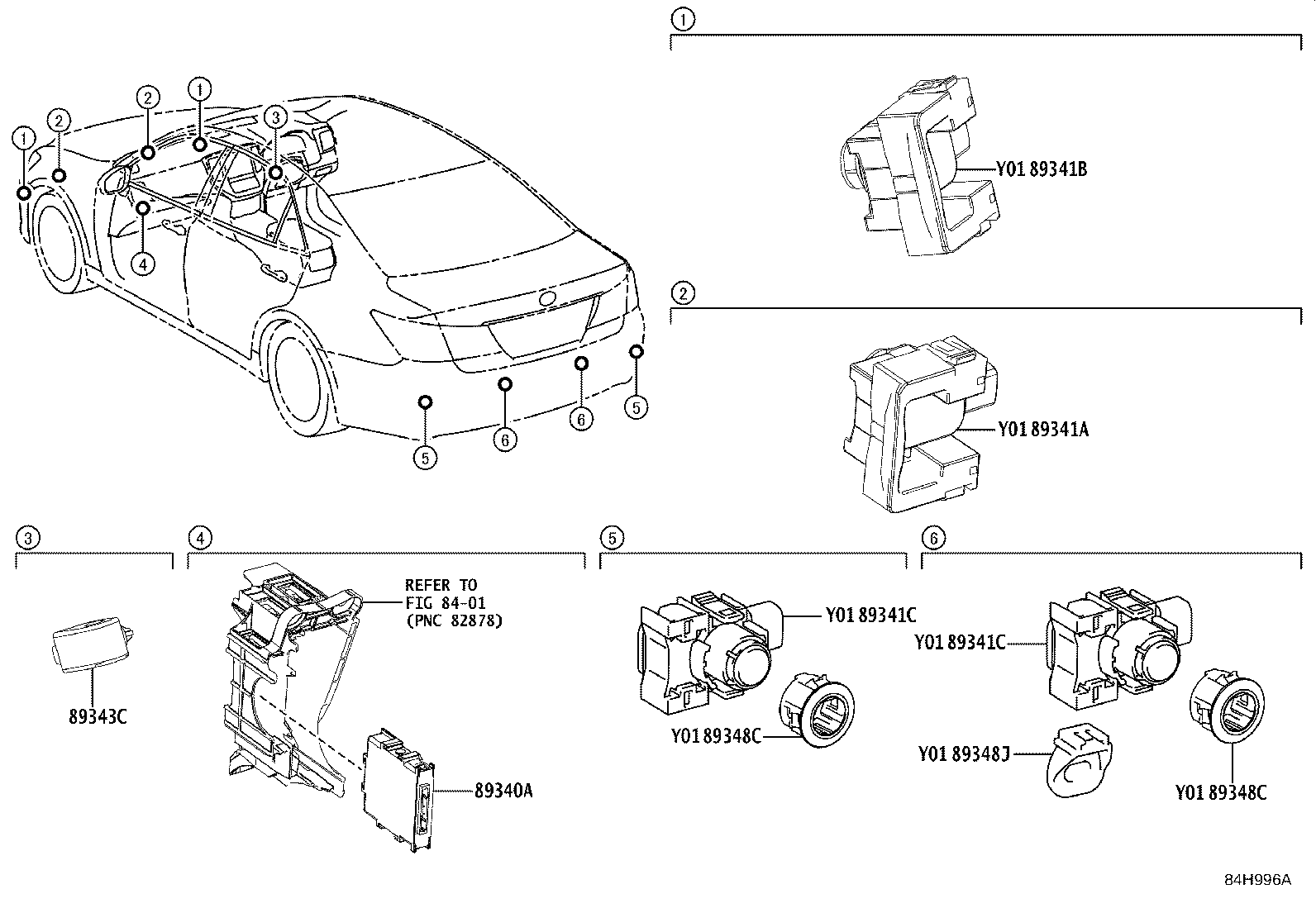

| Linked diagrams | ||||
| 8401 | ||||
