AWS210-AEXQH (2013)
Toyota Crown/Hybrid

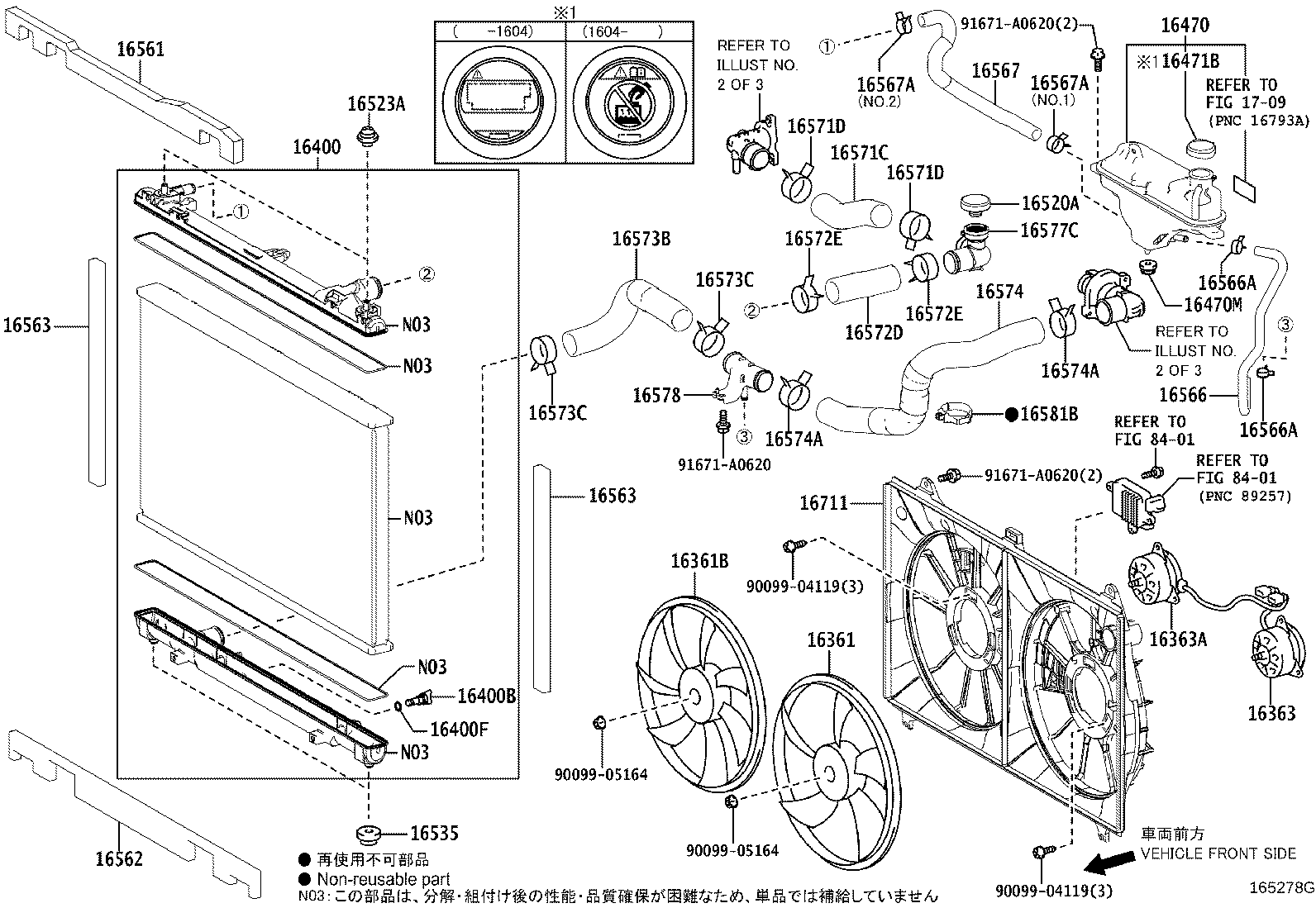

ILLUST NO. 1 OF 3(1301-1509)2ARFSE ; (1509- )2ARFSE..AWS215
ﾗｼﾞｴｰﾀｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-38090 |
2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-38100 |
2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-36130 |
2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-36150 |
2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-31830 |
2ARFSE..AWS21# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
2ARFSE..AWS21# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2ARFSE..AWS21# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31161 |
2ARFSE..AWS21# |
1 | ||
| 16470-31160 |
2ARFSE..AWS21# |
1 | ||
| 16470-31162 |
2ARFSE..AWS21# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
2ARFSE..AWS21# |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-37010 |
2ARFSE..AWS21# |
1 | ||
| 16475-37011 |
2ARFSE..AWS21# |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16501-36012 |
2ARFSE..AWS21# |
1 | ||
| 16501-36011 |
2ARFSE..AWS21# |
1 | ||
| 16501-36010 |
2ARFSE..AWS21# |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-38010 |
2ARFSE..AWS21# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40021 |
2ARFSE..AWS21# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31090 |
2ARFSE..AWS21# |
1 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-31040 |
2ARFSE..AWS21# |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31020 |
2ARFSE..AWS21# |
2 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-31020 |
2ARFSE..AWS21# |
2 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-36010 |
2ARFSE..AWS21# |
1 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2ARFSE..AWS21# |
2 | ||
| 16566A - CLIP(FOR RESERVE TANK OUTLET) | ||||
| 96137-41701 |
2ARFSE..AWS21# |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-31030 |
2ARFSE..AWS21# |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-21004 |
2ARFSE..AWS21# NO.1 & NO.2 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90466-21004 |
2ARFSE..AWS21# NO.1 & NO.2 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-36140 |
2ARFSE..AWS21# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-36140 |
2ARFSE..AWS210,211 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-36020 |
2ARFSE..AWS21# |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-36010 |
2ARFSE..AWS210,211 |
1 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16574A - CLIP, RADIATOR HOSE, NO.4 | ||||
| 90466-39002 |
2ARFSE..AWS21# |
2 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-36020 |
2ARFSE..AWS21# |
1 | ||
| 16578 - PIPE, RADIATOR, NO.2 | ||||
| 16578-36010 |
2ARFSE..AWS21# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-28070 |
2ARFSE..AWS21# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-36170 |
2ARFSE..AWS21#..MJ,ROY,ROYAL,ROYG |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91671-A0620 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||

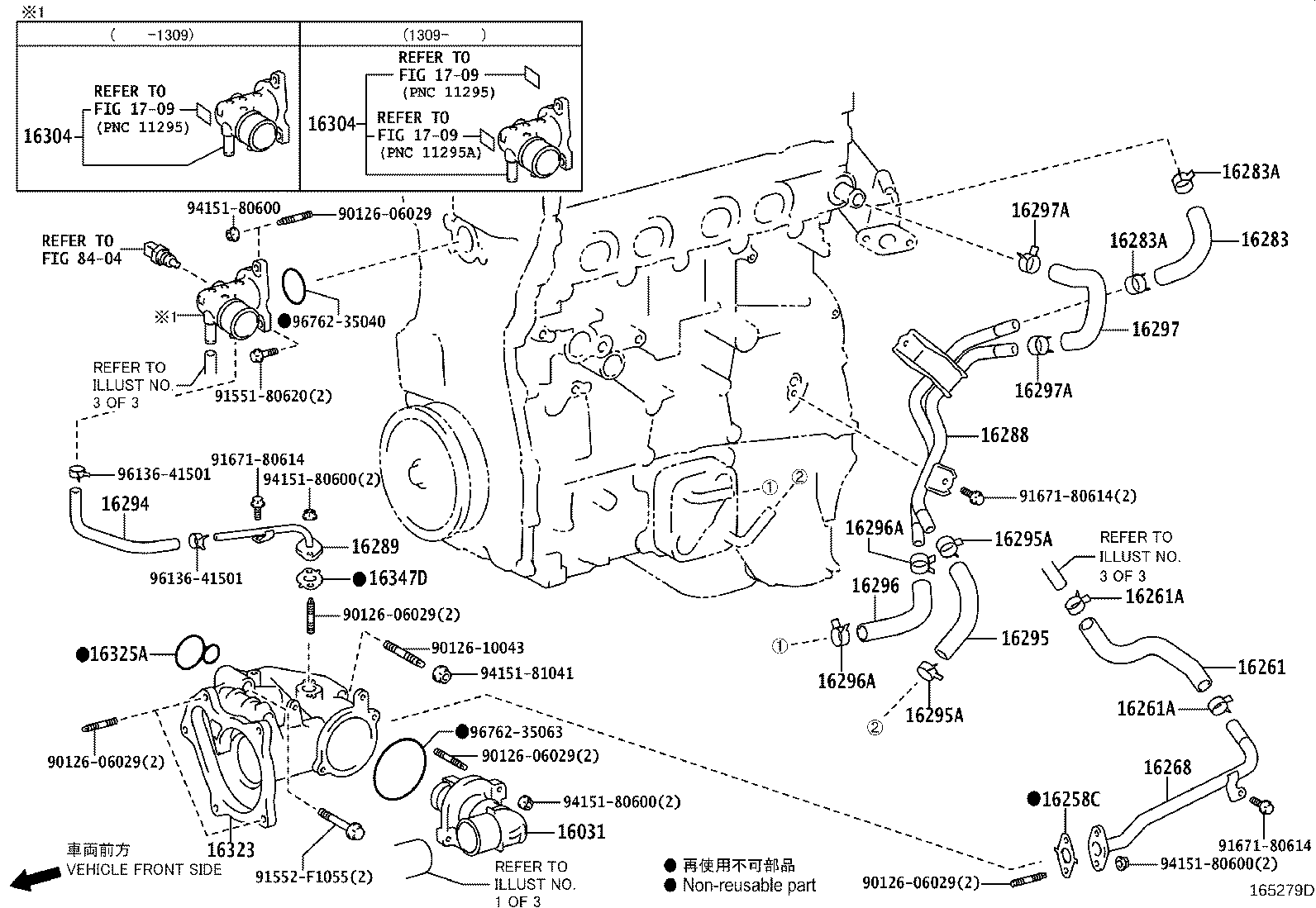

ILLUST NO. 2 OF 3(1301- )2ARFSE..AWS210
ｴｷｿﾞｰｽﾄｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-36020 |
2ARFSE..AWS21# |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36030 |
2ARFSE..AWS21# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-36070 |
2ARFSE..AWS21# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2ARFSE..AWS21# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-42701 |
2ARFSE..AWS21# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-36100 |
2ARFSE..AWS21# |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-36040 |
2ARFSE..AWS210 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-36010 |
2ARFSE..AWS210 |
1 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-36010 |
2ARFSE..AWS21# |
1 | ||
| 16294 - HOSE, WATER BY-PASS, NO.11 | ||||
| 16294-36010 |
2ARFSE..AWS21# |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-36010 |
2ARFSE..AWS210 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-36020 |
2ARFSE..AWS210 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42101 |
2ARFSE..AWS21# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42101 |
2ARFSE..AWS21# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-36020 |
2ARFSE..AWS210 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-36010 |
2ARFSE..AWS210 |
1 | ||
| 16304-36011 |
2ARFSE..AWS21# |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-36010 |
2ARFSE..AWS210 |
1 | ||
| 16304-36011 |
2ARFSE..AWS21# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-36040 |
2ARFSE..AWS21# |
1 | ||
| 16325A - GASKET, WATER INLET HOUSING | ||||
| 16325-36020 |
2ARFSE..AWS21# |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-36010 |
2ARFSE..AWS21# |
1 | ||
| Common parts | ||||
| 90126-06029 | ||||
| 90126-10043 | ||||
| 91551-80620 | ||||
| 91552-F1055 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-81041 | ||||
| 96136-41501 | ||||
| 96762-35040 | ||||
| 96762-35063 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8404 | ||||

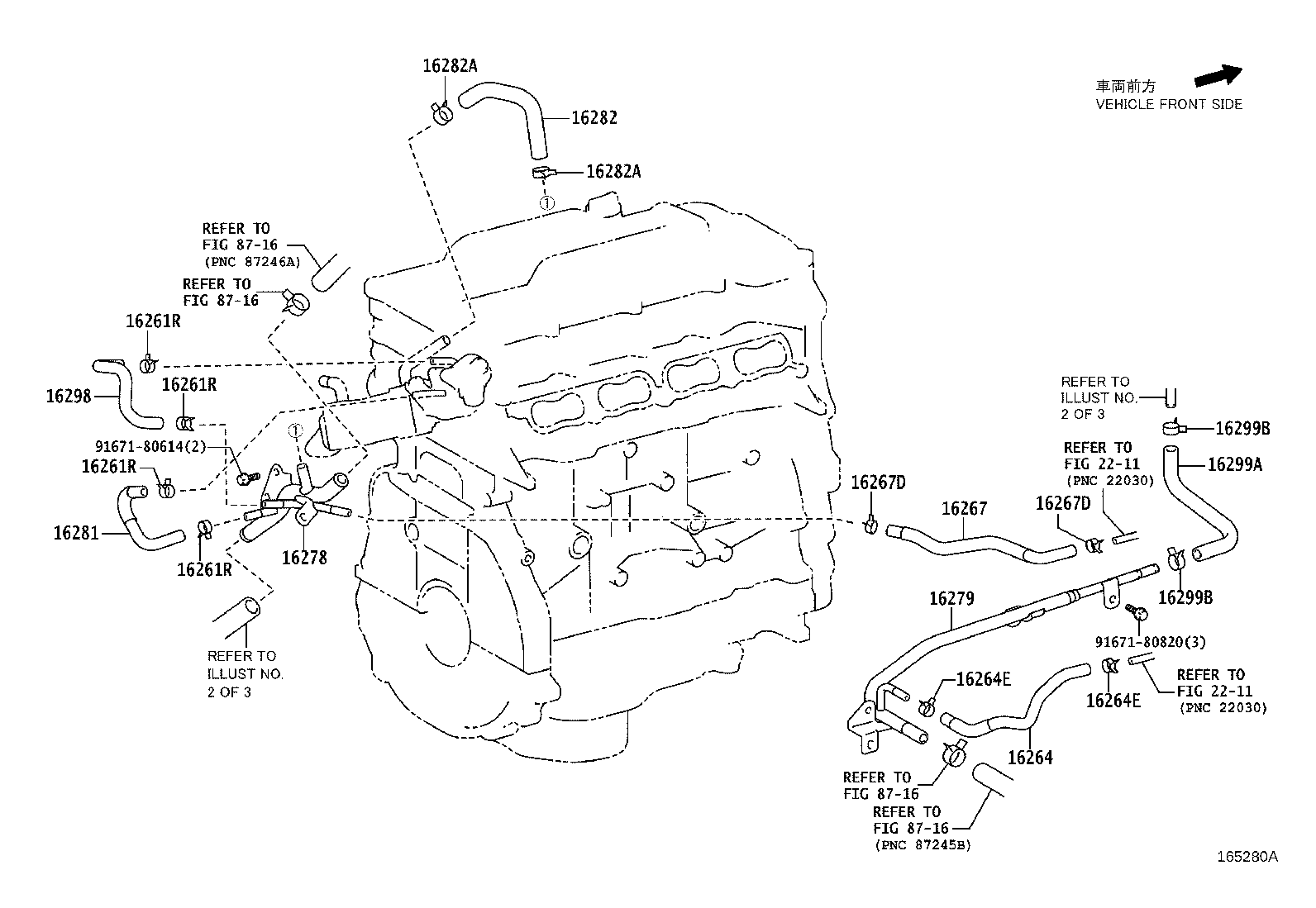

ILLUST NO. 3 OF 3(1301- )2ARFSE..AWS210
ｲﾝﾃｰｸｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
2ARFSE..AWS210 |
4 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
2ARFSE..AWS210 |
4 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
2ARFSE..AWS210 |
4 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
2ARFSE..AWS210 |
4 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36050 |
2ARFSE..AWS21# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
2ARFSE..AWS21# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
2ARFSE..AWS21# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-36070 |
2ARFSE..AWS21# |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
2ARFSE..AWS21# |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
2ARFSE..AWS21# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-36020 |
2ARFSE..AWS210 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-36030 |
2ARFSE..AWS210 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-36050 |
2ARFSE..AWS210 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-36050 |
2ARFSE..AWS210 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
2ARFSE..AWS210 |
2 | ||
| 16298 - HOSE, WATER BY-PASS, NO.12 | ||||
| 16298-36010 |
2ARFSE..AWS210 |
1 | ||
| 16299A - HOSE, WATER BY-PASS, NO.13 | ||||
| 16299-36010 |
2ARFSE..AWS21# |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96137-51701 |
2ARFSE..AWS21# |
2 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96137-51701 |
2ARFSE..AWS21# |
2 | ||
| Common parts | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8716 | ||||
