AWS210-AEXQH (2013)

Toyota Crown/Hybrid

Production Jan 2013 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )2ARFSE

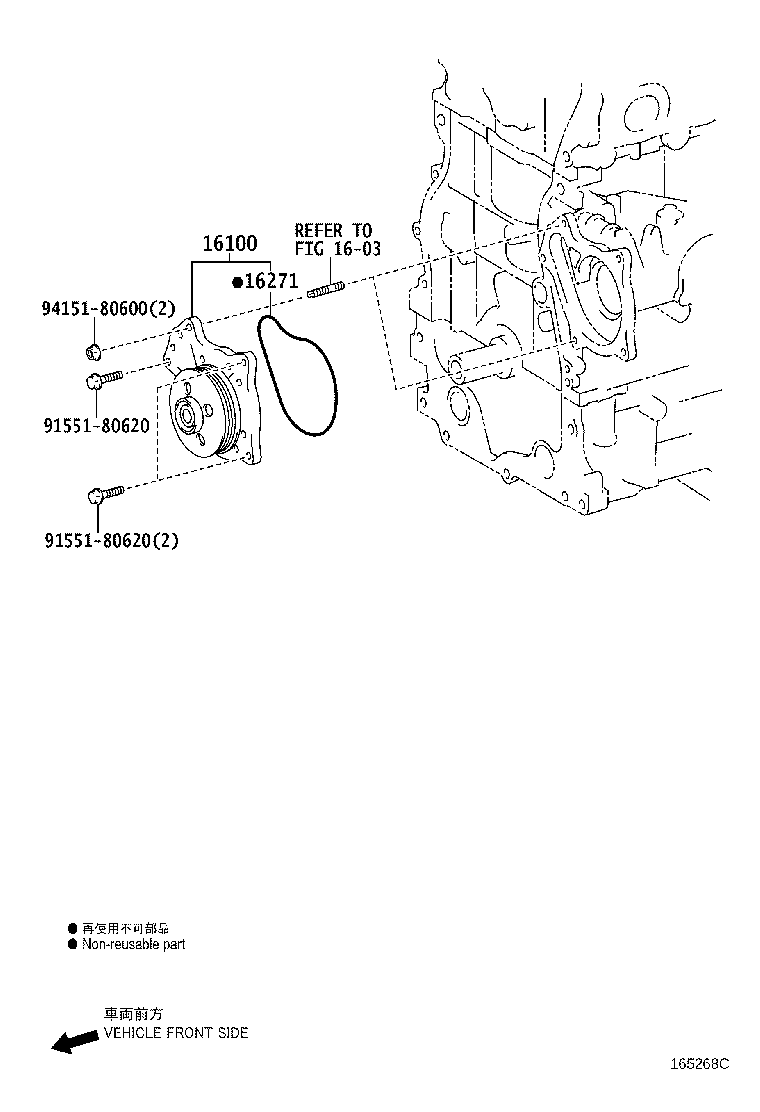

Click highlighted areas on diagram

diagram 1603 16100 16271 9155180620 9155180620 9415180600
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39575

2ARFSE..AWS21#

 1
16271 - GASKET, WATER PUMP
16271-36030

2ARFSE..AWS21#

 1
Common parts
91551-80620
94151-80600
Linked diagrams
1603
