AWS210-AEXLH (2013)
Toyota Crown/Hybrid
Production
Jan 2013
-
Sep 2015
Engine
2ARFSE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1212-1509)

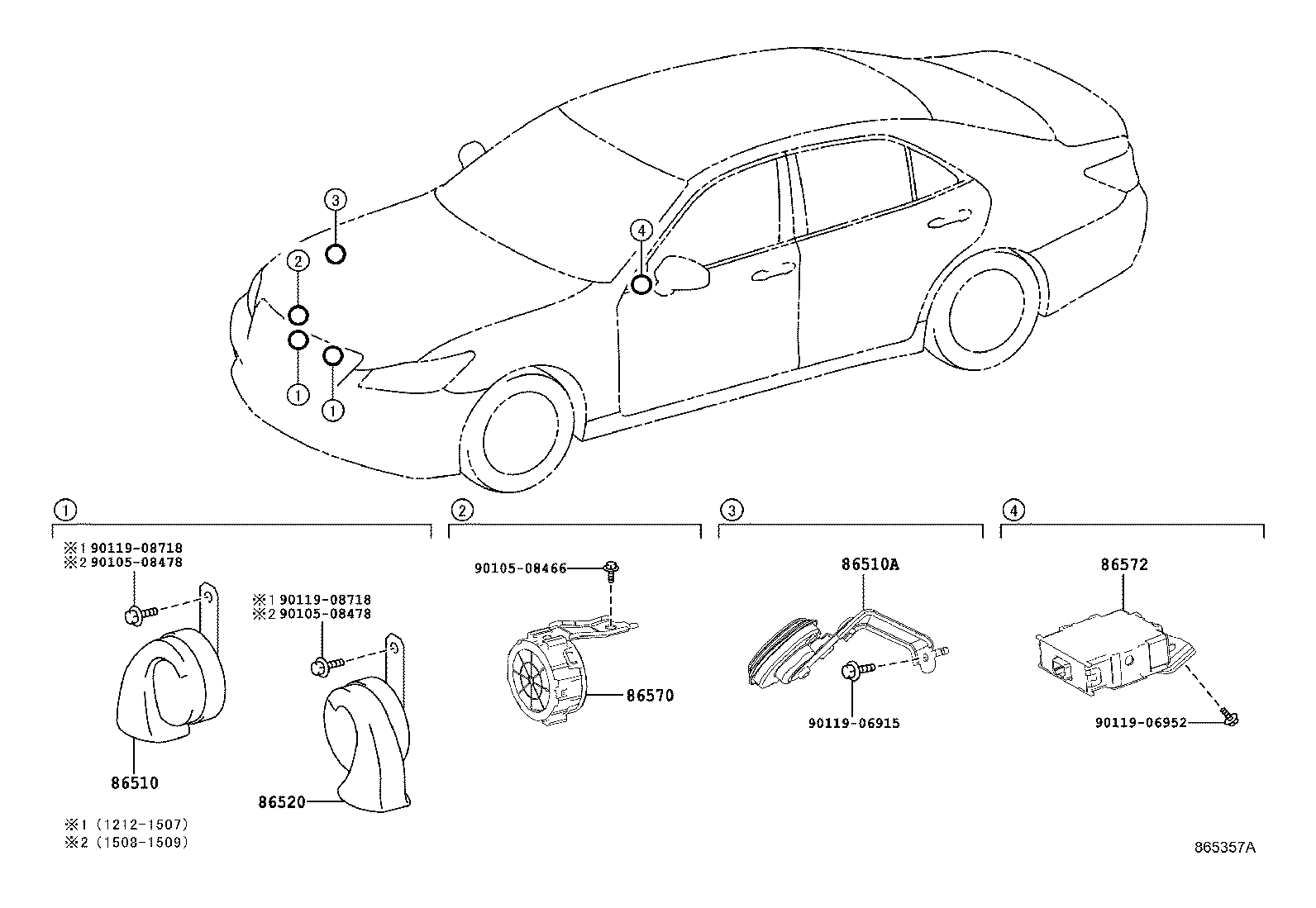

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86510 - HORN ASSY, HIGH PITCHED | ||||
| 86510-30740 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 86510A - HORN ASSY, SECURITY | ||||
| 86560-30030 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 86520 - HORN ASSY, LOW PITCHED | ||||
| 86520-30650 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 86570 - SPEAKER ASSY, VEHICLE APPROACHING | ||||
| 86570-30020 |
AWS21#,GWS214 |
1 | ||
| 86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER | ||||
| 86572-30020 |
AWS21#,GWS214 |
1 | ||
| Common parts | ||||
| 90105-08466 | ||||
| 90105-08478 | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| 90119-08718 | ||||
