AWS210-AEXLH (2013)

Toyota Crown/Hybrid

Production Jan 2013 - Sep 2015
Engine 2ARFSE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1301- )AWS210

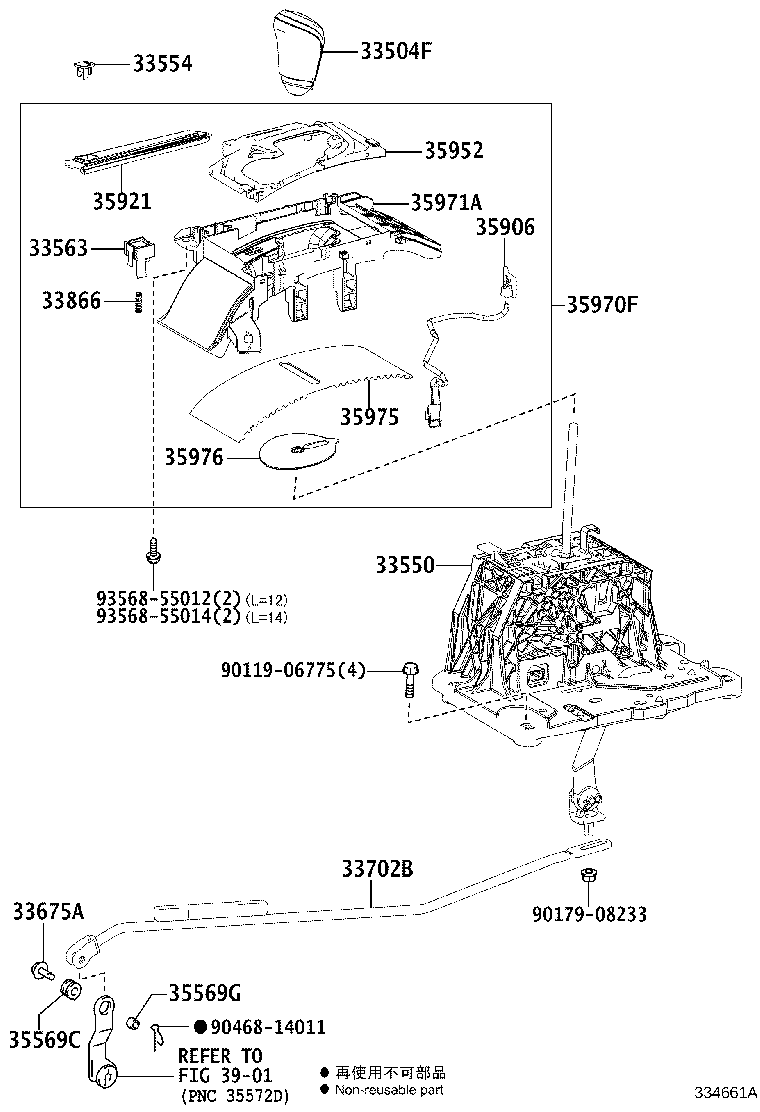

Click highlighted areas on diagram

diagram 33504F 33550 33554 33563 33675A 33702B 33866 35569C 35569G 35906 35921 35952 35970F 35971A 35975 35976 3901 9011906775 9017908233 9046814011 9356855012 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-30520E1

AWS210,211..ROY

BROWN & BLACK,TRIM0#,2#,4#

 1
33504-30520E1

AWS210,211..ROYAL,ROYG;GRS210,211..ROY,ROYAL,ROYG

BROWN & BLACK,TRIM0#,4#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-30D10

AWS210,GWS214

 1
33554 - CAP, SHIFT LEVER
33554-30110

AWS21#,GRS21#,GWS214

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-30250

AWS21#,GRS21#,GWS214

 1
33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33726-30020

AWS21#,GRS21#,GWS214

 1
33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33702-30670

AWS210

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-42020

AWS21#,GRS21#,GWS214

 1
35569C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17013

AWS21#,GRS21#,GWS214

 1
35569G - BUSH (FOR TRANSMISSION CONTROL ROD)
90560-08091

AWS21#,GRS21#,GWS214

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-39005

AWS21#,GRS21#,GWS214

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-30530

AWS21#,GRS210,211,GWS214

 1
35952 - LENS, POSITION INDICATOR
35952-30190

AWS21#,GRS21#,GWS214

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-30150

AWS21#,GRS210,211,GWS214

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-30570

AWS21#,GRS21#,GWS214

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-30320

AWS21#,GRS21#,GWS214

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-33160

AWS21#,GRS21#,GWS214

 1
Common parts
90119-06775
90179-08233
90468-14011
93568-55012
93568-55014
Linked diagrams
3901
