ARS220-AEZSZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

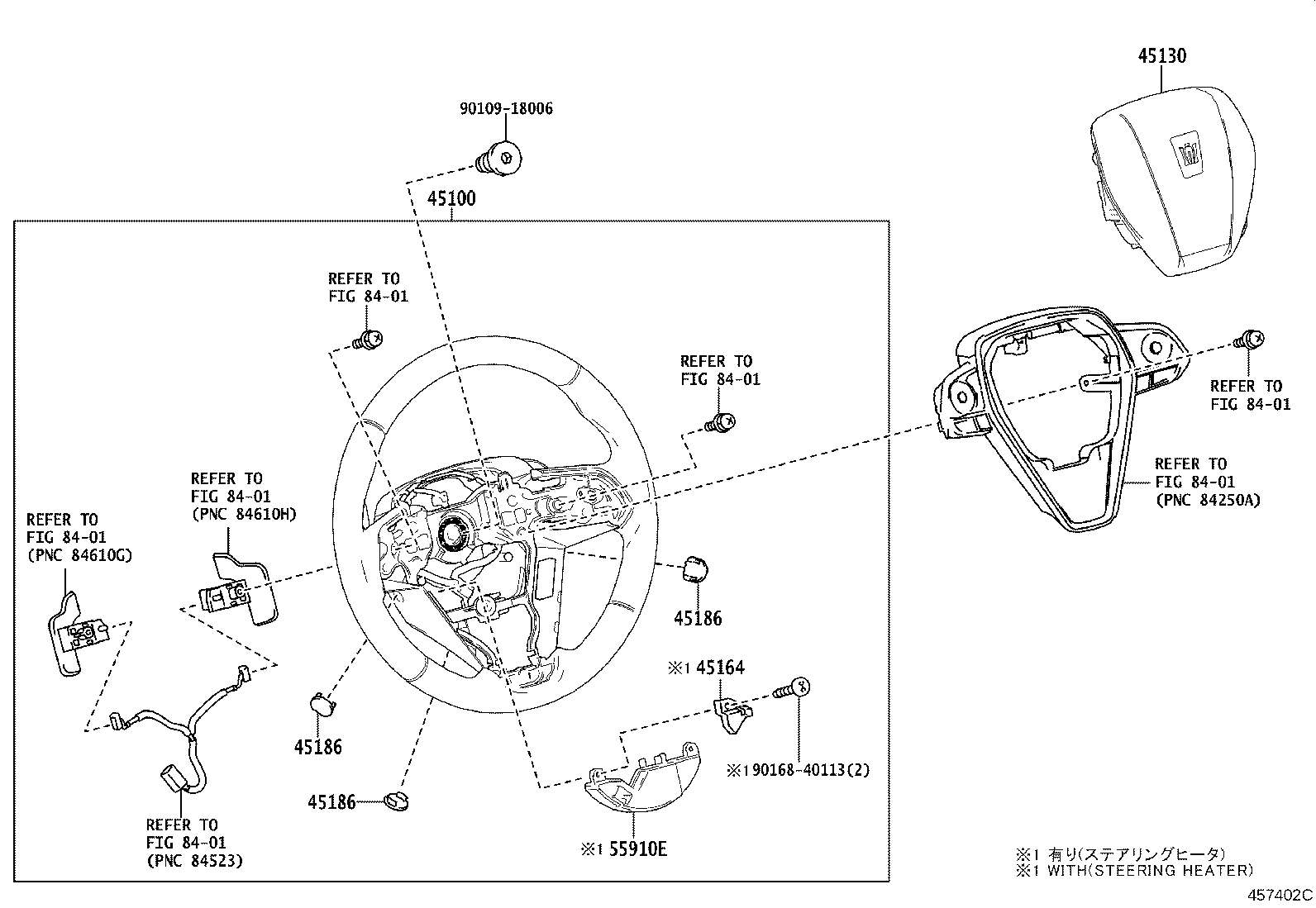

Click highlighted areas on diagram

diagram 45100 45130 45164 45186 45186 45186 55910E 8401 8401 8401 8401 8401 8401 8401 9010918006 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-30D50C6

ARS220..S

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK/BLACK,TRIM2#,4#

 1
45100-30F70C0

ARS220..RS

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/BLACK,TRIM2#,3#,4#,8#

 1
45100-30F70C0

ARS220..S

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK/BLACK,TRIM2#,3#,4#

 1
45100-30E10C0

ARS220..B

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#,3#,4#

 1
45100-30G40C0

ARS220..S

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM1#,2#,3#,4#

 1
45100-30G30C0

ARS220..RSB

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#,3#

 1
45100-30E10C0

ARS220..RSB

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#,3#

 1
45100-30G30C0

ARS220..B

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLACK,TRIM2#,3#,4#

 1
45100-30G40C0

ARS220..RS

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,BLACK,TRIM2#,3#,4#,8#

 1
45100-30D50C6

ARS220..RS

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK/BLACK,TRIM0#,2#

 1
45100-30G50C0

ARS220..RS

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,2#

 1
45100-30G50C0

ARS220..S

3本ｽﾎﾟｰｸ,ﾚｻﾞｰ,ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,4#

 1
45130 - BUTTON ASSY, HORN
45130-30780C0

ARS220,AZSH2#..S,SF

BLACK,TRIM1#,2#,3#,4#

 1
45130-30780C0

GWS224..S;ARS220,AZSH2#..B,G,GF

BLACK,TRIM2#,3#,4#

 1
45130-30780C0

ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF

BLACK,TRIM0#,2#,3#,4#,8#

 1
45130-30780C0

ARS220..RSB

BLACK,TRIM2#,3#

 1
45164 - BRACKET, STEERING WHEEL PAD, LH
45164-33030

ARS220..RS,S

ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33120C0

ARS220..RS

BLACK,TRIM2#,3#,4#,8#

 3
45186-33120C0

ARS220,AZSH2#..S,SF

BLACK,TRIM2#,3#,4#

 3
45186-33120C0

GWS224..S;ARS220,AZSH2#..B,G,GF

BLACK,TRIM2#,3#,4#

 3
45186-33120C0

ARS220,AZSH2#..S,SF

BLACK,TRIM1#,2#,3#,4#

 3
45186-33120C0

ARS220..RSB

BLACK,TRIM2#,3#

 3
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33120C0

ARS220..RS

BLACK,TRIM2#,3#,4#,8#

 3
45186-33120C0

ARS220,AZSH2#..S,SF

BLACK,TRIM2#,3#,4#

 3
45186-33120C0

GWS224..S;ARS220,AZSH2#..B,G,GF

BLACK,TRIM2#,3#,4#

 3
45186-33120C0

ARS220,AZSH2#..S,SF

BLACK,TRIM1#,2#,3#,4#

 3
45186-33120C0

ARS220..RSB

BLACK,TRIM2#,3#

 3
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33120C0

ARS220..RS

BLACK,TRIM2#,3#,4#,8#

 3
45186-33120C0

ARS220,AZSH2#..S,SF

BLACK,TRIM2#,3#,4#

 3
45186-33120C0

GWS224..S;ARS220,AZSH2#..B,G,GF

BLACK,TRIM2#,3#,4#

 3
45186-33120C0

ARS220,AZSH2#..S,SF

BLACK,TRIM1#,2#,3#,4#

 3
45186-33120C0

ARS220..RSB

BLACK,TRIM2#,3#

 3
55910E - CONTROL ASSY, STEERING WHEEL HEATER
55910-30220

ARS220..RS,S

ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ

 1
Common parts
90109-18006
90168-40113
Linked diagrams
8401
