ARS220-AEZRZ (2018)
Toyota Crown/Hybrid
(1806- )

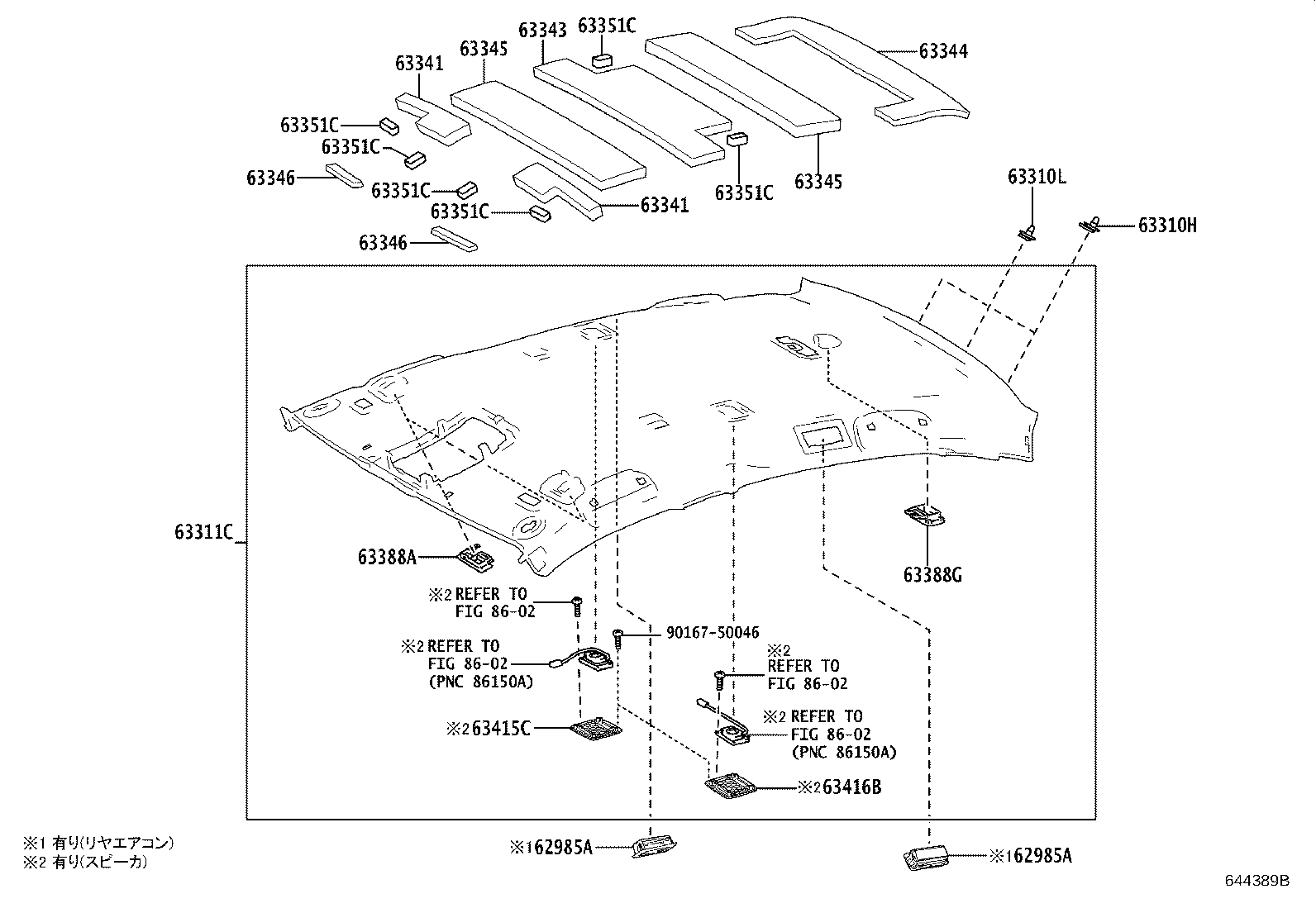

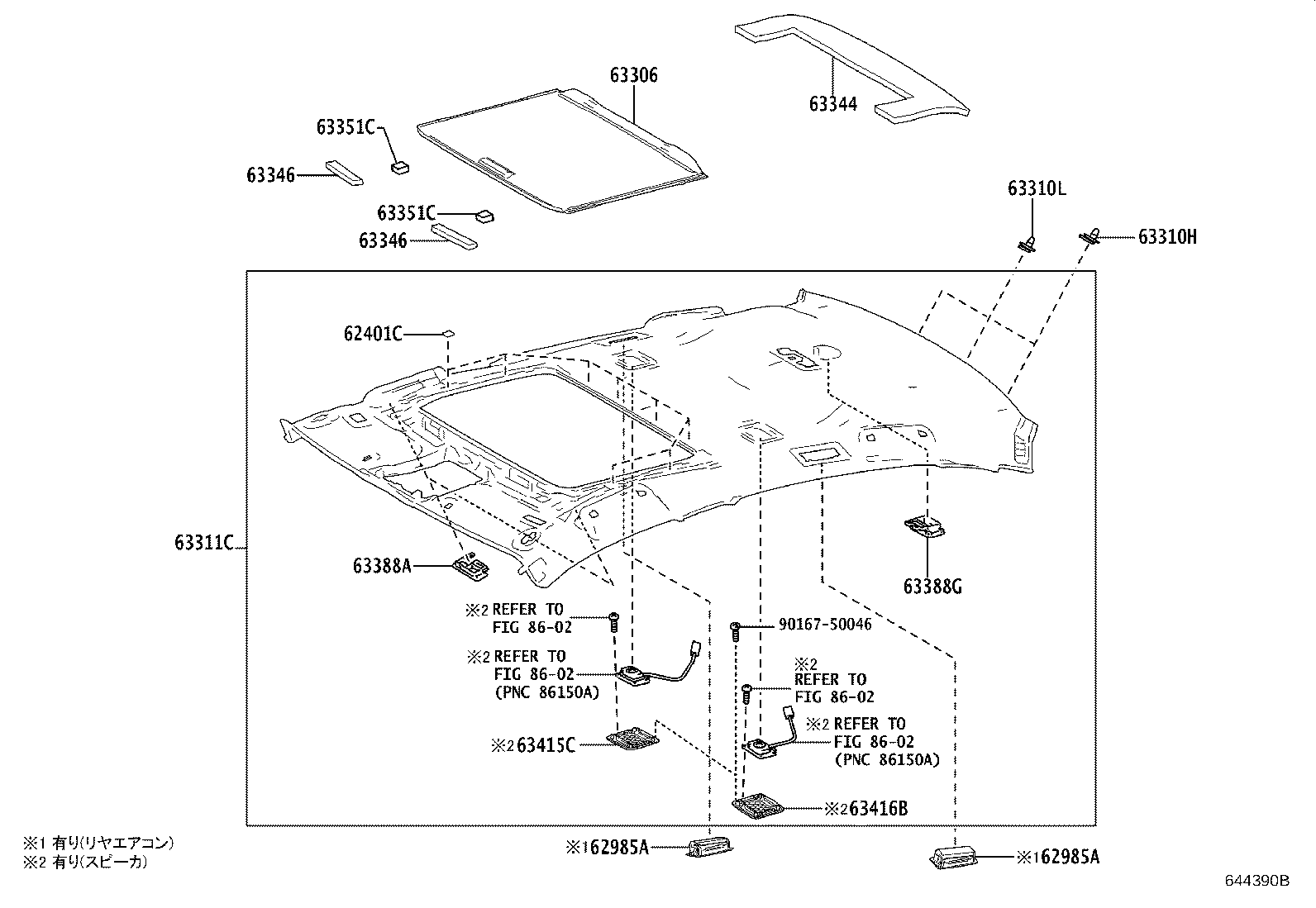

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63310L - CAP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..RS,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30K10E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30K00C0 |
ARS220..B,RSB BLACK,TRIM2#,3# |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30K00E0 |
ARS220..B NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63311-30K00C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30K20C0 |
ARS220,AZSH2#..RS,RSF ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K00C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K20C0 |
ARS220,AZSH2#..S,SF ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30K20E0 |
ARS220,AZSH2#..S,SF ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K00E0 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30K10E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..RS,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-30380 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-30380 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63343-30290 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30190 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63345 - PAD, ROOF SILENCER, NO.5 | ||||
| 63345-30190 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63388A - COVER, ROOF HEADLINING HOLDER | ||||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030E0 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030E0 |
GWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF NEUTRAL BEIGE,TRIM4# |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388G - COVER, ROOF HEADLINING HOLDER, NO.2 | ||||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050E0 |
GWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63388-30050E0 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63388-30050C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
1 | ||
| 63415C - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 90167-50046 | ||||
| Linked diagrams | ||||
| 8602 | ||||
(1806- )ARS220,GWS224 ; (1806- )AZSH2#..G,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF
ﾑｰﾝﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62401C - FASTENER, HOOK | ||||
| 90530-20022 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 90530-20022 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 90530-20022 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 90530-20022 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 90530-20022 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 90530-20022 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
8 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-30200C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63306-30200E0 |
ARS220,AZSH2#..S,SF ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63306-30200C0 |
ARS220,AZSH2#..S,SF ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63310L - CAP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..RS,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30K10E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30K00C0 |
ARS220..B,RSB BLACK,TRIM2#,3# |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30K00E0 |
ARS220..B NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63311-30K00C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30K20C0 |
ARS220,AZSH2#..RS,RSF ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K00C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K20C0 |
ARS220,AZSH2#..S,SF ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30K20E0 |
ARS220,AZSH2#..S,SF ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K00E0 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J20E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63311-30J20C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63311-30K10E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J30E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30J60E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63311-30K10C0 |
ARS220,AZSH2#..RS,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63344-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-30120 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-30140 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30100 |
ARS220,AZSH2#..RS,RSF,S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63351-30100 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 63351-30100 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
6 | ||
| 63351-30140 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り |
2 | ||
| 63388A - COVER, ROOF HEADLINING HOLDER | ||||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030E0 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030E0 |
GWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF NEUTRAL BEIGE,TRIM4# |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM2#,3#,41 |
2 | ||
| 63388-30030C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
2 | ||
| 63388G - COVER, ROOF HEADLINING HOLDER, NO.2 | ||||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63388-30050E0 |
GWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF NEUTRAL BEIGE,TRIM4# |
1 | ||
| 63388-30050E0 |
ARS220,AZSH2#..S,SF NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63388-30050C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
1 | ||
| 63415C - GRILLE, ROOF SPEAKER, RH | ||||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63415-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416B - GRILLE, ROOF SPEAKER, LH | ||||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..RS,RSF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,41 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF ﾕｰﾃｨﾘﾃｨｰﾊﾟｯｹｰｼﾞ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020E0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,NEUTRAL BEIGE,TRIM40 |
1 | ||
| 63416-30020C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| Common parts | ||||
| 90167-50046 | ||||
| Linked diagrams | ||||
| 8602 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
