ARS220-AEZRZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

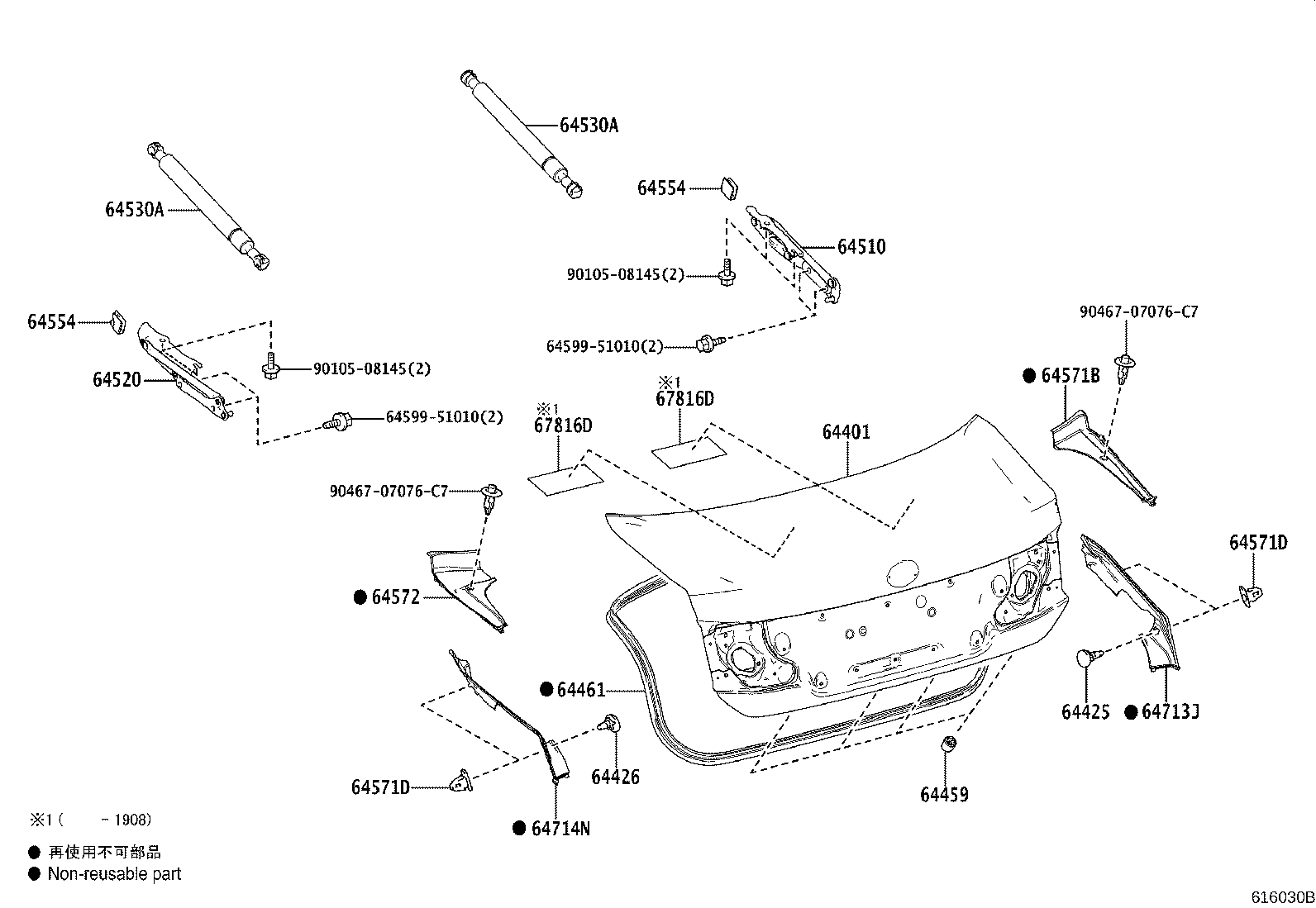

ILLUST NO. 1 OF 2(1806- )

Click highlighted areas on diagram

ﾗｹﾞｰｼﾞｺﾝﾊﾟｰﾄﾒﾝﾄﾄﾞｱﾊﾟﾈﾙ

diagram 64401 64425 64426 64459 64461 64510 64520 64530A 64530A 64554 64554 64571B 64571D 64571D 64572 6459951010 6459951010 64713J 64714N 67816D 67816D 9010508145 9010508145 9046707076C7 9046707076C7
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-30D60

ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF

 1
64401-30D50

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

 1
64425 - PLUG, LUGGAGE COMPARTMENT DOOR, RH
64425-30050

ARS220,AZSH2#,GWS224

 1
64426 - PLUG, LUGGAGE COMPARTMENT DOOR, LH
64425-30050

ARS220,AZSH2#,GWS224

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09116

ARS220,AZSH2#,GWS224

 4
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-30390

ARS220,AZSH2#,GWS224

 1
64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-30480

ARS220,AZSH2#,GWS224

 1
64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-30250

ARS220,AZSH2#,GWS224

 1
64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64530-0W230

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

 2
64530-0W240

ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF

 2
64530A - SUPPORT ASSY, LUGGAGE COMPARTMENT DOOR
64530-0W230

ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF

 2
64530-0W240

ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF

 2
64554 - STOPPER, LUGGAGE DOOR BALANCER
64554-30051

ARS220,AZSH2#,GWS224

左側

 1
64554-30041

ARS220,AZSH2#,GWS224

右側

 1
64554 - STOPPER, LUGGAGE DOOR BALANCER
64554-30051

ARS220,AZSH2#,GWS224

左側

 1
64554-30041

ARS220,AZSH2#,GWS224

右側

 1
64571B - COVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571-30210

ARS220,AZSH2#,GWS224

 1
64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
76817-26040

ARS220,AZSH2#,GWS224

 4
64571D - CLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
76817-26040

ARS220,AZSH2#,GWS224

 4
64572 - COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572-30160

ARS220,AZSH2#,GWS224

 1
64713J - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH
64713-30140

ARS220,AZSH2#,GWS224

 1
64714N - COVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH
64714-30560

ARS220,AZSH2#,GWS224

 1
67816D - SHEET, BACK DOOR PANEL SILENCER
67816-30010

ARS220,AZSH2#,GWS224

 2
67816D - SHEET, BACK DOOR PANEL SILENCER
67816-30010

ARS220,AZSH2#,GWS224

 2
Common parts
64599-51010
90105-08145
90467-07076C7

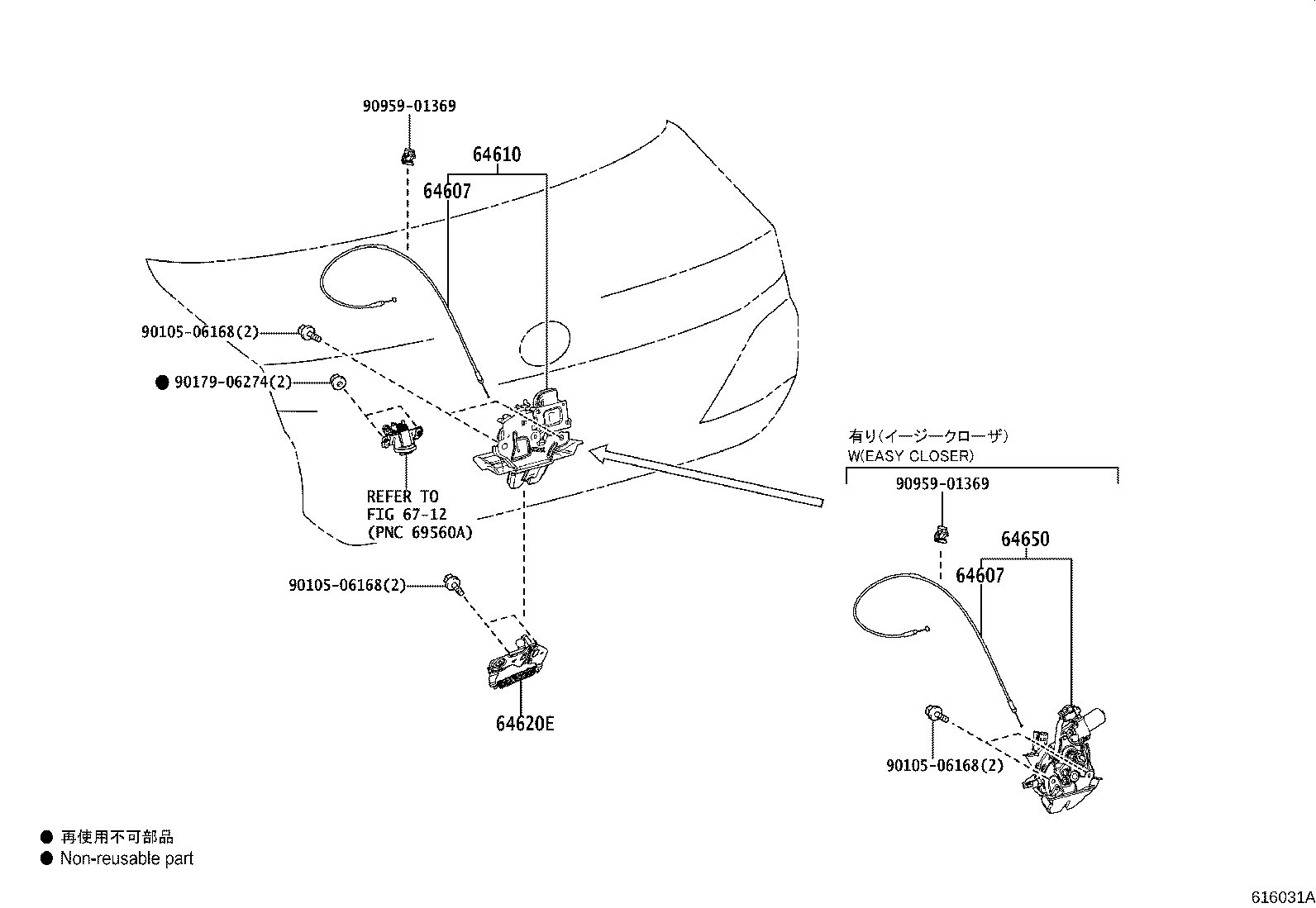

ILLUST NO. 2 OF 2(1806- )

Click highlighted areas on diagram

ﾗｹﾞｰｼﾞﾄﾞｱﾛｯｸ

diagram 64607 64607 64610 64620E 64650 6712 9010506168 9010506168 9010506168 9017906274 9095901369 9095901369
Part # Description Qty Price
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-30240

ARS220,AZSH2#..B,RS,RSB,RSF,S,SF

 1
64607-30230

ARS220,AZSH2#..S,SF

“Elegance Style”*(E)or*(F)

 1
64607-30230

ARS220,AZSH2#..RS,RSF,S,SF

“C package”2005ﾏﾙｶ

 1
64607-30230

ARS220,AZSH2#..S,SF

“Sport Style”*(S)or*(T)

 1
64607-30230

ARS220,AZSH2#..S,SF

“C package”*(C)or*(D)

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-30240

ARS220,AZSH2#..B,RS,RSB,RSF,S,SF

 1
64607-30230

ARS220,AZSH2#..S,SF

“Elegance Style”*(E)or*(F)

 1
64607-30230

ARS220,AZSH2#..RS,RSF,S,SF

“C package”2005ﾏﾙｶ

 1
64607-30230

ARS220,AZSH2#..S,SF

“Sport Style”*(S)or*(T)

 1
64607-30230

ARS220,AZSH2#..S,SF

“C package”*(C)or*(D)

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-30230

ARS220,AZSH2#..B,RS,RSB,RSF,S,SF

 1
64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64620-30150

ARS220,AZSH2#,GWS224

 1
64650 - CLOSER ASSY, LUGGAGE DOOR
64650-30120

ARS220,AZSH2#..S,SF

“Elegance Style”*(E)or*(F)

 1
64650-30120

ARS220,AZSH2#..S,SF

“Sport Style”*(S)or*(T)

 1
64650-30120

ARS220,AZSH2#..S,SF

“C package”*(C)or*(D)

 1
64650-30120

ARS220,AZSH2#..RS,RSF,S,SF

“C package”2005ﾏﾙｶ

 1
Common parts
90105-06168
90179-06274
90959-01369
Linked diagrams
6712
