Toyota Crown/hybrid ARS220 SIDE MEMBER

ARS220-AEZRZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020

Engine 8ARFTS

Transmission 8FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

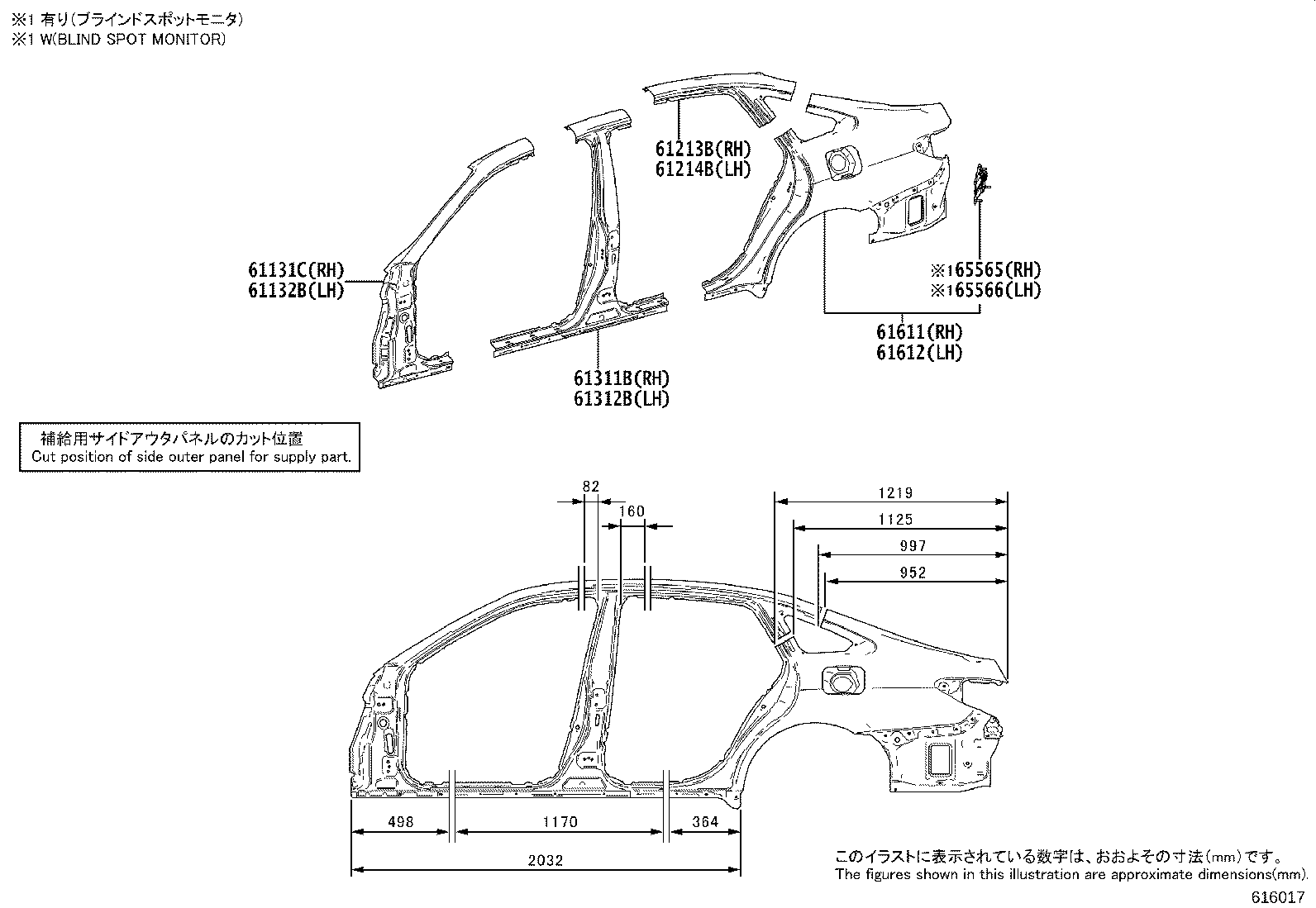

ILLUST NO. 1 OF 2(1806- )

Click highlighted areas on diagram

ｱｳﾀﾊﾟﾈﾙ

Part #	Description	Period	Qty
61131C - PILLAR, FRONT BODY, OUTER RH
61106-30230	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61132B - PILLAR, FRONT BODY, OUTER LH
61107-30210	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-30030	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-30030	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-30320	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-30420	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61611 - PANEL, QUARTER, RH
61601-30A10	ARS220,AZSH2#..S,SF “C package”(C)or(D)	06/2018 - 04/2020	1
61601-30A00	ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF	06/2018 - 10/2020	1
61601-30A10	ARS220,AZSH2#..RS,RSF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
61601-30A10	ARS220,AZSH2#..S,SF “Elegance Style”(E)or(F)	07/2019 - 10/2020	1
61601-30A10	ARS220,AZSH2#..RS,RSF ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
61601-30A10	ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ	04/2020 - 10/2020	1
61601-30A10	ARS220,AZSH2#..S,SF “Sport Style”(S)or(T)	10/2019 - 10/2020	1
61601-30A10	ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
61612 - PANEL, QUARTER, LH
61602-30A00	ARS220,AZSH2#..RS,RSF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
61602-3A390	ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF	06/2018 - 10/2020	1
61602-30A00	ARS220,AZSH2#..S,SF “C package”(C)or(D)	06/2018 - 04/2020	1
61602-30A00	ARS220,AZSH2#..RS,RSF ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
61602-30A00	ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ	04/2020 - 10/2020	1
61602-30A00	ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
61602-30A00	ARS220,AZSH2#..S,SF “Elegance Style”(E)or(F)	07/2019 - 10/2020	1
61602-30A00	ARS220,AZSH2#..S,SF “Sport Style”(S)or(T)	10/2019 - 10/2020	1
65565 - PATCH, SIDE PANEL REAR END, RH
65565-50010	ARS220,AZSH2#..S,SF “C package”(C)or(D)	06/2018 - 04/2020	1
65565-50010	ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
65565-50010	ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ	04/2020 - 10/2020	1
65565-50010	ARS220,AZSH2#..S,SF “Elegance Style”(E)or(F)	07/2019 - 10/2020	1
65565-50010	ARS220,AZSH2#..S,SF “Sport Style”(S)or(T)	10/2019 - 10/2020	1
65565-50010	ARS220,AZSH2#..RS,RSF ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
65565-50010	ARS220,AZSH2#..RS,RSF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
65566 - PATCH, SIDE PANEL REAR END, LH
65565-50010	ARS220,AZSH2#..S,SF “Elegance Style”(E)or(F)	07/2019 - 10/2020	1
65565-50010	ARS220,AZSH2#..RS,RSF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ&ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
65565-50010	ARS220,AZSH2#..S,SF “C package”(C)or(D)	06/2018 - 04/2020	1
65565-50010	ARS220,AZSH2#..S,SF “Sport Style”(S)or(T)	10/2019 - 10/2020	1
65565-50010	ARS220,AZSH2#..RS,RSF ｼﾞｬﾊﾟﾝｶﾗｰｾﾚｸｼｮﾝﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1
65565-50010	ARS220,AZSH2#..RS,RSF,S,SF “C package”2005ﾏﾙｶ	04/2020 - 10/2020	1
65565-50010	ARS220,AZSH2#,GWS224..B,RS,RSB,RSF,S,SF ﾄﾞﾗｲﾊﾞｰｻﾎﾟｰﾄﾊﾟｯｹｰｼﾞ	06/2018 - 10/2020	1

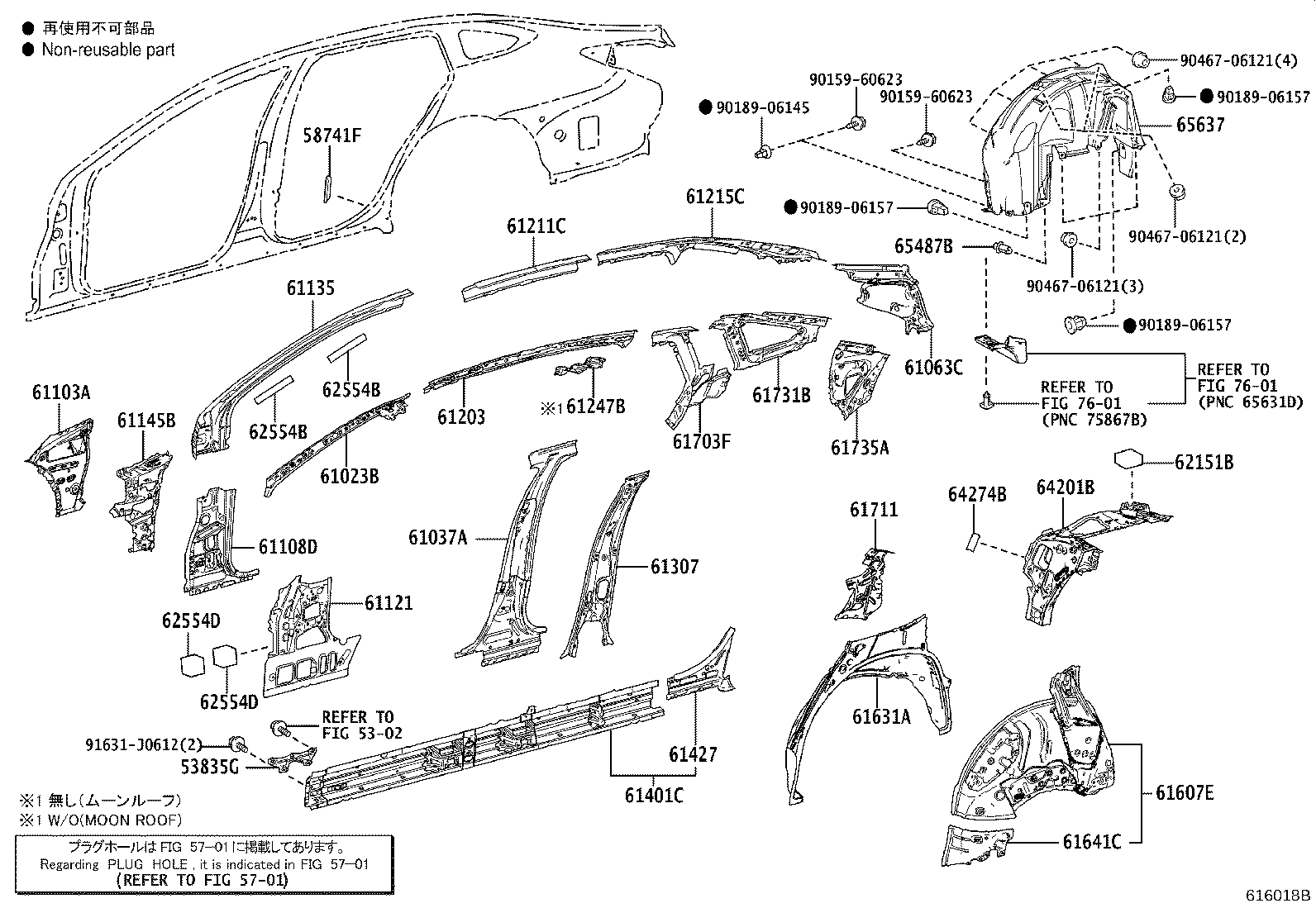

ILLUST NO. 2 OF 2(1806- )

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ,RH

Part #	Description	Period	Qty
53835G - BRACKET, FRONT SIDE PANEL, RH
53835-30160	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
58741F - PROTECTOR, REAR WHEEL EXTENSION, RH
58741-30040	ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 寒冷地仕様	06/2018 - 10/2020	1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-30100	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-30140	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61063C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61063-30100	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH
61103-30110	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61108-30110	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61121 - PANEL, COWL SIDE, OUTER RH
61121-30190	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH
61135-30260	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61145B - GUSSET, FRONT BODY PILLAR, LOWER RH
61015-30100	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-30140	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61211C - RAIL, ROOF SIDE, RH
61211-30340	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61215C - RAIL, ROOF SIDE, OUTER REAR RH
61215-30070	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH
61247-30030	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-30080	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61401C - PANEL SUB-ASSY, ROCKER, OUTER RH
61401-30905	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH
61427-30150	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-30906	ARS220,AZSH2#,GWS224	01/2020 - 10/2020	1
61607-30905	ARS220,AZSH2#,GWS224	06/2018 - 12/2019	1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-30260	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH
61641-30070	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61703F - PANEL SUB-ASSY, QUARTER, INNER FRONT RH
61703-30916	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-30200	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61731B - PANEL, ROOF SIDE, INNER RH
61731-30290	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-30150	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
62151B - PAD, COWL SIDE SILENCER
62151-30090	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
62554B - PAD, PILLAR, NO.4
62554-50080	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
62554B - PAD, PILLAR, NO.4
62554-50080	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
62554D - PAD, FRONT PILLER
62554-30010	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	4
62554D - PAD, FRONT PILLER
62554-30010	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	4
64201B - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
64201-30280	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
64274B - PAD, ROOM PARTITION, NO.2
64274-30220	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
65487B - CLIP, CORNER PROTECTOR
65487-53020	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
65637 - LINER, REAR WHEEL HOUSE, RH
65637-30170	ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF	06/2018 - 10/2020	1
Common parts
90159-60623
90189-06145
90189-06157
90467-06121
91631-J0612
Linked diagrams
5302
5701
7601

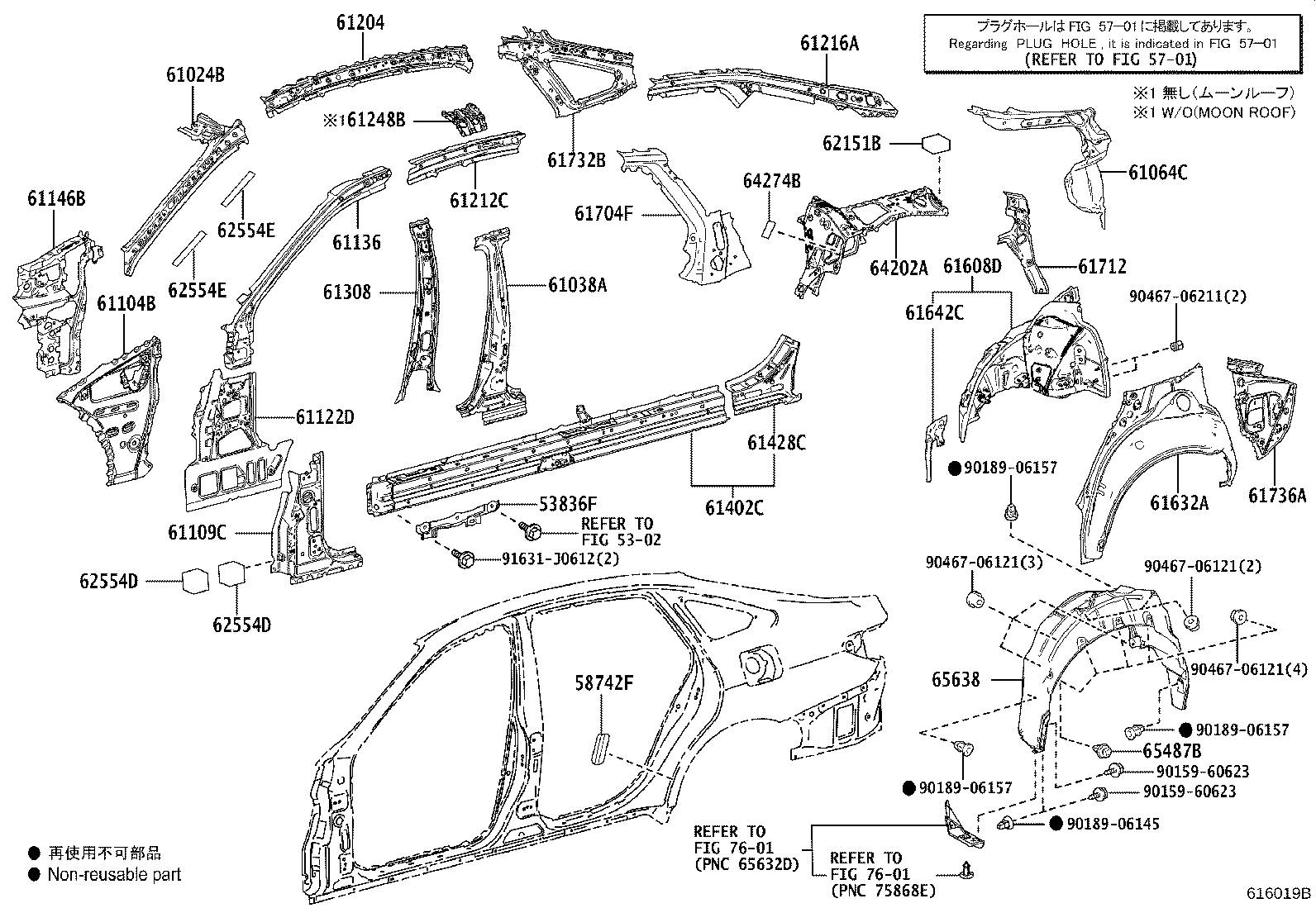

ILLUST NO. 2 OF 2(1806- )

Click highlighted areas on diagram

ｲﾝﾅﾊﾟﾈﾙ,LH

Part #	Description	Period	Qty
53836F - BRACKET, FRONT SIDE PANEL, LH
53836-30110	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
58742F - PROTECTOR, REAR WHEEL EXTENSION, LH
58742-30040	ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF 寒冷地仕様	06/2018 - 10/2020	1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-30100	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-30140	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61064C - TROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH
61064-30080	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH
61104-30100	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61109-30110	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61122D - PANEL, COWL SIDE, LH
61122-30200	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH
61136-30260	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61146B - GUSSET, FRONT BODY PILLAR, LOWER LH
61016-30100	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-30160	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61212C - RAIL, ROOF SIDE, LH
61212-30340	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61216A - RAIL, ROOF SIDE, OUTER REAR LH
61216-30070	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH
61248-30030	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-30080	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61402C - PANEL SUB-ASSY, ROCKER, OUTER LH
61402-30905	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH
61428-30200	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-30906	ARS220,AZSH2#,GWS224	01/2020 - 10/2020	1
61608-30905	ARS220,AZSH2#,GWS224	06/2018 - 12/2019	1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-30270	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH
61642-30070	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61704F - PANEL SUB-ASSY, QUARTER, INNER FRONT LH
61704-30914	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-30200	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61732B - PANEL, ROOF SIDE, INNER LH
61732-30300	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-30150	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
62151B - PAD, COWL SIDE SILENCER
62151-30090	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
62554D - PAD, FRONT PILLER
62554-30010	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	4
62554D - PAD, FRONT PILLER
62554-30010	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	4
62554E - PAD, PILLAR, NO.4
62554-50080	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
62554E - PAD, PILLAR, NO.4
62554-50080	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH
64202-30270	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	1
64274B - PAD, ROOM PARTITION, NO.2
64274-30220	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
65487B - CLIP, CORNER PROTECTOR
65487-53020	ARS220,AZSH2#,GWS224	06/2018 - 10/2020	2
65638 - LINER, REAR WHEEL HOUSE, LH
65638-30170	ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF	06/2018 - 10/2020	1
Common parts
90159-60623
90189-06145
90189-06157
90467-06121
90467-06211
91631-J0612
Linked diagrams
5302
5701
7601
