ARS220-AEZRZ (2018)
Toyota Crown/Hybrid
(1806- )B,G,GEXEC,GEXEF,GF,S,SF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

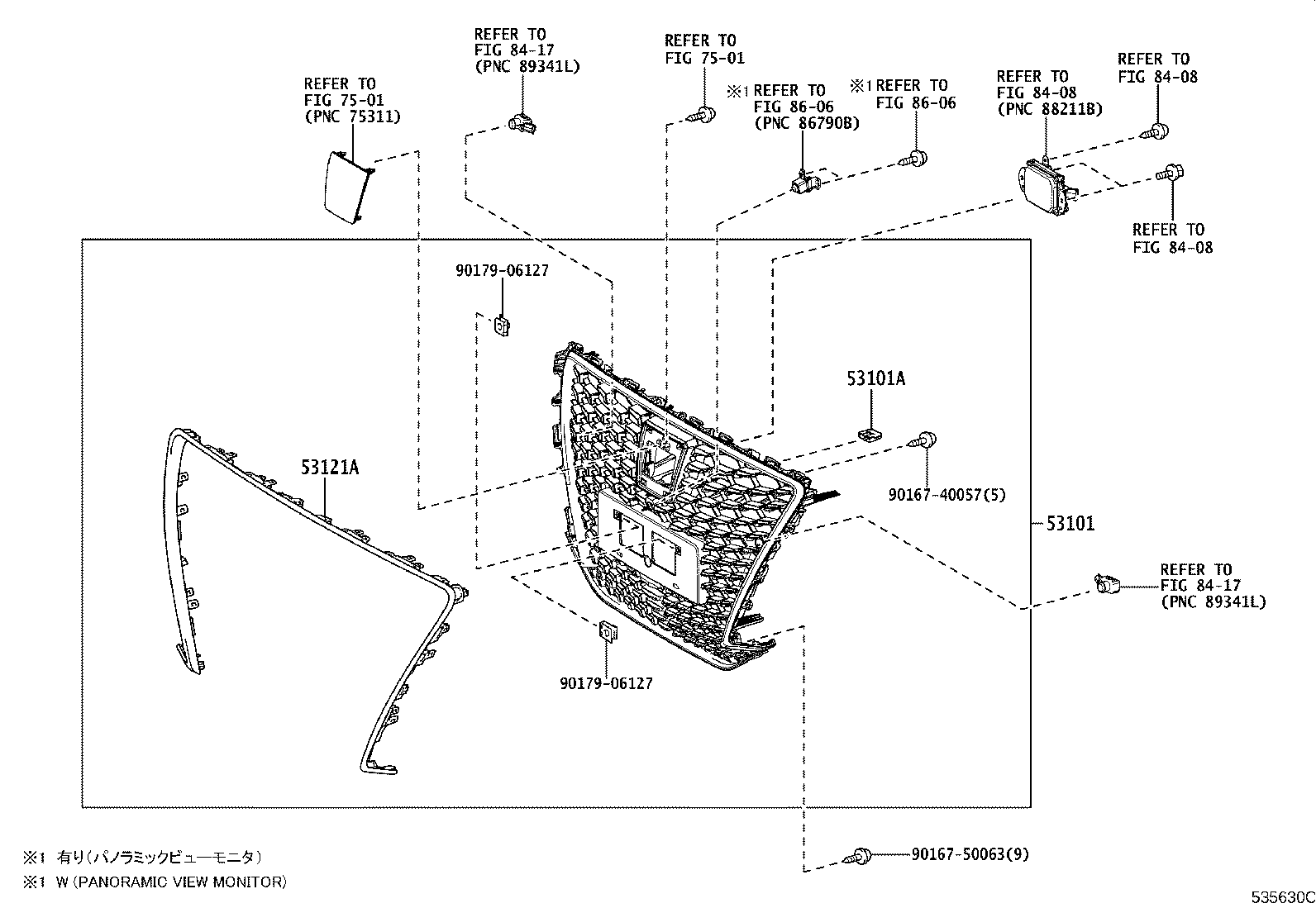

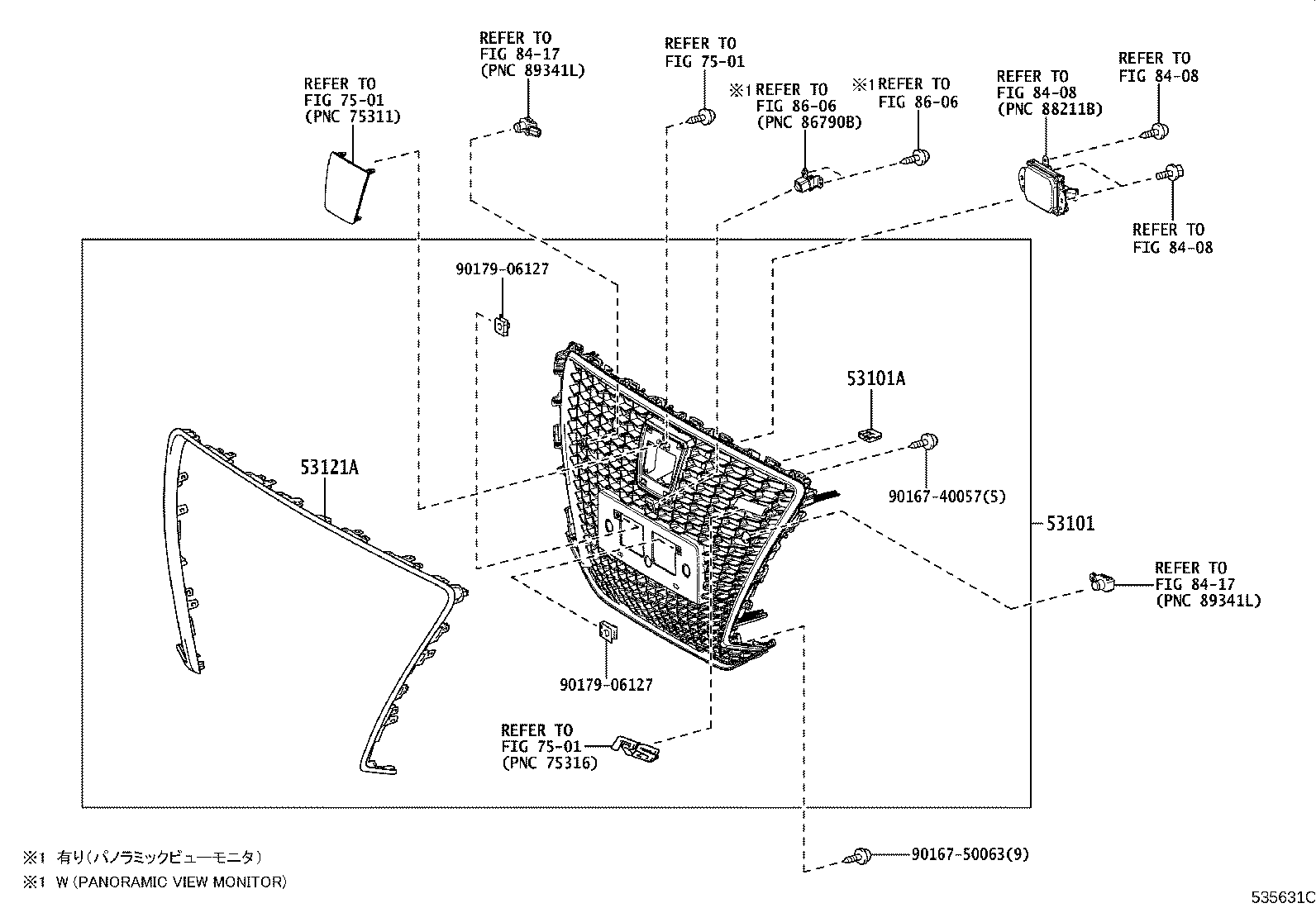

| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-30C40 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾒｯｷ |
1 | ||
| 53101-30D10 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 53101-30C50 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 53101-30B60 |
ARS220,AZSH2#..S,SF ﾒｯｷ,“Sport Style”*(S)or*(T) |
1 | ||
| 53101-30D00 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF 塗装不要 |
1 | ||
| 53101-30D60 |
ARS220,AZSH2#..S,SF ﾒｯｷ,“Sport Style”*(S)or*(T)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVl&*IPA&*ICS) |
1 | ||
| 53101A - CLIP, RADIATOR GRILLE | ||||
| 90467-08229 |
ARS220,AZSH2#,GWS224 |
23 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-30300 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53121-30340 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 53121-30340 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T) |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
| 8417 | ||||
| 8606 | ||||
(1806- )RS,RSADF,RSADV,RSB,RSF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-30C40 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾒｯｷ |
1 | ||
| 53101-30D10 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 53101-30C50 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF ﾒｯｷ,ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 53101-30B60 |
ARS220,AZSH2#..S,SF ﾒｯｷ,“Sport Style”*(S)or*(T) |
1 | ||
| 53101-30D00 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF 塗装不要 |
1 | ||
| 53101-30D60 |
ARS220,AZSH2#..S,SF ﾒｯｷ,“Sport Style”*(S)or*(T)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVl&*IPA&*ICS) |
1 | ||
| 53101A - CLIP, RADIATOR GRILLE | ||||
| 90467-08229 |
ARS220,AZSH2#,GWS224 |
23 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-30300 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53121-30340 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T)&ﾊﾞｯｸﾓﾆﾀ−有り(*PVM&*IPA&*ICS) |
1 | ||
| 53121-30340 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T) |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
| 8417 | ||||
| 8606 | ||||
